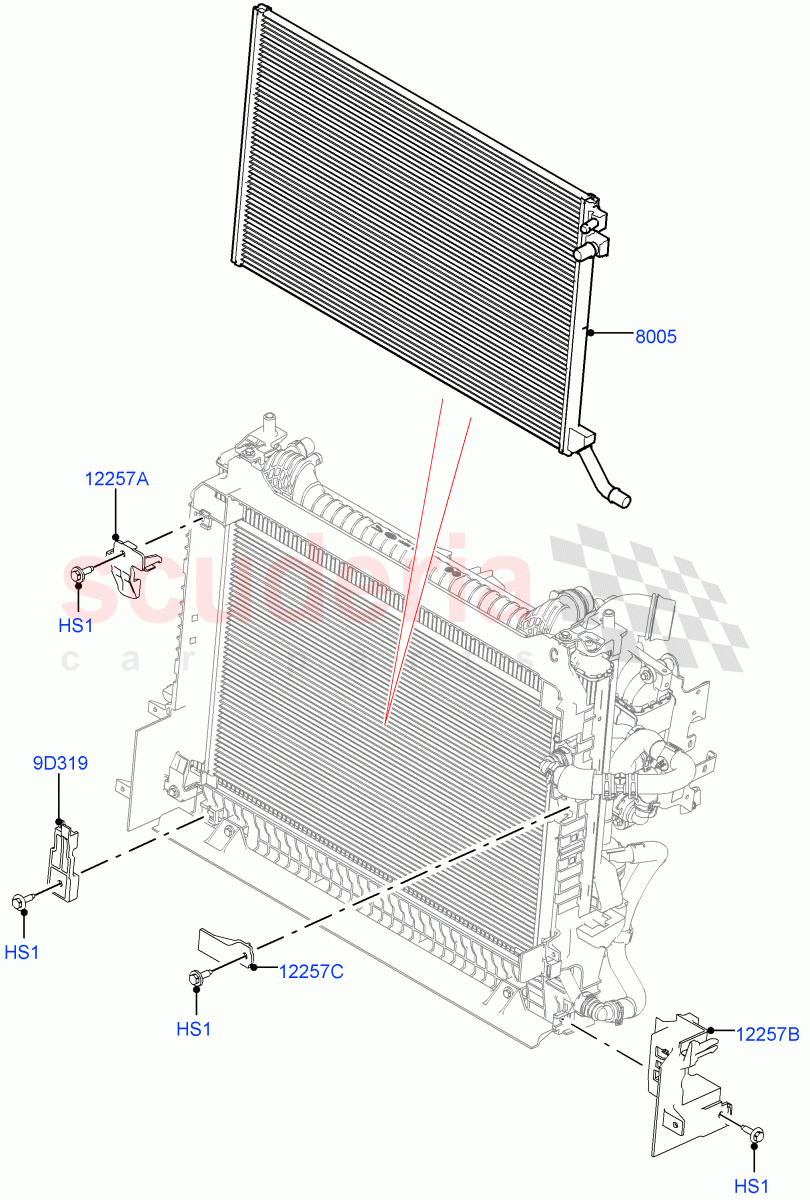

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR090381	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092812	RADIATOR - WATER CHARGE AIR COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092456	BRACKET - CONDENSER SUPPORT	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HS1	LR090381	SCREW AND WASHER	LR090381 SCREW AND WASHER Hexagonal Head, M6 X 20MM	-	4	Enquire
9D319	LR092464	BRACKET - CONDENSER SUPPORT	LR092464 BRACKET - CONDENSER SUPPORT RH Lower / To: LA243347	-	1	Enquire
9D319	LR130628	BRACKET - CONDENSER SUPPORT	LR130628 BRACKET - CONDENSER SUPPORT RH Lower / From: LA243348	-	1	Enquire
8005	LR092812	RADIATOR - WATER CHARGE AIR COOLER	LR092812 RADIATOR - WATER CHARGE AIR COOLER Water Charge Air Cooler	-	1	Enquire
12257A	LR092457	BRACKET - CONDENSER SUPPORT	LR092457 BRACKET - CONDENSER SUPPORT RH Upper / To: LA238015	-	1	Enquire
12257A	LR128698	BRACKET - CONDENSER SUPPORT	LR128698 BRACKET - CONDENSER SUPPORT RH Upper / From: LA238016	-	1	Enquire
12257B	LR092456	BRACKET - CONDENSER SUPPORT	LR092456 BRACKET - CONDENSER SUPPORT LH Lower	-	1	Enquire
12257C	LR092459	BRACKET - CONDENSER SUPPORT	LR092459 BRACKET - CONDENSER SUPPORT LH Upper / To: LA238015	-	1	Enquire
12257C	LR128701	BRACKET - CONDENSER SUPPORT	LR128701 BRACKET - CONDENSER SUPPORT LH Upper / From: LA238016	-	1	Enquire
