Name: Cooling System Pipes And Hoses (3.0L DOHC GDI SC V6 PETROL, Active Tranmission Warming) ((V) FROMKA000001)
Rating: 4.8 (1 reviews)

Cooling System Pipes And Hoses (3.0L DOHC GDI SC V6 PETROL, Active Tranmission Warming) ((V) FROMKA000001) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Cooling System Pipes And Hoses (3.0L DOHC GDI SC V6 PETROL, Active Tranmission Warming) ((V)...

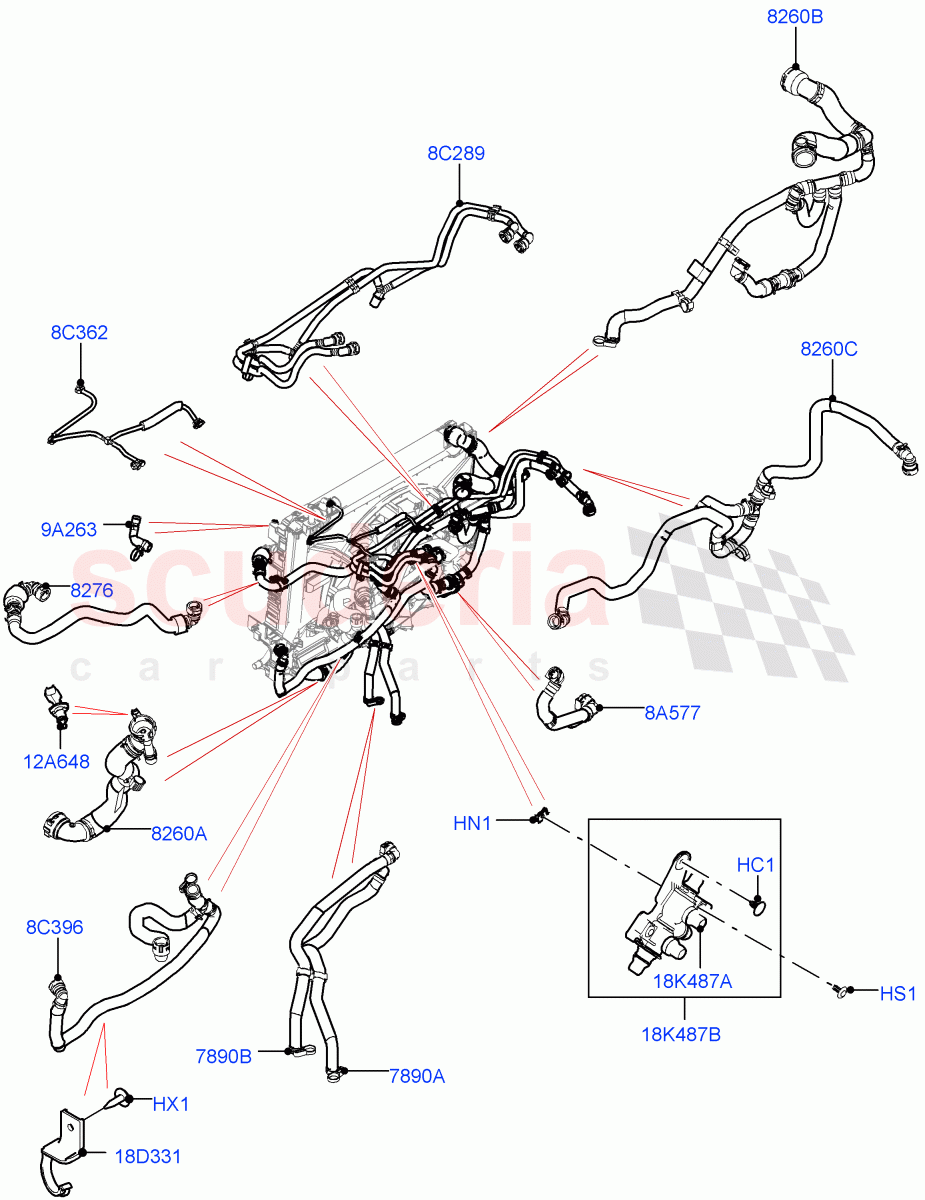

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BTR2985	CLIP	$1.11	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AYH100790	NUT - SPECIAL	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR091825	HOSE - WATER	$84.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112191	HOSE - OIL COOLER	$40.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091627	HOSE - HEATER WATER	$62.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091661	HOSE - RADIATOR	$62.06	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112850	HOSE - RADIATOR	$168.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112858	HOSE	$128.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112192	HOSE - COOLING SYSTEM	$45.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091810	HOSE - RADIATOR	$98.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091813	HOSE - RADIATOR VENTILATION	$34.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112851	HOSE - HEATER WATER	$103.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091900	HOSE - RADIATOR VENTILATION	$58.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	$47.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141291	BRACKET	$4.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129397	VALVE - COOLANT FLOW CONTROL	$131.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112135	VALVE - COOLANT FLOW CONTROL	$123.60	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	BTR2985	CLIP IN STOCK	BTR2985 CLIP 6.5 x 6, Push Pin / From: KA000001 IN STOCK	$1.11	1
HN1	AYH100790	NUT - SPECIAL	AYH100790 NUT - SPECIAL M6 X 0.5-4, Nut "U" Spring / From: KA000001	$1.19	1
HS1	RYG501590	SCREW	RYG501590 SCREW Hexagonal Head, M6 X 20MM / From: KA000001	$0.96	1
HX1	RYQ500070	PIN - RETAINING IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM, Bracket, Push Pin IN STOCK	$1.45	1
8A577	LR112192	HOSE - COOLING SYSTEM	LR112192 HOSE - COOLING SYSTEM Valve To Low Temperature Radiator / From: KA000001	$45.49	1
8C289	LR091810	HOSE - RADIATOR	LR091810 HOSE - RADIATOR Intercooler / From: KA000001	$98.00	1
8C362	LR091813	HOSE - RADIATOR VENTILATION	LR091813 HOSE - RADIATOR VENTILATION To Expansion Tank / From: KA000001	$34.05	1
8C396	LR112851	HOSE - HEATER WATER	LR112851 HOSE - HEATER WATER Inlet, Water Pump / From: KA000001	$103.23	1
9A263	LR091900	HOSE - RADIATOR VENTILATION	LR091900 HOSE - RADIATOR VENTILATION With Bleed Hose / From: KA000001	$58.43	1
12A648	LR041442	SENSOR - ENGINE COOLANT TEMPERATURE	LR041442 SENSOR - ENGINE COOLANT TEMPERATURE From: KA000001	$47.02	1
18D331	LR141291	BRACKET	LR141291 BRACKET From: KA000001	$4.13	1
18K487A	LR129397	VALVE - COOLANT FLOW CONTROL	LR129397 VALVE - COOLANT FLOW CONTROL 5 Way / From: KA000001	$131.72	1
18K487B	LR112135	VALVE - COOLANT FLOW CONTROL	LR112135 VALVE - COOLANT FLOW CONTROL Assembly / From: KA000001	$123.60	1
7890A	LR112191	HOSE - OIL COOLER	LR112191 HOSE - OIL COOLER From: KA000001	$40.09	1
7890B	LR091627	HOSE - HEATER WATER	LR091627 HOSE - HEATER WATER From: KA000001	$62.62	1
8260A	LR091661	HOSE - RADIATOR	LR091661 HOSE - RADIATOR Lower, Radiator / From: KA000001	$62.06	1
8260B	LR112850	HOSE - RADIATOR	LR112850 HOSE - RADIATOR Radiator, Upper / From: KA000001	$168.19	1
8260C	LR112858	HOSE	LR112858 HOSE Water Charge Air Cooler / From: KA000001	$128.71	1
8276	LR091825	HOSE - WATER	LR091825 HOSE - WATER Intercooler Outlet / From: KA000001	$84.97	1
