Name: Cooling System Pipes And Hoses (3.0L DOHC GDI SC V6 PETROL, With Standard Engine Cooling System, Less Active Tranmission Warming)
Rating: 5.0 (1 reviews)

Cooling System Pipes And Hoses (3.0L DOHC GDI SC V6 PETROL, With Standard Engine Cooling System, Less Active Tranmission Warming) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Cooling System Pipes And Hoses (3.0L DOHC GDI SC V6 PETROL, With Standard Engine Cooling System,...

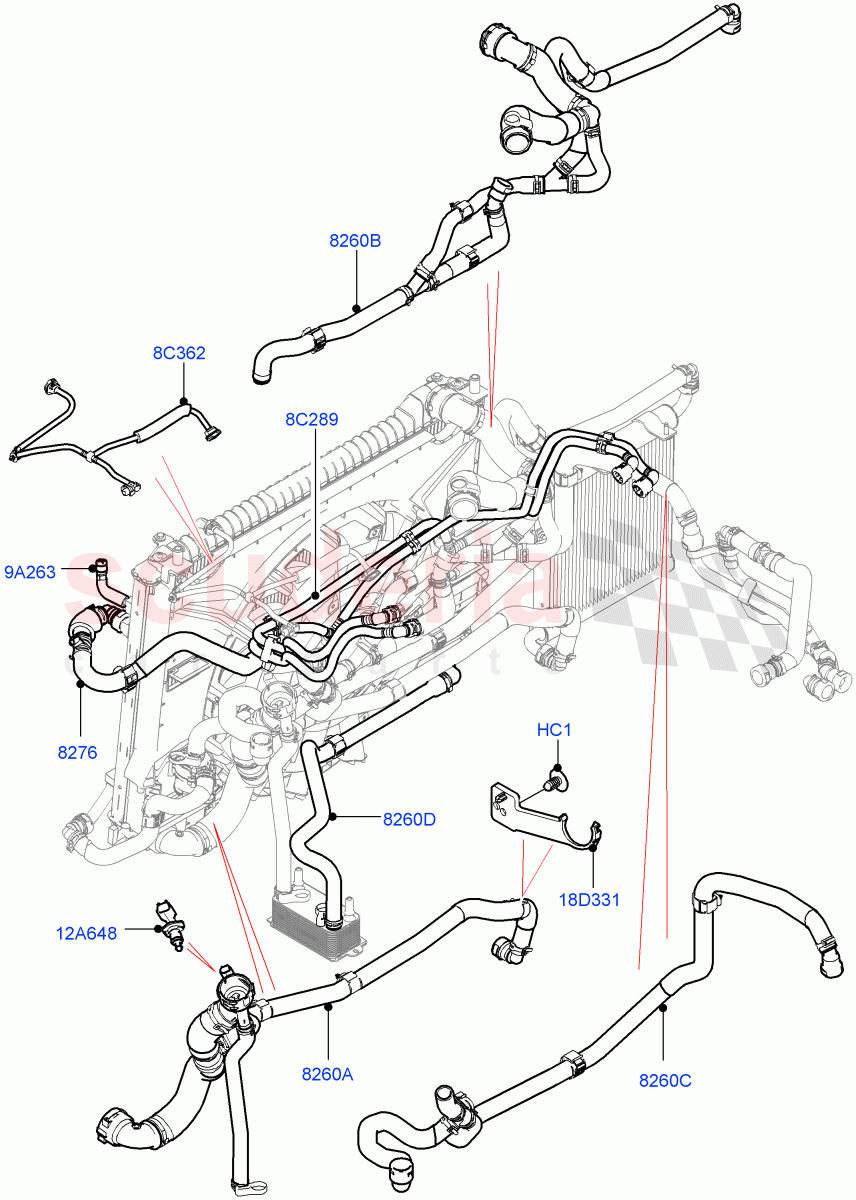

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BTR2985	CLIP	$1.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091825	HOSE - WATER	$84.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091656	HOSE - RADIATOR	$160.81	To Order
	LR113369	HOSE - RADIATOR	$160.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091639	HOSE - RADIATOR	$161.62	To Order
	LR110240	HOSE - RADIATOR	$151.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091877	HOSE - WATER	$89.43	To Order
	LR110260	HOSE - WATER	$126.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091522	HOSE - COOLING SYSTEM	$24.26	To Order
	LR110238	HOSE - COOLING SYSTEM	$24.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091810	HOSE - RADIATOR	$98.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091813	HOSE - RADIATOR VENTILATION	$34.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091900	HOSE - RADIATOR VENTILATION	$58.43	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	$57.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR112656	BRACKET - COOLING HOSE	$20.34	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	BTR2985	CLIP	BTR2985 CLIP 6.5 x 6, Push Pin	$1.11	1
8C289	LR091810	HOSE - RADIATOR	LR091810 HOSE - RADIATOR Intercooler	$98.00	1
8C362	LR091813	HOSE - RADIATOR VENTILATION	LR091813 HOSE - RADIATOR VENTILATION To Expansion Tank	$34.05	1
9A263	LR091900	HOSE - RADIATOR VENTILATION	LR091900 HOSE - RADIATOR VENTILATION With Bleed Hose	$58.43	1
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE	$57.30	1
18D331	LR112656	BRACKET - COOLING HOSE	LR112656 BRACKET - COOLING HOSE	$20.34	1
8260A	LR091656	HOSE - RADIATOR	LR091656 HOSE - RADIATOR Lower, Radiator / To: KA778648	$160.81	1
8260A	LR113369	HOSE - RADIATOR	LR113369 HOSE - RADIATOR Lower, Radiator / From: KA778649	$160.49	1
8260B	LR091639	HOSE - RADIATOR	LR091639 HOSE - RADIATOR Radiator, Upper / To: KA778700	$161.62	1
8260B	LR110240	HOSE - RADIATOR	LR110240 HOSE - RADIATOR Radiator, Upper / From: KA778701	$151.15	1
8260C	LR091877	HOSE - WATER	LR091877 HOSE - WATER Water Charge Air Cooler / To: KA778648	$89.43	1
8260C	LR110260	HOSE - WATER	LR110260 HOSE - WATER Water Charge Air Cooler / From: KA778649	$126.10	1
8260D	LR091522	HOSE - COOLING SYSTEM	LR091522 HOSE - COOLING SYSTEM From Transmission Oil Cooler To Radiator / To: KA778648	$24.26	1
8260D	LR110238	HOSE - COOLING SYSTEM	LR110238 HOSE - COOLING SYSTEM From Transmission Oil Cooler To Radiator / From: KA778649	$24.26	1
8276	LR091825	HOSE - WATER	LR091825 HOSE - WATER Intercooler Outlet	$84.97	1
