Name: Cooling System Pipes And Hoses (3.0L DOHC GDI SC V6 PETROL, Electric Auxiliary Coolant Pump, Less Engine Cooling System) ((V) TOJA999999)
Rating: 5.0 (1 reviews)

Cooling System Pipes And Hoses (3.0L DOHC GDI SC V6 PETROL, Electric Auxiliary Coolant Pump, Less Engine Cooling System) ((V) TOJA999999) of Land Rover Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol]

View All

Land Rover Range Rover Velar (2017+) [3.0 DOHC GDI SC V6 Petrol] - Cooling System Pipes And Hoses (3.0L DOHC GDI SC V6 PETROL, Electric Auxiliary Coolant Pump, Less...

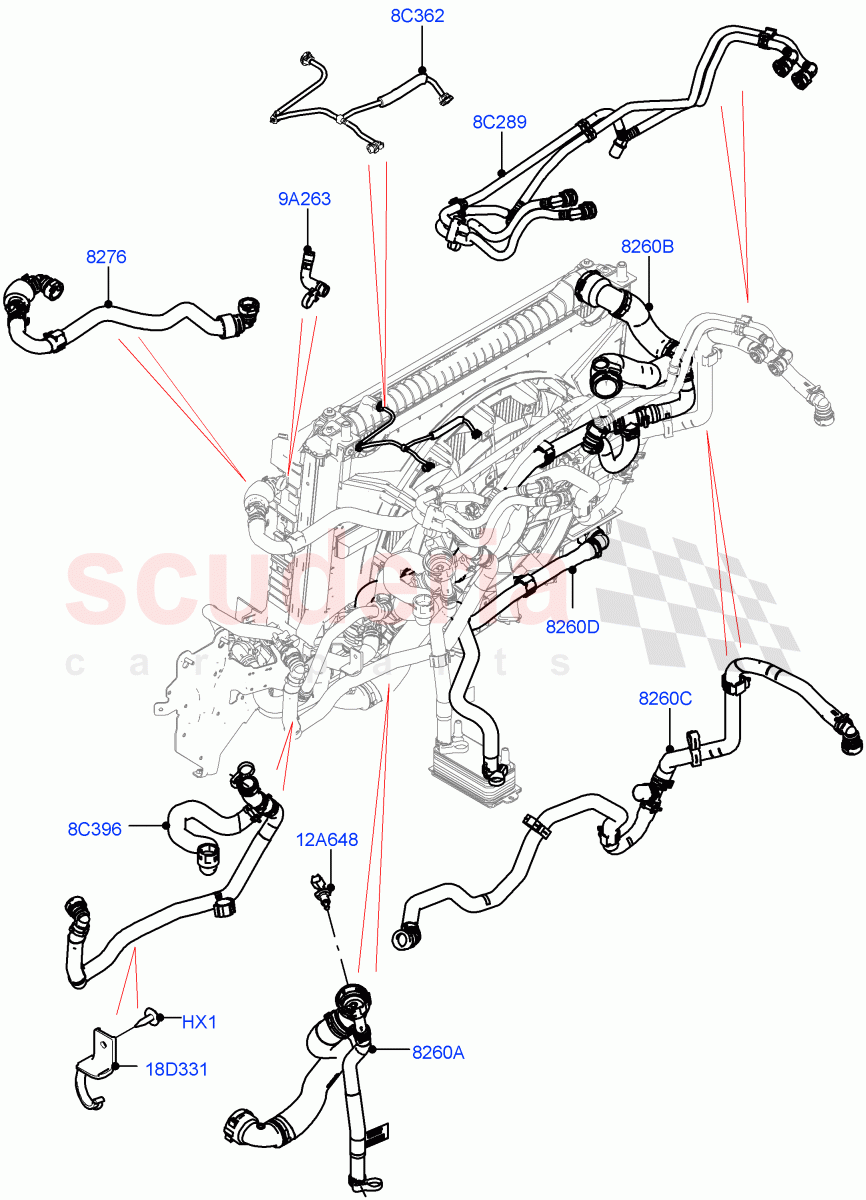

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYQ500070	PIN - RETAINING	$1.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR091825	HOSE - WATER	$84.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113368	HOSE - RADIATOR	$94.30	To Order
	LR113368	HOSE - RADIATOR	$94.30	To Order
	LR113368	HOSE - RADIATOR	$94.30	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091641	HOSE - RADIATOR	$120.34	To Order
	LR115115	HOSE - RADIATOR	$129.33	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091885	HOSE - WATER	$100.38	To Order
	LR115116	HOSE - WATER	$99.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091522	HOSE - COOLING SYSTEM	$24.26	To Order
	LR110238	HOSE - COOLING SYSTEM	$24.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091810	HOSE - RADIATOR	$98.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091813	HOSE - RADIATOR VENTILATION	$34.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091779	HOSE - HEATER WATER	$86.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091900	HOSE - RADIATOR VENTILATION	$58.43	To Order

Photo	Part No	Description	Price (each)	Stock
	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	$57.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR141291	BRACKET	$4.13	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HX1	RYQ500070	PIN - RETAINING IN STOCK	RYQ500070 PIN - RETAINING 6.3 X 22MM, Bracket, Push Pin IN STOCK	$1.45	1
8C289	LR091810	HOSE - RADIATOR	LR091810 HOSE - RADIATOR Intercooler	$98.00	1
8C362	LR091813	HOSE - RADIATOR VENTILATION	LR091813 HOSE - RADIATOR VENTILATION To Expansion Tank	$34.05	1
8C396	LR091779	HOSE - HEATER WATER	LR091779 HOSE - HEATER WATER Thermostat To Auxliary Water Pump	$86.12	1
9A263	LR091900	HOSE - RADIATOR VENTILATION	LR091900 HOSE - RADIATOR VENTILATION With Bleed Hose	$58.43	1
12A648	4346360	SENSOR - ENGINE COOLANT TEMPERATURE	4346360 SENSOR - ENGINE COOLANT TEMPERATURE	$57.30	1
18D331	LR141291	BRACKET	LR141291 BRACKET	$4.13	1
8260A	LR113368	HOSE - RADIATOR	LR113368 HOSE - RADIATOR Lower, Radiator / To: JA999999	$94.30	1
8260A	LR113368	HOSE - RADIATOR	LR113368 HOSE - RADIATOR Lower, Radiator / From: KA700000 / To: KA799999	$94.30	1
8260A	LR113368	HOSE - RADIATOR	LR113368 HOSE - RADIATOR Lower, Radiator / From: KA200000 / To: KA236786	$94.30	1
8260A	LR122806	HOSE - RADIATOR	LR122806 HOSE - RADIATOR Lower, Radiator / From: KA236787 / To: KA299999	$99.54	1
8260A	LR122806	HOSE - RADIATOR	LR122806 HOSE - RADIATOR Lower, Radiator / From: LA000001	$99.54	1
8260B	LR091641	HOSE - RADIATOR	LR091641 HOSE - RADIATOR Radiator, Upper / To: JA738802	$120.34	1
8260B	LR115115	HOSE - RADIATOR	LR115115 HOSE - RADIATOR Radiator, Upper / From: JA738803	$129.33	1
8260C	LR091885	HOSE - WATER	LR091885 HOSE - WATER Water Charge Air Cooler / To: JA778426	$100.38	1
8260C	LR115116	HOSE - WATER	LR115116 HOSE - WATER Water Charge Air Cooler / From: JA778427	$99.25	1
8260D	LR091522	HOSE - COOLING SYSTEM	LR091522 HOSE - COOLING SYSTEM From Transmission Oil Cooler To Radiator / To: KA778648	$24.26	1
8260D	LR110238	HOSE - COOLING SYSTEM	LR110238 HOSE - COOLING SYSTEM From Transmission Oil Cooler To Radiator / From: KA778649	$24.26	1
8276	LR091825	HOSE - WATER	LR091825 HOSE - WATER Intercooler Outlet	$84.97	1
