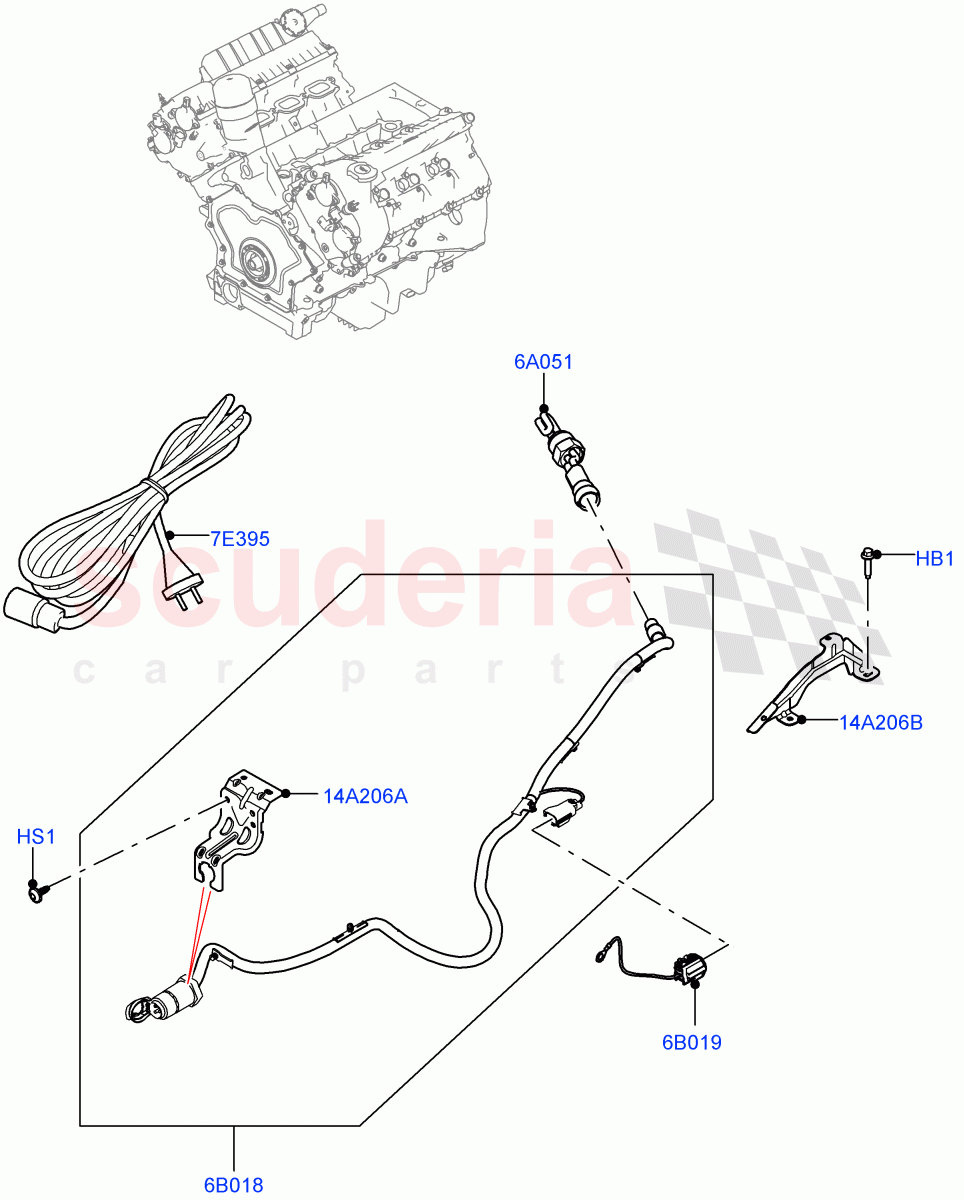

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500250	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033645	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099606	WIRE - ENGINE BLOCK HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095337	WIRING - HEATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR100387	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095846	BRACKET - WIRING	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	RYG500250	BOLT	RYG500250 BOLT M6 x 25MM	-	2	Enquire
HS1	LR033645	SCREW	LR033645 SCREW M6 X 16MM, Torx	-	4	Enquire
6A051	LR038157	Heater	LR038157 Heater Immersion Heater-700W/220V	-	1	Enquire
6A051	LR038158	HEATER - ENGINE BLOCK	LR038158 HEATER - ENGINE BLOCK Immersion Heater - 700W / 110V	-	1	Enquire
6B018	LR099606	WIRE - ENGINE BLOCK HEATER	LR099606 WIRE - ENGINE BLOCK HEATER	-	1	Enquire
6B019	LR095337	WIRING - HEATER	LR095337 WIRING - HEATER	-	1	Enquire
7E395	LR031624	WIRE - ENGINE BLOCK HEATER	LR031624 WIRE - ENGINE BLOCK HEATER Immersion Heater-700W/220V	-	1	Enquire
7E395	LR031623	Cable	LR031623 Cable Immersion Heater - 700W / 110V	-	1	Enquire
14A206A	LR100387	BRACKET - WIRING	LR100387 BRACKET - WIRING	-	1	Enquire
14A206B	LR095846	BRACKET - WIRING	LR095846 BRACKET - WIRING	-	1	Enquire
