Name: Windscreen Wiper
Rating: 4.4 (1 reviews)

View All

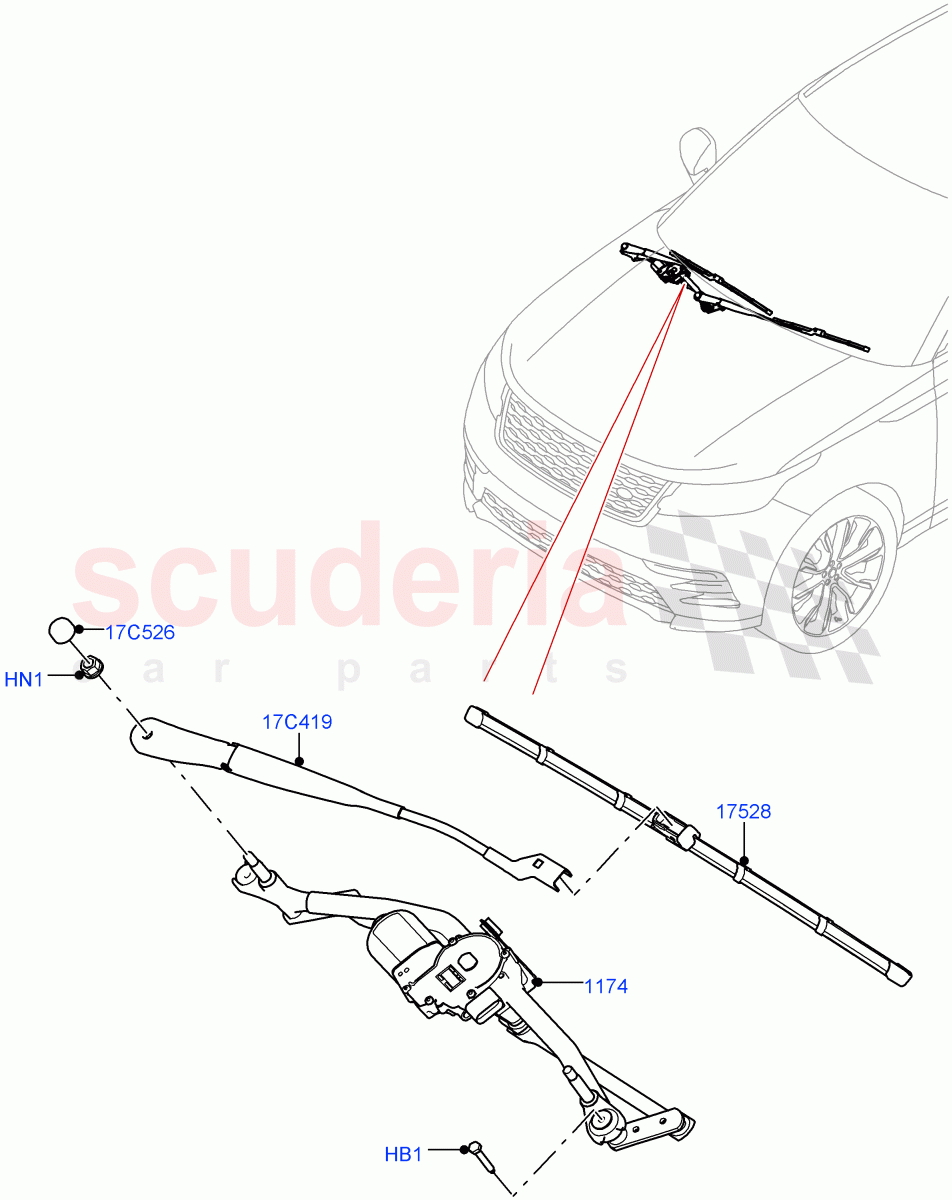

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500910	BOLT	$0.50	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500390	NUT AND WASHER - HEX.	$1.63	To Order

...and 1 more part variants. See table on right for more details.

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR000085	CAP	$2.11	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500910	BOLT	RYG500910 BOLT Bolt And Washer, Hexagonal Head, M6 x 35MM	$0.50	2
HN1	RYH500390	NUT AND WASHER - HEX.	RYH500390 NUT AND WASHER - HEX. M10, Nut And Washer	$1.63	2
17C419	LR093419	ARM - WIPER	LR093419 ARM - WIPER RHD / RH	$54.08	1
17C419	LR093429	ARM - WIPER	LR093429 ARM - WIPER RHD / LH	$57.97	1
17C419	LR093420	ARM - WIPER	LR093420 ARM - WIPER LHD / LH	$61.83	1
17C419	LR093432	ARM - WIPER	LR093432 ARM - WIPER LHD / RH	$65.68	1
17C526	LR000085	CAP	LR000085 CAP Wiper Arm	$2.11	2
1174	LR093421	WIPER MOTOR AND MECHANISM	LR093421 WIPER MOTOR AND MECHANISM LHD / Windshield Wiper, Includes Motor And Linkage	$390.87	1
1174	LR093415	WIPER MOTOR AND MECHANISM	LR093415 WIPER MOTOR AND MECHANISM RHD / Windshield Wiper, Includes Motor And Linkage	$222.55	1
17528	LR093422	BLADE - WIPER IN STOCK	LR093422 BLADE - WIPER RHD / RH IN STOCK	$40.94	1
17528	LR093423	BLADE - WIPER IN STOCK	LR093423 BLADE - WIPER RHD / LH IN STOCK	$40.94	1
17528	LR093424	BLADE - WIPER	LR093424 BLADE - WIPER LHD / LH	$40.94	1
17528	LR093425	BLADE - WIPER	LR093425 BLADE - WIPER LHD / RH	$40.94	1
