Name: Front Panels, Aprons & Side Members (Front Panel)
Rating: 5.0 (1 reviews)

Front Panels, Aprons & Side Members (Front Panel) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

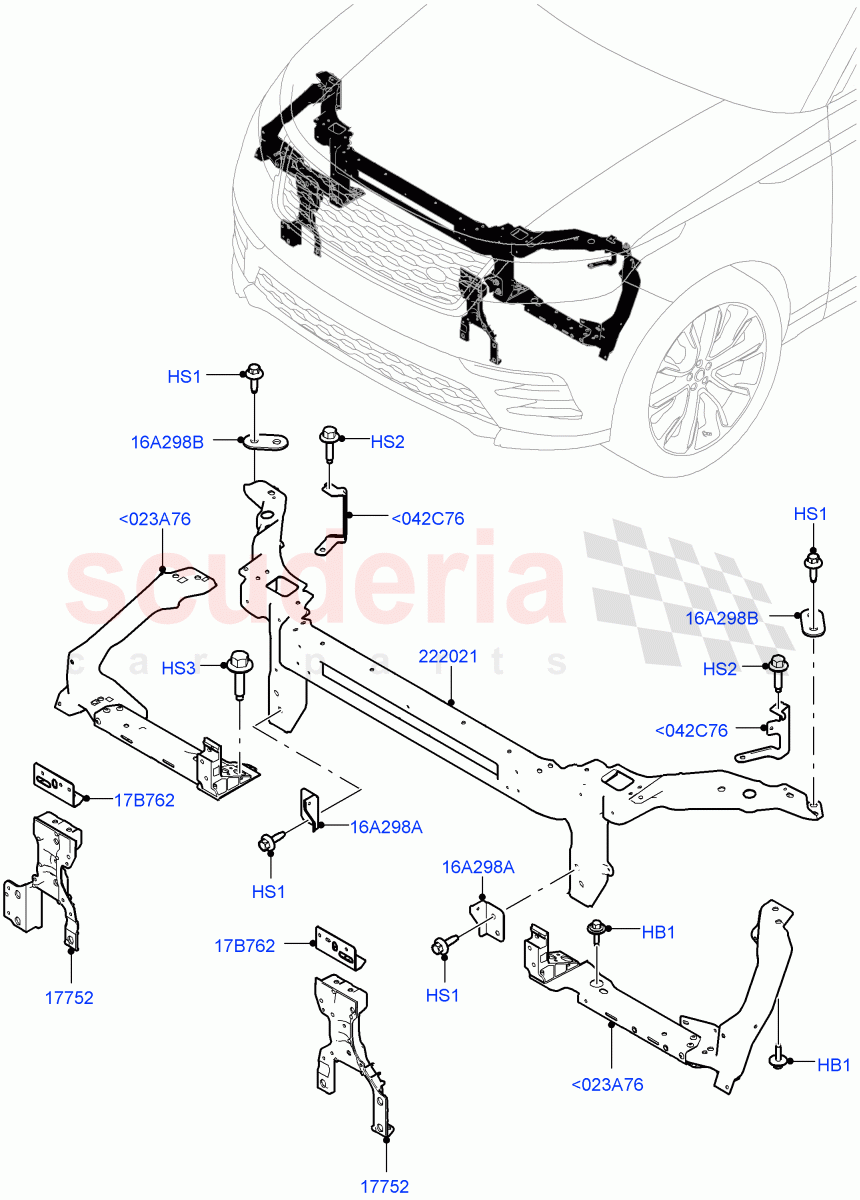

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Front Panels, Aprons & Side Members (Front Panel)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR009266	BOLT M6 X 24	$1.40	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR033017	SCREW AND WASHER - HEX HEAD	$2.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033039	SCREW AND WASHER - HEX HEAD	$1.61	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500980	SCREW AND WASHER	$1.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091875	BRACKET - BUMPER MOUNTING	$37.67	To Order
	LR091879	BRACKET - BUMPER MOUNTING	$37.67	To Order
	LR143160	BRACKET - BUMPER MOUNTING	$44.15	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092798	BRACKET - BUMPER MOUNTING	$19.65	To Order
	LR092799	BRACKET - BUMPER MOUNTING	$19.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091872	FRONT END	$689.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR152525	REINFORCEMENT - BUMPER SECURING	$377.30	To Order
	LR091688	REINFORCEMENT - BUMPER SECURING	$377.30	To Order
	LR152525	REINFORCEMENT - BUMPER SECURING	$377.30	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091996	BRACKET - AIR CLEANER	$6.79	To Order
	LR091997	BRACKET - AIR CLEANER	$12.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091695	BRACKET - RADIATOR GRILLE	$10.51	To Order
	LR091696	BRACKET - RADIATOR GRILLE	$10.51	To Order
	LR159447	BRACKET - RADIATOR GRILLE	$17.18	IN STOCK

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR091711	PLATE - ISOLATOR-FRONT END CARRIER	$7.31	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<023A76	LR152525	REINFORCEMENT - BUMPER SECURING	LR152525 REINFORCEMENT - BUMPER SECURING RH / To: LA999999	$377.30	1
<023A76	LR091688	REINFORCEMENT - BUMPER SECURING	LR091688 REINFORCEMENT - BUMPER SECURING LH / To: LA999999	$377.30	1
<023A76	LR152525	REINFORCEMENT - BUMPER SECURING	LR152525 REINFORCEMENT - BUMPER SECURING RH / From: MA000001	$377.30	1
<023A76	LR152526	REINFORCEMENT - BUMPER SECURING	LR152526 REINFORCEMENT - BUMPER SECURING LH / From: MA000001	$377.30	1
<042C76	LR091996	BRACKET - AIR CLEANER	LR091996 BRACKET - AIR CLEANER RH, Front Panel	$6.79	1
<042C76	LR091997	BRACKET - AIR CLEANER	LR091997 BRACKET - AIR CLEANER LH, Front Panel	$12.13	1
HB1	LR009266	BOLT M6 X 24 IN STOCK	LR009266 BOLT M6 X 24 Bolt And Washer, Hexagonal Head, M6 X 24MM IN STOCK	$1.40	10
HS1	LR033017	SCREW AND WASHER - HEX HEAD	LR033017 SCREW AND WASHER - HEX HEAD M8 x 28MM, Self Tapping	$2.59	8
HS2	LR033039	SCREW AND WASHER - HEX HEAD	LR033039 SCREW AND WASHER - HEX HEAD Hexagonal Head, M6 x 19MM	$1.61	2
HS3	RYG500980	SCREW AND WASHER	RYG500980 SCREW AND WASHER M8 x 24MM	$1.32	4
16A298A	LR091695	BRACKET - RADIATOR GRILLE	LR091695 BRACKET - RADIATOR GRILLE RH / To: LA999999	$10.51	1
16A298A	LR091696	BRACKET - RADIATOR GRILLE	LR091696 BRACKET - RADIATOR GRILLE LH / To: LA999999	$10.51	1
16A298A	LR159447	BRACKET - RADIATOR GRILLE IN STOCK	LR159447 BRACKET - RADIATOR GRILLE RH / From: MA000001 IN STOCK	$17.18	1
16A298A	LR159449	BRACKET - RADIATOR GRILLE	LR159449 BRACKET - RADIATOR GRILLE LH / From: MA000001	$17.18	1
16A298B	LR091711	PLATE - ISOLATOR-FRONT END CARRIER	LR091711 PLATE - ISOLATOR-FRONT END CARRIER RH/LH	$7.31	2
17B762	LR092798	BRACKET - BUMPER MOUNTING	LR092798 BRACKET - BUMPER MOUNTING RH	$19.65	1
17B762	LR092799	BRACKET - BUMPER MOUNTING	LR092799 BRACKET - BUMPER MOUNTING LH	$19.65	1
17752	LR091875	BRACKET - BUMPER MOUNTING	LR091875 BRACKET - BUMPER MOUNTING RH / To: LA999999	$37.67	1
17752	LR091879	BRACKET - BUMPER MOUNTING	LR091879 BRACKET - BUMPER MOUNTING LH / To: LA999999	$37.67	1
17752	LR143160	BRACKET - BUMPER MOUNTING	LR143160 BRACKET - BUMPER MOUNTING RH / From: MA000001	$44.15	1
17752	LR143161	BRACKET - BUMPER MOUNTING	LR143161 BRACKET - BUMPER MOUNTING LH / From: MA000001	$42.45	1
222021	LR091872	FRONT END	LR091872 FRONT END	$689.91	1
