Fuel Tank Filler Door And Controls

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Fuel Tank Filler Door And Controls

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR109329 SCREW $2.08 To Order
Photo Part No Description Price (each) Stock
LR146970 INFILL PANEL - FUEL FILLER $70.91 To Order
Photo Part No Description Price (each) Stock
LR092636 HOUSING - FUEL TANK FILLER PIPE $135.15 To Order
LR092637 HOUSING - FUEL TANK FILLER PIPE $135.15 To Order
LR092638 HOUSING - FUEL TANK FILLER PIPE $135.15 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR104300 MOTOR - DOOR LATCH $67.47 To Order
LR104300 MOTOR - DOOR LATCH $67.47 To Order
Photo Part No Description Price (each) Stock
LR140352 LAMP - CHARGE PORT $47.22 To Order
Photo Part No Description Price (each) Stock
LR092656 PIN - LOCKING $4.90 To Order
LR092656 PIN - LOCKING $4.90 To Order
Photo Part No Description Price (each) Stock
LR092640 LATCH - FUEL FILLER $8.91 To Order
Photo Part No Description Price (each) Stock
LR142896 HOUSING - CHARGE PORT $118.26 To Order
LR142897 HOUSING - CHARGE PORT $124.25 To Order
Photo Part No Description Price (each) Stock
LR091528 FILLER CAP AND WARNING INDICATOR $22.18 To Order
LR146839 FILLER CAP AND WARNING INDICATOR $20.54 To Order
LR091528 FILLER CAP AND WARNING INDICATOR $22.18 To Order
Photo Part No Description Price (each) Stock
LR162751 PUSH LOCK-FUEL FILLER $56.66 To Order
Photo Part No Description Price (each) Stock
LR142893 DOOR - FUEL TANK FILLER ACCESS $42.41 To Order
View All

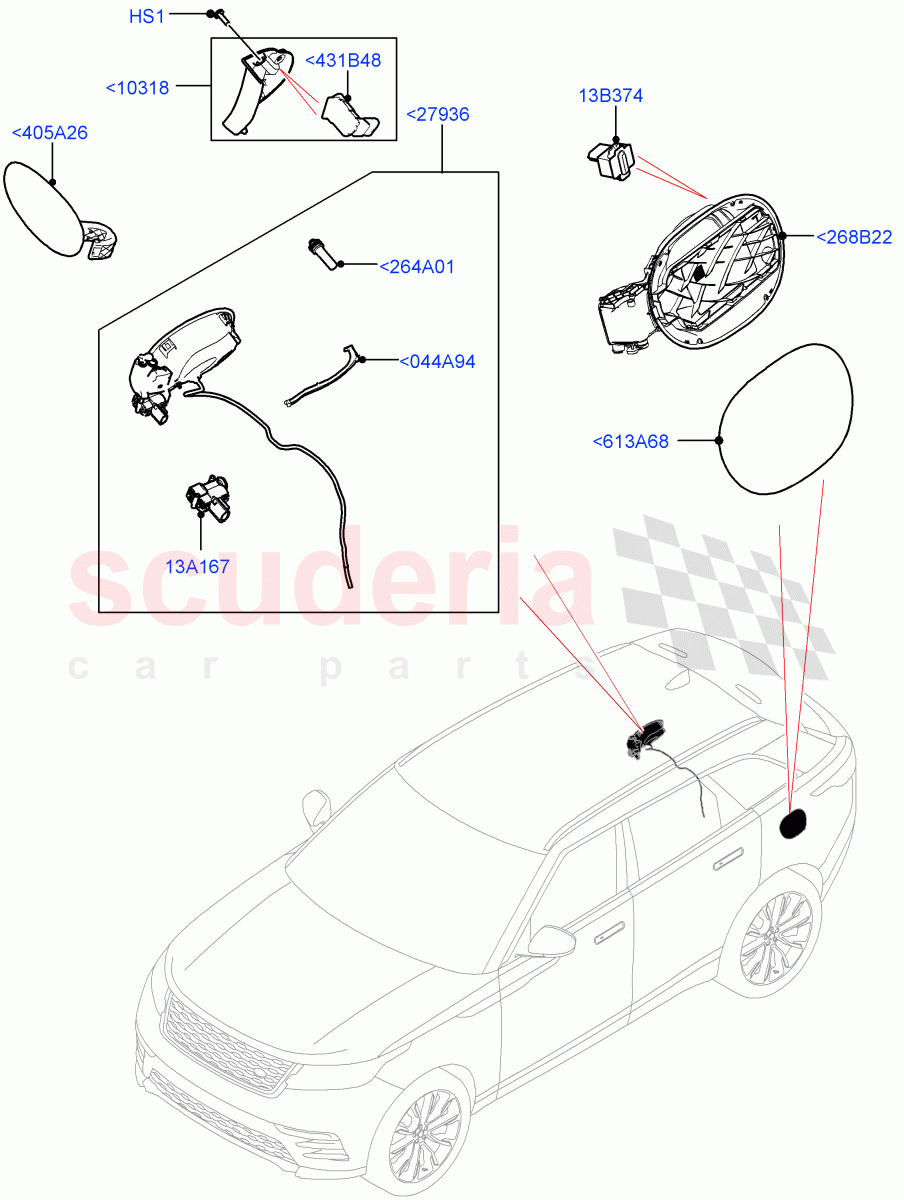

Fuel Tank Filler Door And Controls of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<044A94 LR092656
PIN - LOCKING
Fuel Filler Flap - Central Locking / To: LA999999 		$4.90 1
<044A94 LR092656
PIN - LOCKING
3.0L AJ20P6 Petrol High, Fuel Filler Flap - Central Locking, Less Emission Tank / From: MA000001 		$4.90 1
<264A01 LR092640
LATCH - FUEL FILLER 		$8.91 1
<268B22 LR142896
HOUSING - CHARGE PORT
2.0L AJ200P Hi PHEV, Charge Socket AC + Chademo DC / From: MA000001 		$118.26 1
<268B22 LR142897
HOUSING - CHARGE PORT
2.0L AJ200P Hi PHEV, Charge Socket GB/T AC + GB/T DC / From: MA000001 		$124.25 1
<405A26 LR091528
FILLER CAP AND WARNING INDICATOR
To: LA999999 		$22.18 1
<405A26 LR146839
FILLER CAP AND WARNING INDICATOR
Electric Engine Battery-PHEV / From: MA000001 		$20.54 1
<405A26 LR091528
FILLER CAP AND WARNING INDICATOR
Less Electric Engine Battery / From: MA000001 		$22.18 1
<431B48 LR162751
PUSH LOCK-FUEL FILLER
Electric Engine Battery-PHEV, Fuel Filler Flap - Central Locking, Less Emission Tank / From: MA000001 		$56.66 1
<613A68 LR142893
DOOR - FUEL TANK FILLER ACCESS
2.0L AJ200P Hi PHEV / From: MA000001 		$42.41 1
<10318 LR146970
INFILL PANEL - FUEL FILLER
Electric Engine Battery-PHEV / From: MA000001 		$70.91 1
<27936 LR092636
HOUSING - FUEL TANK FILLER PIPE
Fuel Filler Flap - Central Locking, Less Emission Tank / To: LA999999 		$135.15 1
<27936 LR092637
HOUSING - FUEL TANK FILLER PIPE
Less Emission Tank, Less Fuel Filler Flap Lock 		$135.15 1
<27936 LR092638
HOUSING - FUEL TANK FILLER PIPE
Fuel Filler Flap - Central Locking, With Diesel Exh Fluid Emission Tank 		$135.15 1
<27936 LR092639
HOUSING - FUEL TANK FILLER PIPE
Less Fuel Filler Flap Lock, With Diesel Exh Fluid Emission Tank 		$135.15 1
<27936 LR092636
HOUSING - FUEL TANK FILLER PIPE
Fuel Filler Flap - Central Locking, Less Electric Engine Battery, Less Emission Tank / From: MA000001 		$135.15 1
<27936 LR146146
HOUSING - FUEL TANK FILLER PIPE
Electric Engine Battery-PHEV, Fuel Filler Flap - Central Locking, Less Emission Tank / From: MA000001 		$135.15 1
HS1 LR109329
SCREW
Electric Engine Battery-PHEV / M5 X 15MM, Torx / From: MA000001 		$2.08 3
13A167 LR104300
MOTOR - DOOR LATCH
Fuel Filler Flap - Central Locking, Less Emission Tank / To: LA999999 		$67.47 1
13A167 LR104300
MOTOR - DOOR LATCH
2.0L AJ21D4 Diesel Mid, Fuel Filler Flap - Central Locking, Less Emission Tank / From: MA000001 		$67.47 1
13B374 LR140352
LAMP - CHARGE PORT
Charge Socket GB/T AC + GB/T DC / From: MA000001 		$47.22 1
