Name: Windscreen Washer
Rating: 4.5 (1 reviews)

Windscreen Washer of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

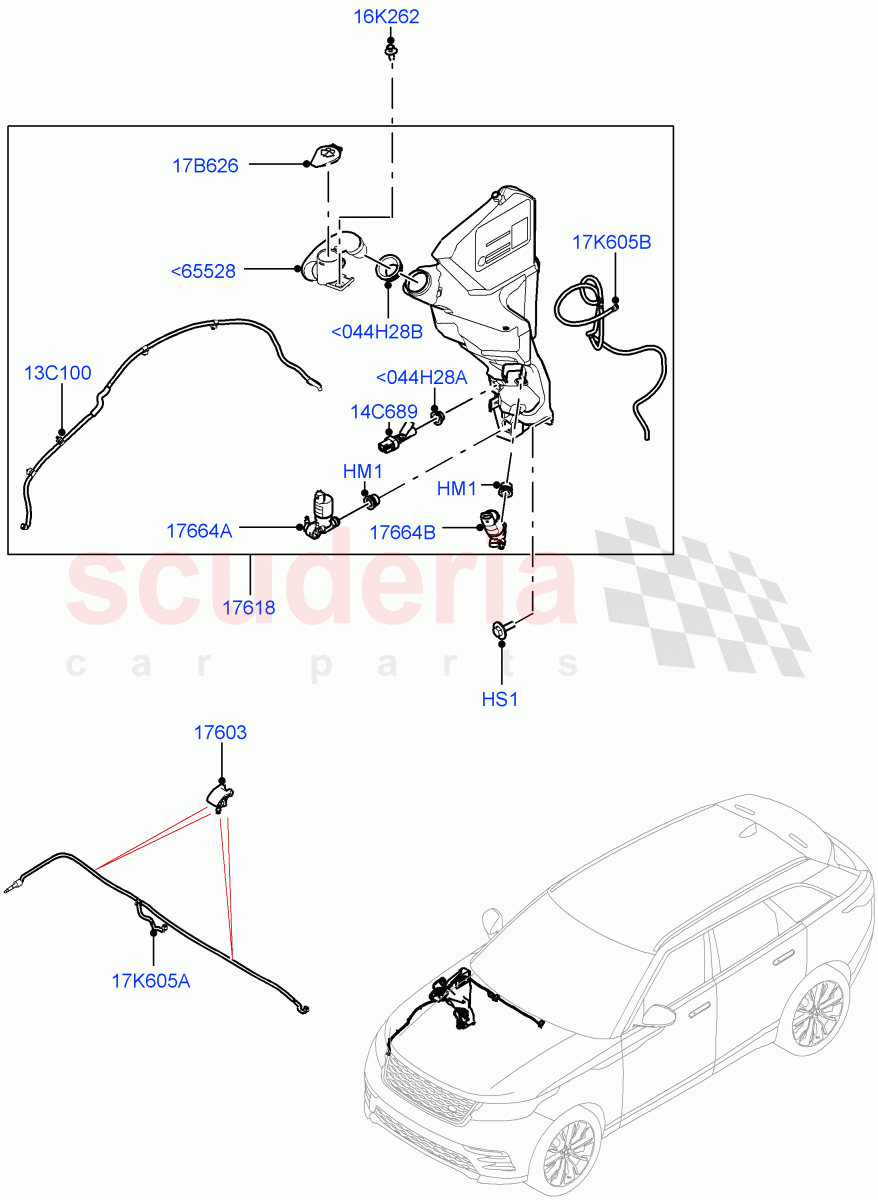

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Windscreen Washer

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR093446	GROMMET - WINDSHIELD WASHER PUMP	$7.43	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.92	IN STOCK
	LR066438	SCREW	$2.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR096444	JET - WINDSHIELD WASHER	$24.83	To Order
	LR096443	JET - WINDSHIELD WASHER	$14.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093441	RESERVOIR - WINDSHIELD WASHER	$224.14	To Order
	LR093438	RESERVOIR - WINDSHIELD WASHER	$232.52	To Order
	LR111379	RESERVOIR - WINDSHIELD WASHER	$130.06	To Order

...and 6 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR093443	TUBE - FILLER NECK	$34.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093461	HOSE - HEADLAMP WASHER	$50.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR111545	SENSOR - WASHER FLUID LEVEL	$22.45	IN STOCK
	LR111545	SENSOR - WASHER FLUID LEVEL	$22.45	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	VPLGP0126	CLIP - SPECIAL	$2.94	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093460	MOTOR AND PUMP - HEADLAMP WASHER	$61.12	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093444	MOTOR AND PUMP - FRONT/REAR WASHER	$72.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093442	CAP - WASHER RESERVOIR	$10.44	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093458	HOSE - WINDSHIELD WASHER	$39.21	To Order
	LR161478	HOSE - WINDSHIELD WASHER	$39.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093457	HOSE - WINDSHIELD WASHER	$29.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093453	GROMMET - WATER RESERVOIR	$8.43	To Order

Photo	Part No	Description	Price (each)	Stock
	LR093456	GROMMET - WATER RESERVOIR	$9.82	To Order
	LR093456	GROMMET - WATER RESERVOIR	$9.82	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
<044H28A	LR093453	GROMMET - WATER RESERVOIR	LR093453 GROMMET - WATER RESERVOIR Sealing Ring	$8.43	1
<044H28B	LR093456	GROMMET - WATER RESERVOIR	LR093456 GROMMET - WATER RESERVOIR Less Headlamp Washer / To: LA999999	$9.82	1
<044H28B	LR093456	GROMMET - WATER RESERVOIR	LR093456 GROMMET - WATER RESERVOIR From: MA000001	$9.82	1
<65528	LR093443	TUBE - FILLER NECK	LR093443 TUBE - FILLER NECK Filler Neck	$34.78	1
HM1	LR093446	GROMMET - WINDSHIELD WASHER PUMP	LR093446 GROMMET - WINDSHIELD WASHER PUMP Sealing Ring	$7.43	1
HS1	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM / To: JA729453 IN STOCK	$0.92	7
HS1	LR066438	SCREW	LR066438 SCREW Hexagonal Head, M6 X 20MM / From: JA729454	$2.94	7
13C100	LR093461	HOSE - HEADLAMP WASHER	LR093461 HOSE - HEADLAMP WASHER With Headlamp Power Wash / Headlamp	$50.92	1
14C689	LR111545	SENSOR - WASHER FLUID LEVEL IN STOCK	LR111545 SENSOR - WASHER FLUID LEVEL Sensor / To: JA754309 IN STOCK	$22.45	1
14C689	LR111545	SENSOR - WASHER FLUID LEVEL IN STOCK	LR111545 SENSOR - WASHER FLUID LEVEL Sensor / From: JA754310 IN STOCK	$22.45	1
16K262	VPLGP0126	CLIP - SPECIAL	VPLGP0126 CLIP - SPECIAL Support	$2.94	1
17B626	LR093442	CAP - WASHER RESERVOIR	LR093442 CAP - WASHER RESERVOIR Filler Cap	$10.44	1
17K605A	LR093458	HOSE - WINDSHIELD WASHER	LR093458 HOSE - WINDSHIELD WASHER Windshield / To: MA314446	$39.21	1
17K605A	LR161478	HOSE - WINDSHIELD WASHER	LR161478 HOSE - WINDSHIELD WASHER Windshield / From: MA314447	$39.21	1
17K605B	LR093457	HOSE - WINDSHIELD WASHER	LR093457 HOSE - WINDSHIELD WASHER Windshield	$29.38	1
17603	LR096444	JET - WINDSHIELD WASHER	LR096444 JET - WINDSHIELD WASHER Less Heated Washer Jet	$24.83	2
17603	LR096443	JET - WINDSHIELD WASHER	LR096443 JET - WINDSHIELD WASHER With Heated Washer Jet	$14.63	2
17618	LR093441	RESERVOIR - WINDSHIELD WASHER	LR093441 RESERVOIR - WINDSHIELD WASHER With Headlamp Power Wash / To: JA754303	$224.14	1
17618	LR093438	RESERVOIR - WINDSHIELD WASHER	LR093438 RESERVOIR - WINDSHIELD WASHER Less Headlamp Washer / To: JA758184	$232.52	1
17618	LR111379	RESERVOIR - WINDSHIELD WASHER	LR111379 RESERVOIR - WINDSHIELD WASHER With Headlamp Power Wash / From: JA754304 / To: LA999999	$130.06	1
17618	LR112112	RESERVOIR - WINDSHIELD WASHER	LR112112 RESERVOIR - WINDSHIELD WASHER Less Headlamp Washer / From: JA758185 / To: LA999999	$250.18	1
17618	LR142904	RESERVOIR - WINDSHIELD WASHER	LR142904 RESERVOIR - WINDSHIELD WASHER With Headlamp Power Wash / From: MA000001 / To: MA303426	$111.59	1
17618	LR142906	RESERVOIR - WINDSHIELD WASHER	LR142906 RESERVOIR - WINDSHIELD WASHER Less Headlamp Washer / From: MA000001 / To: MA304096	$111.59	1
17618	LR157847	RESERVOIR - WINDSHIELD WASHER	LR157847 RESERVOIR - WINDSHIELD WASHER With Headlamp Power Wash / From: MA303427	$111.59	1
17618	LR157846	Reservoir - Windshield Washer	LR157846 Reservoir - Windshield Washer Less Headlamp Washer / From: MA304097 / To: MA325323	$117.10	1
17618	LR159792	RESERVOIR - WINDSHIELD WASHER	LR159792 RESERVOIR - WINDSHIELD WASHER Less Headlamp Washer / From: MA325324	$107.96	1
17664A	LR093460	MOTOR AND PUMP - HEADLAMP WASHER	LR093460 MOTOR AND PUMP - HEADLAMP WASHER With Headlamp Power Wash / Headlamp	$61.12	1
17664B	LR093444	MOTOR AND PUMP - FRONT/REAR WASHER	LR093444 MOTOR AND PUMP - FRONT/REAR WASHER Windshield	$72.87	1
