Rear Doors, Hinges & Weatherstrips (Weatherstrips And Seals) of Land Rover Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Velar (2017+) [2.0 Turbo Petrol AJ200P] - Rear Doors, Hinges & Weatherstrips (Weatherstrips And Seals)

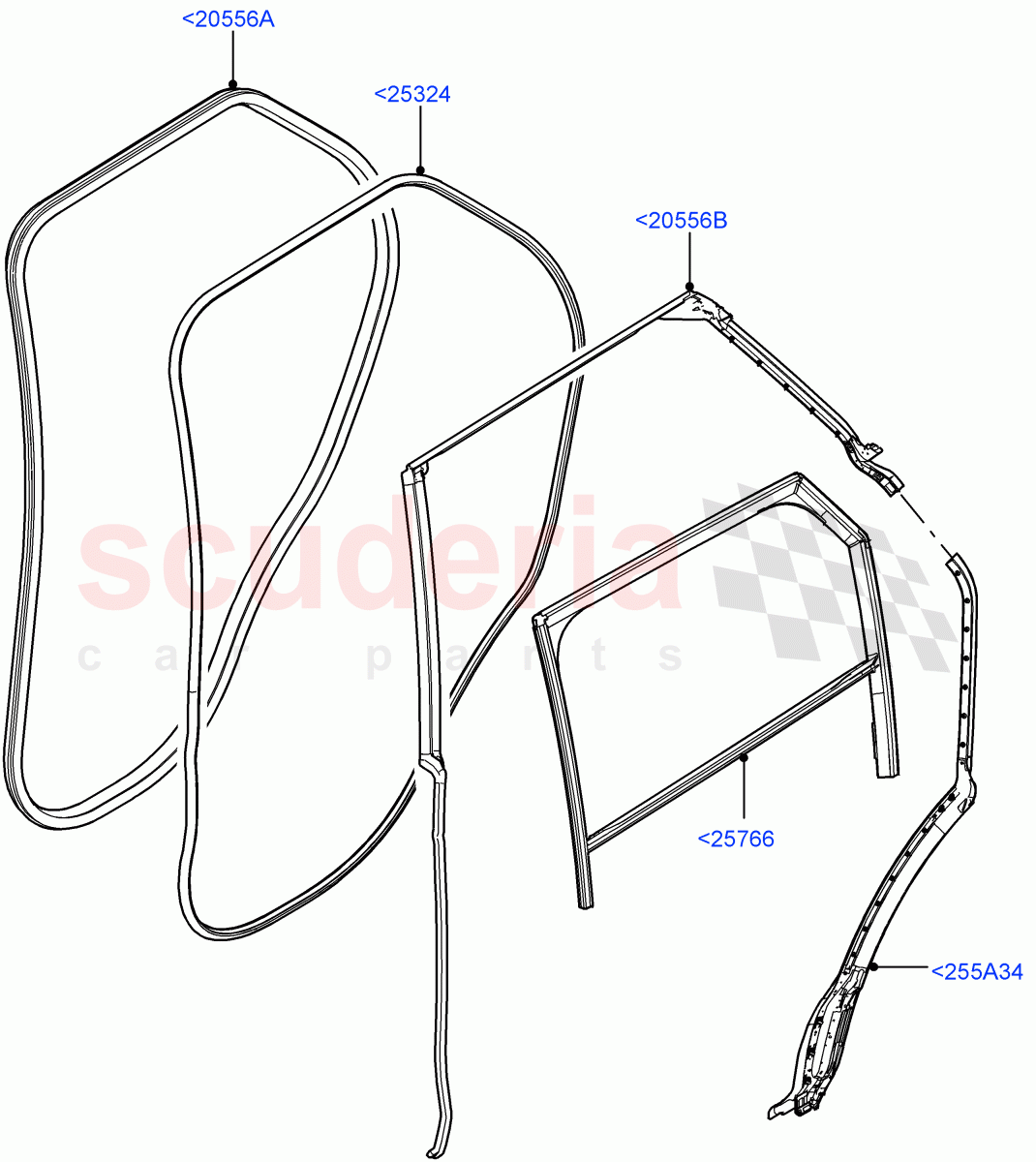

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR092598	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR113847	SEAL - DOOR FRONT AND REAR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR092601	RUN - DOOR GLASS	Enquire	To Order
	LR092602	RUN - DOOR GLASS	Enquire	To Order
	LR116027	RUN - DOOR GLASS	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092605	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR106646	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR111516	SEAL - DOOR FRONT AND REAR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092603	WEATHERSTRIP - DOOR OPENING	Enquire	To Order
	LR092604	WEATHERSTRIP - DOOR OPENING	Enquire	To Order
	LR110735	WEATHERSTRIP - DOOR OPENING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR092599	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR092600	SEAL - DOOR FRONT AND REAR	Enquire	To Order
	LR108974	SEAL - DOOR FRONT AND REAR	Enquire	To Order

...and 3 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<255A34	LR092599	SEAL - DOOR FRONT AND REAR	LR092599 SEAL - DOOR FRONT AND REAR RH / To: JA738832	-	1	Enquire
<255A34	LR092600	SEAL - DOOR FRONT AND REAR	LR092600 SEAL - DOOR FRONT AND REAR LH / To: JA738832	-	1	Enquire
<255A34	LR108974	SEAL - DOOR FRONT AND REAR	LR108974 SEAL - DOOR FRONT AND REAR RH / From: JA738833 / To: KA230296	-	1	Enquire
<255A34	LR108975	SEAL - DOOR FRONT AND REAR	LR108975 SEAL - DOOR FRONT AND REAR LH / From: JA738833 / To: KA230296	-	1	Enquire
<255A34	LR136826	SEAL - DOOR FRONT AND REAR	LR136826 SEAL - DOOR FRONT AND REAR RH / From: KA230297	-	1	Enquire
<255A34	LR136827	SEAL - DOOR FRONT AND REAR	LR136827 SEAL - DOOR FRONT AND REAR LH / From: KA230297	-	1	Enquire
<20556A	LR092605	SEAL - DOOR FRONT AND REAR	LR092605 SEAL - DOOR FRONT AND REAR Body, RH/LH / To: JA709143	-	2	Enquire
<20556A	LR106646	SEAL - DOOR FRONT AND REAR	LR106646 SEAL - DOOR FRONT AND REAR Body, RH/LH / From: JA709144 / To: JA723508	-	2	Enquire
<20556A	LR111516	SEAL - DOOR FRONT AND REAR	LR111516 SEAL - DOOR FRONT AND REAR Body, RH/LH / From: JA723509 / To: JA754309	-	2	Enquire
<20556A	LR113848	SEAL - DOOR FRONT AND REAR	LR113848 SEAL - DOOR FRONT AND REAR Body, RH/LH / From: JA754310	-	2	Enquire
<20556B	LR092603	WEATHERSTRIP - DOOR OPENING	LR092603 WEATHERSTRIP - DOOR OPENING RH / To: JA726245	-	1	Enquire
<20556B	LR092604	WEATHERSTRIP - DOOR OPENING	LR092604 WEATHERSTRIP - DOOR OPENING LH / To: JA726245	-	1	Enquire
<20556B	LR110735	WEATHERSTRIP - DOOR OPENING	LR110735 WEATHERSTRIP - DOOR OPENING RH / From: JA726246 / To: LA281114	-	1	Enquire
<20556B	LR110736	WEATHERSTRIP - DOOR OPENING	LR110736 WEATHERSTRIP - DOOR OPENING LH / From: JA726246 / To: LA281114	-	1	Enquire
<20556B	LR143459	WEATHERSTRIP - DOOR OPENING	LR143459 WEATHERSTRIP - DOOR OPENING RH / From: LA281115	-	1	Enquire
<20556B	LR143458	WEATHERSTRIP - DOOR OPENING	LR143458 WEATHERSTRIP - DOOR OPENING LH / From: LA281115	-	1	Enquire
<25324	LR092598	SEAL - DOOR FRONT AND REAR	LR092598 SEAL - DOOR FRONT AND REAR To: JA754309	-	2	Enquire
<25324	LR113847	SEAL - DOOR FRONT AND REAR	LR113847 SEAL - DOOR FRONT AND REAR From: JA754310	-	2	Enquire
<25766	LR092601	RUN - DOOR GLASS	LR092601 RUN - DOOR GLASS RH / To: JA757613	-	1	Enquire
<25766	LR092602	RUN - DOOR GLASS	LR092602 RUN - DOOR GLASS LH / To: JA757613	-	1	Enquire
<25766	LR116027	RUN - DOOR GLASS	LR116027 RUN - DOOR GLASS RH / From: JA757613 / To: KA208292	-	1	Enquire
<25766	LR116028	RUN - DOOR GLASS	LR116028 RUN - DOOR GLASS LH / From: JA757614 / To: KA208614	-	1	Enquire
<25766	LR128135	RUN - DOOR GLASS	LR128135 RUN - DOOR GLASS LH / From: KA208615	-	1	Enquire
<25766	LR128134	RUN - DOOR GLASS	LR128134 RUN - DOOR GLASS RH / From: KA208293	-	1	Enquire
