Name: Rear Exhaust System (4.4L DOHC DITC V8 Diesel) ((V) FROMJA000001)
Rating: 4.9 (1 reviews)

View All

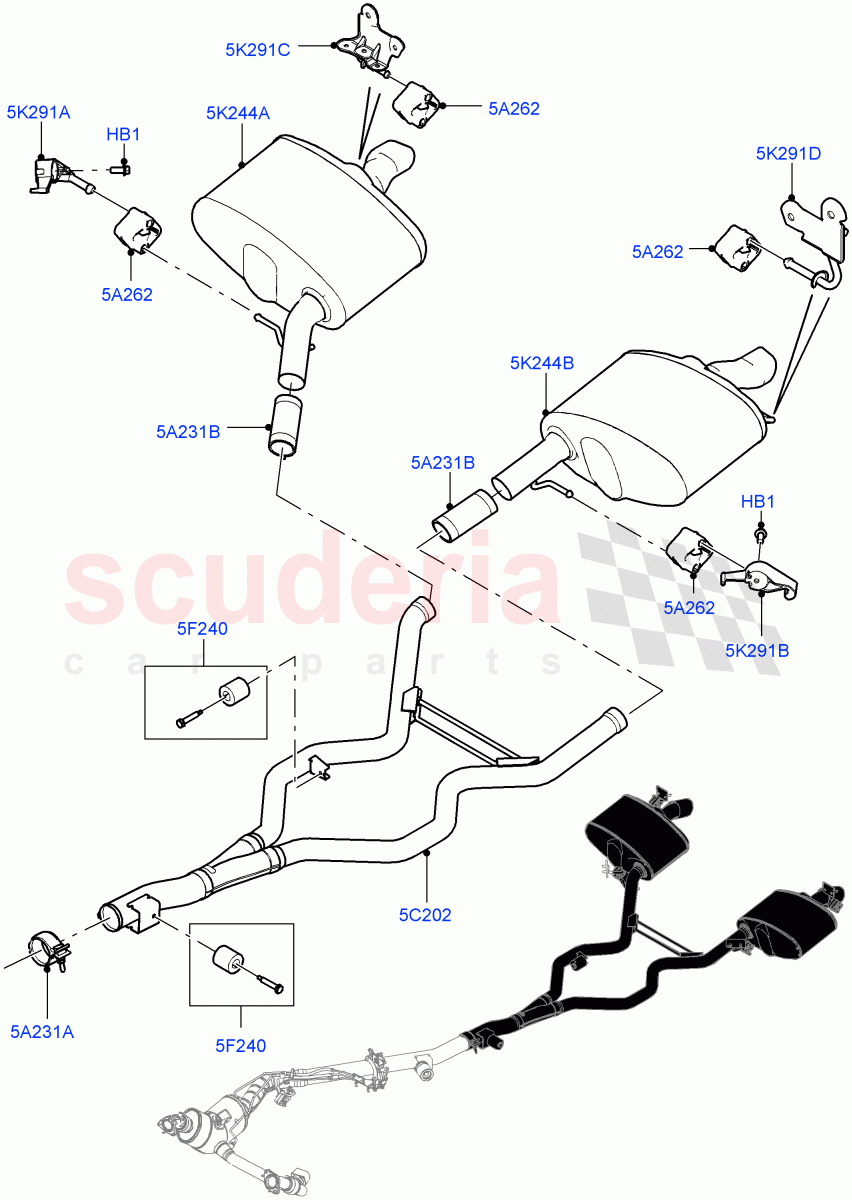

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR090360	INSULATOR - RUBBER	$23.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077728	PIPE - EXHAUST	$472.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR095164	DAMPER - DAMPING MASS	$42.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077709	CLAMP - EXHAUST	$42.40	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$81.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105230	MUFFLER - REAR	$796.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR105235	MUFFLER - REAR	$796.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110251	BRACKET - REAR MUFFLER	$30.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR110252	BRACKET - REAR MUFFLER	$30.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101087	BRACKET - EXHAUST PIPE MOUNTING	$41.57	To Order

Photo	Part No	Description	Price (each)	Stock
	LR101088	BRACKET - EXHAUST PIPE MOUNTING	$71.82	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: JA000001 IN STOCK	$2.23	2
5A231A	LR077709	CLAMP - EXHAUST	LR077709 CLAMP - EXHAUST 70MM, Front / From: JA000001	$42.40	1
5A231B	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, For Rear Muffler / From: JA000001	$81.53	2
5A262	LR090360	INSULATOR - RUBBER	LR090360 INSULATOR - RUBBER From: JA000001	$23.23	4
5C202	LR077728	PIPE - EXHAUST	LR077728 PIPE - EXHAUST From: JA000001	$472.56	1
5F240	LR095164	DAMPER - DAMPING MASS	LR095164 DAMPER - DAMPING MASS From: JA000001	$42.56	2
5K244A	LR105230	MUFFLER - REAR	LR105230 MUFFLER - REAR RH / From: JA000001	$796.99	1
5K244B	LR105235	MUFFLER - REAR	LR105235 MUFFLER - REAR LH / From: JA000001	$796.99	1
5K291A	LR110251	BRACKET - REAR MUFFLER	LR110251 BRACKET - REAR MUFFLER For Rear Muffler, RH Front / From: JA000001	$30.11	1
5K291B	LR110252	BRACKET - REAR MUFFLER	LR110252 BRACKET - REAR MUFFLER For Rear Muffler, LH Front / From: JA000001	$30.11	1
5K291C	LR101087	BRACKET - EXHAUST PIPE MOUNTING	LR101087 BRACKET - EXHAUST PIPE MOUNTING For Rear Muffler, RH Rear / From: JA000001	$41.57	1
5K291D	LR101088	BRACKET - EXHAUST PIPE MOUNTING	LR101088 BRACKET - EXHAUST PIPE MOUNTING For Rear Muffler, LH Rear / From: JA000001	$71.82	1

Rear Exhaust System (4.4L Dohc Ditc V8 Diesel) ((V) Fromja000001)

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]
