Exhaust System (Front) (4.4L Dohc Ditc V8 Diesel, Euro Stage 4 Emissions) ((V) Fromga000001)

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

Find Your Part

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Exhaust System (Front) (4.4L DOHC DITC V8 Diesel, Euro Stage 4 Emissions) ((V) FROMGA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
WYG500060 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
RYG500440 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR025680 M10 FLANGED HEX NUT Enquire To Order
Photo Part No Description Price (each) Stock
WYP000025 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LYR500010 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR044349 ELBOW - EXHAUST MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
LR025064 INSULATOR - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR022779 GASKET - EXHAUST PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR071090 CONVERTER Enquire To Order
Photo Part No Description Price (each) Stock
LR071726 BRACKET - EXHAUST PIPE MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR079223 GASKET - EXHAUST MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
LR079224 GASKET - EXHAUST MANIFOLD Enquire To Order
Photo Part No Description Price (each) Stock
LR043280 DAMPER - DAMPING MASS Enquire To Order
Photo Part No Description Price (each) Stock
LR043732 DAMPER - DAMPING MASS Enquire To Order
View All

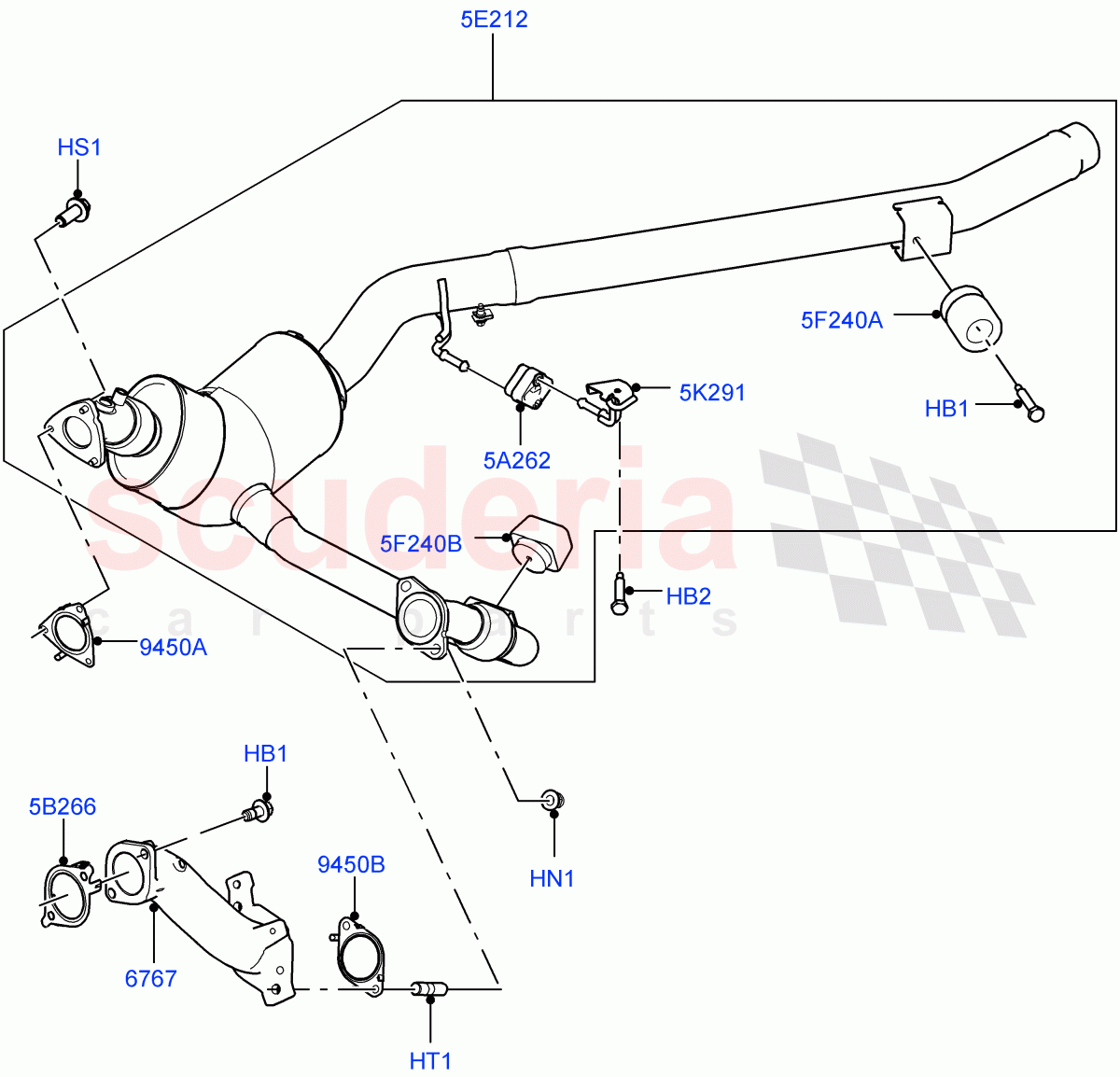

Exhaust System (Front) (4.4L DOHC DITC V8 Diesel, Euro Stage 4 Emissions) ((V) FROMGA000001) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 WYG500060
BOLT
M8 X 70 - 8.8, Self Locking 		- 3 Enquire
HB2 RYG500440
BOLT
Hexagonal Head, M8 X 20MM 		- 1 Enquire
HN1 LR025680
M10 FLANGED HEX NUT
M10 		- 2 Enquire
HS1 WYP000025
SCREW
Hexagonal Head, M8 X 20MM 		- 3 Enquire
HT1 LYR500010
STUD
M10 x 13MM, M10 X 20MM 		- 2 Enquire
5A262 LR025064
INSULATOR - RUBBER 		- 2 Enquire
5B266 LR022779
GASKET - EXHAUST PIPE
Elbow Connector 		- 1 Enquire
5E212 LR071090
CONVERTER
Complete Assembly 		- 1 Enquire
5F240A LR043280
DAMPER - DAMPING MASS
Rear 		- 1 Enquire
5F240B LR043732
DAMPER - DAMPING MASS
Front 		- 1 Enquire
5K291 LR071726
BRACKET - EXHAUST PIPE MOUNTING
Middle 		- 1 Enquire
6767 LR044349
ELBOW - EXHAUST MANIFOLD
LH, Exhaust Manifold 		- 1 Enquire
9450A LR079223
GASKET - EXHAUST MANIFOLD
RH, Downpipe 		- 1 Enquire
9450B LR079224
GASKET - EXHAUST MANIFOLD
LH, Downpipe 		- 1 Enquire
