Name: Exhaust System (Front) (4.4L DOHC DITC V8 Diesel, EU6 + DPF Emissions, EU6D Diesel + DPF Emissions) ((V) FROMGA000001)
Rating: 5.0 (1 reviews)

Exhaust System (Front) (4.4L DOHC DITC V8 Diesel, EU6 + DPF Emissions, EU6D Diesel + DPF Emissions) ((V) FROMGA000001) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Exhaust System (Front) (4.4L DOHC DITC V8 Diesel, EU6 + DPF Emissions, EU6D Diesel + DPF Emissions)...

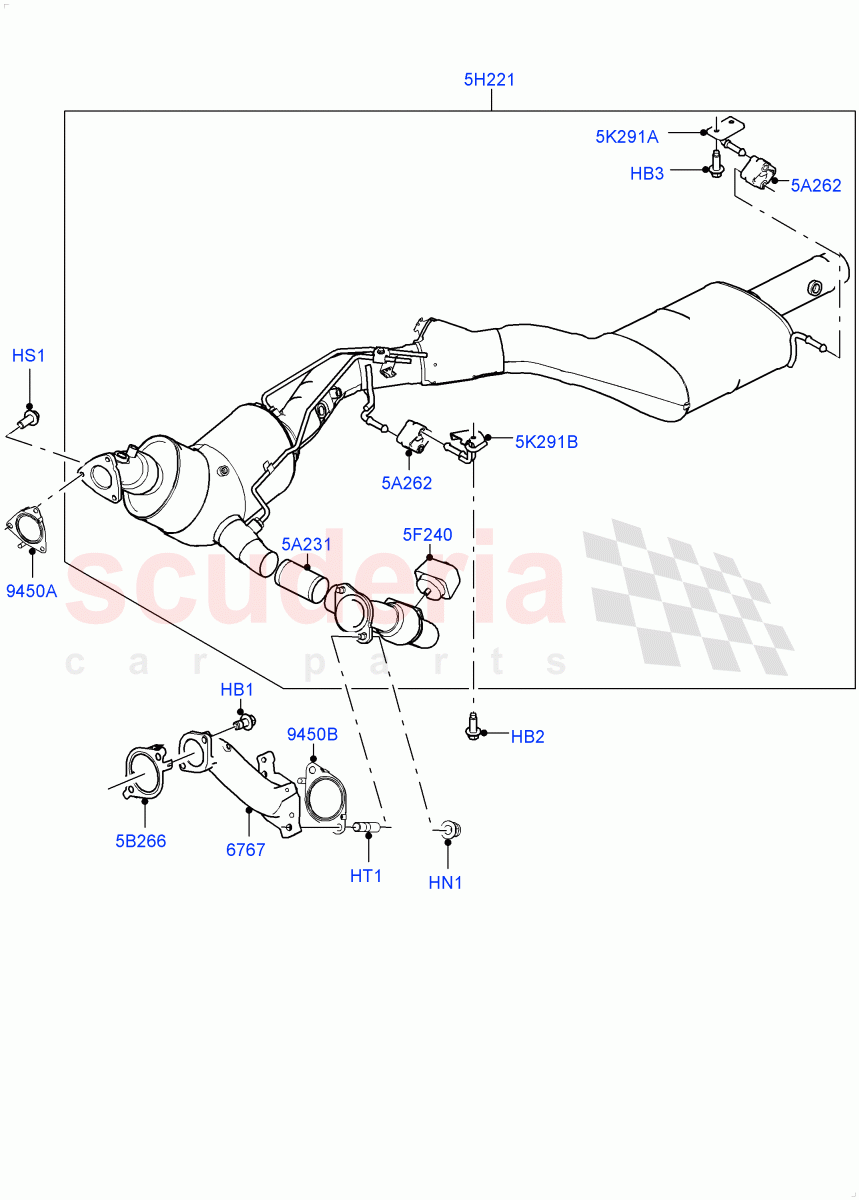

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	WYG500060	BOLT	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500440	BOLT	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025680	M10 FLANGED HEX NUT	$7.66	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYP000025	SCREW	$2.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LYR500010	STUD	$6.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044349	ELBOW - EXHAUST MANIFOLD	$1,125.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	$28.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022779	GASKET - EXHAUST PIPE	$7.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043732	DAMPER - DAMPING MASS	$61.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071093	FILTER - DIESEL PARTICLE	$4,093.95	To Order
	LR113244	FILTER - DIESEL PARTICLE	$3,826.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079223	GASKET - EXHAUST MANIFOLD	$15.09	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079224	GASKET - EXHAUST MANIFOLD	$16.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035765	BRACKET - EXHAUST PIPE MOUNTING	$30.11	To Order

Photo	Part No	Description	Price (each)	Stock
	LR071726	BRACKET - EXHAUST PIPE MOUNTING	$32.89	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	WYG500060	BOLT	WYG500060 BOLT M8 X 70 - 8.8, Self Locking	$2.53	3
HB2	RYG500440	BOLT	RYG500440 BOLT Hexagonal Head, M8 X 20MM	$0.99	1
HB3	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM IN STOCK	$2.23	1
HN1	LR025680	M10 FLANGED HEX NUT IN STOCK	LR025680 M10 FLANGED HEX NUT M10 IN STOCK	$7.66	2
HS1	WYP000025	SCREW	WYP000025 SCREW Hexagonal Head, M8 X 20MM	$2.85	3
HT1	LYR500010	STUD	LYR500010 STUD M10 x 13MM, M10 X 20MM	$6.09	2
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER	$28.55	2
5B266	LR022779	GASKET - EXHAUST PIPE	LR022779 GASKET - EXHAUST PIPE Elbow Connector	$7.74	1
5F240	LR043732	DAMPER - DAMPING MASS	LR043732 DAMPER - DAMPING MASS Front	$61.19	1
5H221	LR071093	FILTER - DIESEL PARTICLE	LR071093 FILTER - DIESEL PARTICLE EU6 + DPF Emissions / Complete Assembly	$4,093.95	1
5H221	LR113244	FILTER - DIESEL PARTICLE	LR113244 FILTER - DIESEL PARTICLE EU6D Diesel + DPF Emissions / Complete Assembly / From: KA000001	$3,826.67	1
5K291A	LR035765	BRACKET - EXHAUST PIPE MOUNTING	LR035765 BRACKET - EXHAUST PIPE MOUNTING Rear	$30.11	1
5K291B	LR071726	BRACKET - EXHAUST PIPE MOUNTING	LR071726 BRACKET - EXHAUST PIPE MOUNTING Middle	$32.89	1
6767	LR044349	ELBOW - EXHAUST MANIFOLD	LR044349 ELBOW - EXHAUST MANIFOLD LH, Exhaust Manifold	$1,125.85	1
9450A	LR079223	GASKET - EXHAUST MANIFOLD	LR079223 GASKET - EXHAUST MANIFOLD RH, Downpipe	$15.09	1
9450B	LR079224	GASKET - EXHAUST MANIFOLD	LR079224 GASKET - EXHAUST MANIFOLD LH, Downpipe	$16.49	1
