Exhaust System (Front) (4.4L DOHC DITC V8 Diesel, Euro Stage 4 Emissions, Proconve L6 Emissions) ((V) TOFA999999) of Land Rover Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]

View All

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC] - Exhaust System (Front) (4.4L DOHC DITC V8 Diesel, Euro Stage 4 Emissions, Proconve L6 Emissions)...

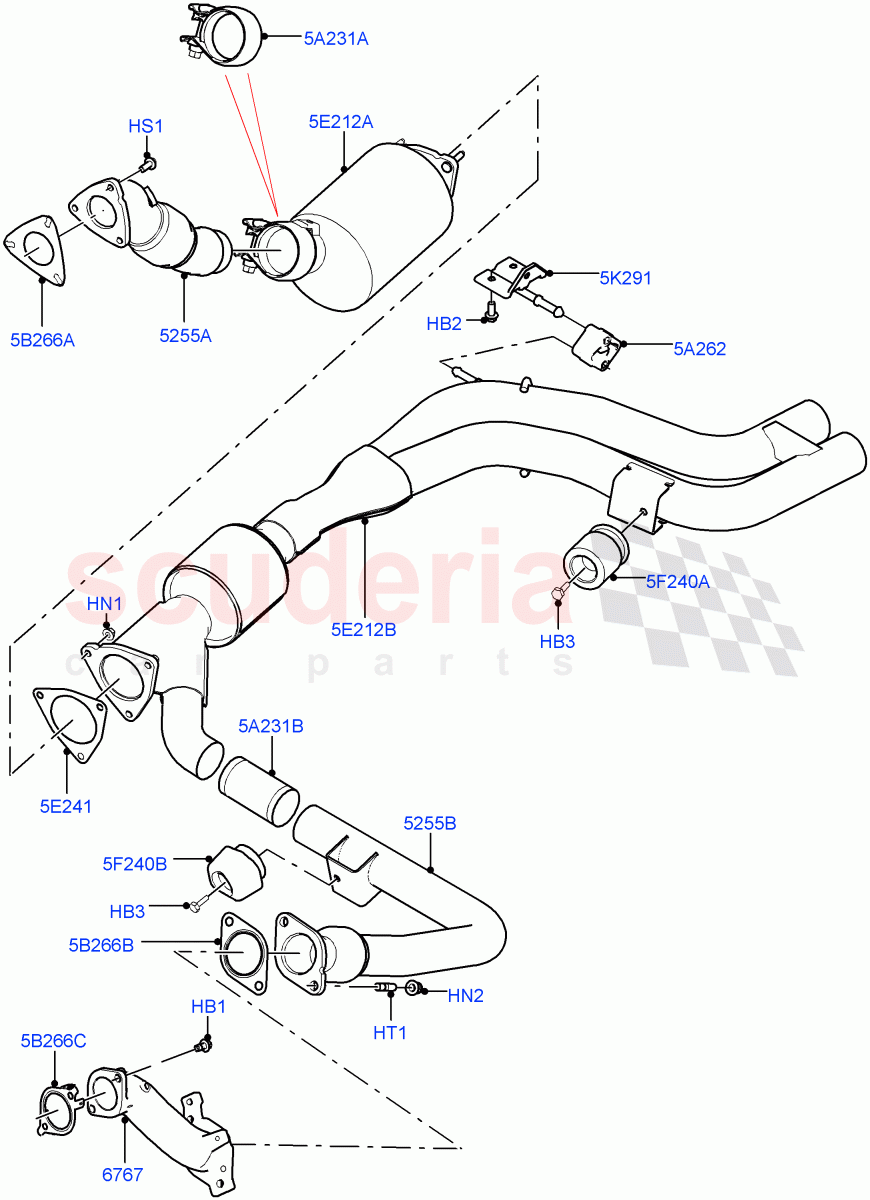

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	1419376	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYG500060	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020696	NUT - ADJUSTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025680	M10 FLANGED HEX NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WYP000025	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LYR500010	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044349	ELBOW - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022652	PIPE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038610	PIPE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCM500120	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035847	BRACKET - EXHAUST PIPE MOUNTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007465	CLAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WCM500080	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032289	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022779	GASKET - EXHAUST PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038566	CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038613	CATALYTIC CONVERTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043280	DAMPER - DAMPING MASS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR043732	DAMPER - DAMPING MASS	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	1419376	BOLT	1419376 BOLT Hexagonal Head, M8 X 16MM	-	2	Enquire
HB2	FS108206	BOLT	FS108206 BOLT Hexagonal Head, M8 X 20MM	-	3	Enquire
HB3	WYG500060	BOLT	WYG500060 BOLT M8 X 70 - 8.8, Self Locking	-	2	Enquire
HN1	LR020696	NUT - ADJUSTING	LR020696 NUT - ADJUSTING M8	-	3	Enquire
HN2	LR025680	M10 FLANGED HEX NUT	LR025680 M10 FLANGED HEX NUT M10	-	2	Enquire
HS1	WYP000025	SCREW	WYP000025 SCREW Hexagonal Head, M8 X 20MM	-	3	Enquire
HT1	LYR500010	STUD	LYR500010 STUD M10 x 13MM, M10 X 20MM	-	2	Enquire
5A231A	LR007465	CLAMP	LR007465 CLAMP 60MM, Catalyst	-	1	Enquire
5A231B	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM, Downpipe	-	1	Enquire
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER	-	1	Enquire
5B266A	WCM500080	GASKET - EXHAUST PIPE	WCM500080 GASKET - EXHAUST PIPE RH, Downpipe	-	1	Enquire
5B266B	LR032289	GASKET - EXHAUST PIPE	LR032289 GASKET - EXHAUST PIPE LH, Downpipe	-	1	Enquire
5B266C	LR022779	GASKET - EXHAUST PIPE	LR022779 GASKET - EXHAUST PIPE Elbow Connector	-	1	Enquire
5E212A	LR038566	CATALYTIC CONVERTER	LR038566 CATALYTIC CONVERTER Front, With Clamp	-	1	Enquire
5E212B	LR038613	CATALYTIC CONVERTER	LR038613 CATALYTIC CONVERTER Middle Exhaust Section	-	1	Enquire
5E241	WCM500120	GASKET - EXHAUST PIPE	WCM500120 GASKET - EXHAUST PIPE Catalyst	-	1	Enquire
5F240A	LR043280	DAMPER - DAMPING MASS	LR043280 DAMPER - DAMPING MASS Middle	-	1	Enquire
5F240B	LR043732	DAMPER - DAMPING MASS	LR043732 DAMPER - DAMPING MASS Front	-	1	Enquire
5K291	LR035847	BRACKET - EXHAUST PIPE MOUNTING	LR035847 BRACKET - EXHAUST PIPE MOUNTING	-	1	Enquire
5255A	LR022652	PIPE - EXHAUST	LR022652 PIPE - EXHAUST RH, Downpipe	-	1	Enquire
5255B	LR038610	PIPE - EXHAUST	LR038610 PIPE - EXHAUST LH, Downpipe	-	1	Enquire
6767	LR044349	ELBOW - EXHAUST MANIFOLD	LR044349 ELBOW - EXHAUST MANIFOLD LH, Exhaust Manifold	-	1	Enquire
