Name: Exhaust System (Rear, Muffler) (4.4L DOHC DITC V8 Diesel) ((V) FROMGA000001, (V) TOHA999999)
Rating: 4.1 (1 reviews)

View All

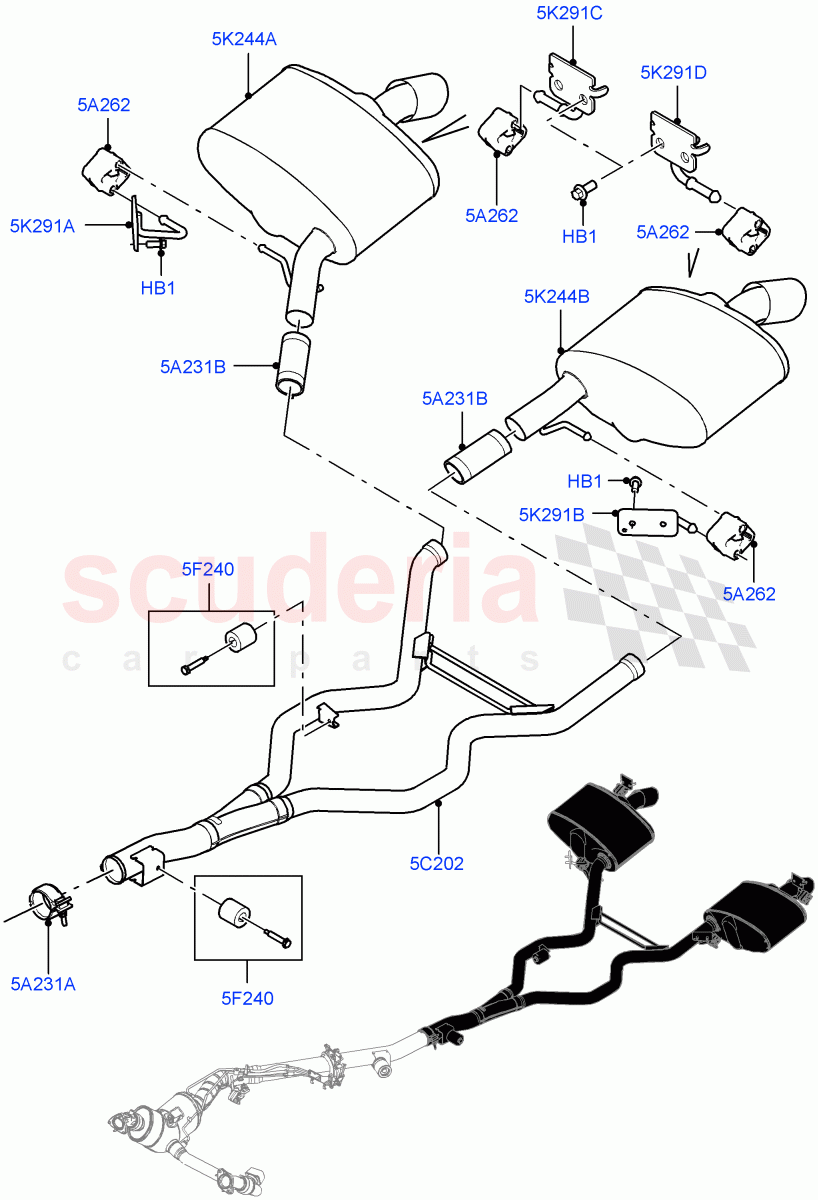

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	$28.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070295	DAMPER - EXHAUST SYSTEM	$60.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077709	CLAMP - EXHAUST	$42.40	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$81.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077730	MUFFLER - FRONT	$784.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077731	MUFFLER - REAR	$784.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035769	BRACKET - EXHAUST PIPE MOUNTING	$31.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035772	BRACKET - EXHAUST PIPE MOUNTING	$31.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047860	BRACKET - EXHAUST PIPE MOUNTING	$30.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR047861	BRACKET - EXHAUST PIPE MOUNTING	$67.40	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM IN STOCK	$2.23	8
5A231A	LR077709	CLAMP - EXHAUST	LR077709 CLAMP - EXHAUST 70MM, Middle	$42.40	1
5A231B	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM / From: GA000001	$81.53	2
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER	$28.55	2
5C202	LR077728	PIPE - EXHAUST	LR077728 PIPE - EXHAUST Stage V Plus DPF / Middle, RH/LH	$472.56	1
5C202	LR095163	PIPE - EXHAUST	LR095163 PIPE - EXHAUST EU6 + DPF Emissions / Middle, RH/LH	$481.69	1
5F240	LR070295	DAMPER - EXHAUST SYSTEM	LR070295 DAMPER - EXHAUST SYSTEM Includes Bolt	$60.47	2
5K244A	LR077730	MUFFLER - FRONT	LR077730 MUFFLER - FRONT RH	$784.62	1
5K244B	LR077731	MUFFLER - REAR	LR077731 MUFFLER - REAR LH	$784.62	1
5K291A	LR035769	BRACKET - EXHAUST PIPE MOUNTING	LR035769 BRACKET - EXHAUST PIPE MOUNTING RH, Front	$31.63	1
5K291B	LR035772	BRACKET - EXHAUST PIPE MOUNTING	LR035772 BRACKET - EXHAUST PIPE MOUNTING LH, Front	$31.63	1
5K291C	LR047860	BRACKET - EXHAUST PIPE MOUNTING	LR047860 BRACKET - EXHAUST PIPE MOUNTING Less Trailer Towing Hitch / RH Rear	$30.84	1
5K291D	LR047861	BRACKET - EXHAUST PIPE MOUNTING	LR047861 BRACKET - EXHAUST PIPE MOUNTING Less Trailer Towing Hitch / LH Rear	$67.40	1

Exhaust System (Rear, Muffler) (4.4L Dohc Ditc V8 Diesel) ((V) Fromga000001, (V) Toha999999)

Land Rover Range Rover Sport (2014+) [4.4 DOHC Diesel V8 DITC]
