Fuel Tank & Related Parts (3.0 V6 D Gen2 Twin Turbo, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6 Diesel Electric Hybrid Eng, 3.0 V6 D Gen2 Mono Turbo, 3.0L 24V DOHC V6 TC Diesel, 3.0 V6 D Low MT ROW) ((V) FROMEA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Fuel Tank & Related Parts (3.0 V6 D Gen2 Twin Turbo, 3.0L 24V V6 Turbo Diesel Std Flow, 3.0 V6...

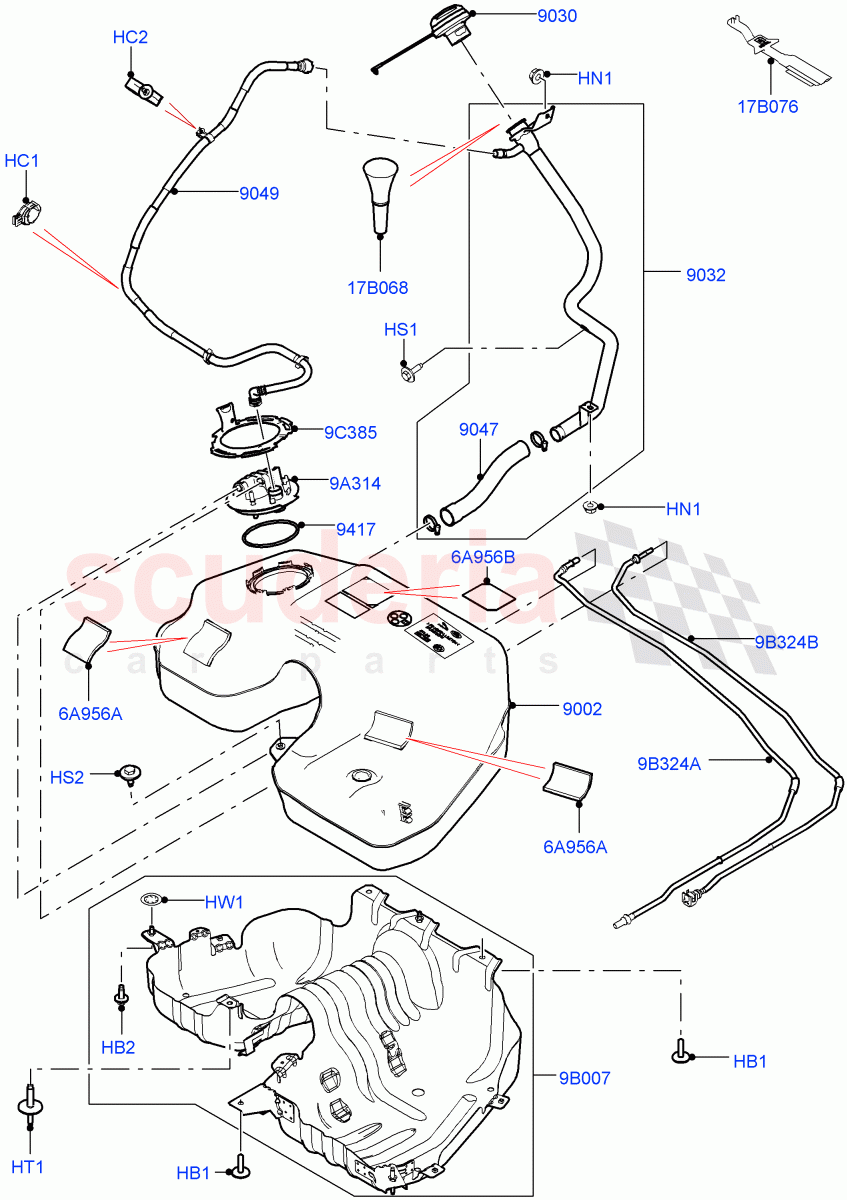

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034249	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037935	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044902	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094032	CLIP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500820	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094016	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WJ110007L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044702	TANK - FUEL	Enquire	To Order
	LR079552	TANK - FUEL	Enquire	To Order
	LR058293	TANK - FUEL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR053666	CAP - FUEL TANK FILLER	Enquire	To Order
	LR112190	CAP - FUEL TANK FILLER	Enquire	To Order
	LR138861	CAP - FUEL TANK FILLER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR051672	PIPE - FUEL FILLER	Enquire	To Order
	LR051673	PIPE - FUEL FILLER	Enquire	To Order
	LR116345	PIPE - FUEL FILLER	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR051676	HOSE - FILLER PIPE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR053462	TUBE - FUEL VAPOUR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117476	GASKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026196	COVER - FUEL SENDER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045366	SHIELD - FUEL TANK	Enquire	To Order
	LR071011	SHIELD - FUEL TANK	Enquire	To Order
	LR122714	SHIELD	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR041099	RING - RETAINING	Enquire	To Order
	LR079272	RING - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073691	FUNNEL - FUEL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR014047	RESTRICTOR - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061784	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025789	FOAM PAD - ENERGY ABSORBING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036706	TUBE - FUEL	Enquire	To Order
	LR086521	TUBE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036758	TUBE - FUEL	Enquire	To Order
	LR086520	TUBE - FUEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR034249	BOLT AND WASHER - HEX.HEAD	LR034249 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 x 37MM, Shield / From: EA000001	-	3	Enquire
HB2	LR037935	BOLT AND WASHER - HEX.HEAD	LR037935 BOLT AND WASHER - HEX.HEAD Hexagonal Head, M10 X 25MM, Shield / From: EA000001	-	2	Enquire
HC1	LR044902	CLIP - HOSE	LR044902 CLIP - HOSE 10-25 X 1.5-3, Plastic / From: EA000001	-	1	Enquire
HC2	LR094032	CLIP - HOSE	LR094032 CLIP - HOSE Plastic, Upper / From: EA000001	-	4	Enquire
HN1	FN106046	NUT - HEX.	FN106046 NUT - HEX. Hexagonal Head, M6 / From: EA000001	-	2	Enquire
HS1	AYP500110	SCREW	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM / From: EA000001	-	2	Enquire
HS2	RYG500820	SCREW AND WASHER	RYG500820 SCREW AND WASHER Hexagonal Head, M6 X 16MM / From: EA000001	-	2	Enquire
HT1	LR094016	STUD	LR094016 STUD Hexagonal Head, M10 X 41 + M8 X 22, Shield / From: EA000001	-	2	Enquire
HW1	WJ110007L	WASHER	WJ110007L WASHER 10MM, Fuel Tank, Shield / From: EA000001	-	3	Enquire
6A956A	LR061784	FOAM PAD - ENERGY ABSORBING	LR061784 FOAM PAD - ENERGY ABSORBING 85mm x 65mm x 2mm / From: EA000001	-	1	Enquire
6A956B	LR025789	FOAM PAD - ENERGY ABSORBING	LR025789 FOAM PAD - ENERGY ABSORBING 100mm x 80mm x 10mm / To: FA999999	-	2	Enquire
9A314	LR026196	COVER - FUEL SENDER	LR026196 COVER - FUEL SENDER From: EA000001 / To: GA999999	-	1	Enquire
9B007	LR045366	SHIELD - FUEL TANK	LR045366 SHIELD - FUEL TANK Protective / To: FA999999	-	1	Enquire
9B007	LR071011	SHIELD - FUEL TANK	LR071011 SHIELD - FUEL TANK Protective / From: GA000001 / To: GA999999	-	1	Enquire
9B007	LR122714	SHIELD	LR122714 SHIELD Protective / From: HA000001 / To: LA718591	-	1	Enquire
9B007	LR122714	SHIELD	LR122714 SHIELD Protective / From: LA718592 / To: LA722981	-	1	Enquire
9B007	LR140295	SHIELD	LR140295 SHIELD Protective / From: LA722982	-	1	Enquire
9B324A	LR036706	TUBE - FUEL	LR036706 TUBE - FUEL Feed / To: GA999999	-	1	Enquire
9B324A	LR086521	TUBE - FUEL	LR086521 TUBE - FUEL Feed / From: HA000001	-	1	Enquire
9B324B	LR036758	TUBE - FUEL	LR036758 TUBE - FUEL Return / To: GA999999	-	1	Enquire
9B324B	LR086520	TUBE - FUEL	LR086520 TUBE - FUEL Return / From: HA000001	-	1	Enquire
9C385	LR041099	RING - RETAINING	LR041099 RING - RETAINING Cover / To: FA999999	-	1	Enquire
9C385	LR079272	RING - RETAINING	LR079272 RING - RETAINING Cover / From: GA000001	-	1	Enquire
17B068	LR073691	FUNNEL - FUEL FILLER	LR073691 FUNNEL - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: FA000001	-	1	Enquire
17B076	LR014047	RESTRICTOR - FUEL	LR014047 RESTRICTOR - FUEL From: EA000001	-	1	Enquire
9002	LR044702	TANK - FUEL	LR044702 TANK - FUEL To: EA999999	-	1	Enquire
9002	LR079552	TANK - FUEL	LR079552 TANK - FUEL From: FA541943 / To: GA999999	-	1	Enquire
9002	LR058293	TANK - FUEL	LR058293 TANK - FUEL From: FA000001 / To: FA541942	-	1	Enquire
9002	LR088935	TANK - FUEL	LR088935 TANK - FUEL From: HA000001 / To: HA145694	-	1	Enquire
9002	LR086525	TANK - FUEL	LR086525 TANK - FUEL From: HA145695 / To: JA192716	-	1	Enquire
9002	LR116066	TANK - FUEL	LR116066 TANK - FUEL From: JA192717	-	1	Enquire
9030	LR053666	CAP - FUEL TANK FILLER	LR053666 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Diesel / From: EA000001 / To: MA757797	-	1	Enquire
9030	LR112190	CAP - FUEL TANK FILLER	LR112190 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan / From: KA000001 / To: LA747220	-	1	Enquire
9030	LR138861	CAP - FUEL TANK FILLER	LR138861 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Diesel / From: MA757798	-	1	Enquire
9030	LR138719	CAP - FUEL TANK FILLER	LR138719 CAP - FUEL TANK FILLER Fuel Tank Filler Neck - Japan / From: LA747221	-	1	Enquire
9032	LR051672	PIPE - FUEL FILLER	LR051672 PIPE - FUEL FILLER Fuel Tank Filler Neck - Diesel / From: EA000001	-	1	Enquire
9032	LR051673	PIPE - FUEL FILLER	LR051673 PIPE - FUEL FILLER Fuel Tank Filler Neck - Japan / From: EA000001	-	1	Enquire
9032	LR116345	PIPE - FUEL FILLER	LR116345 PIPE - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: JA409317	-	1	Enquire
9032	LR079275	PIPE - FUEL FILLER	LR079275 PIPE - FUEL FILLER Stage V Plus DPF / From: FA000001 / To: FA535663	-	1	Enquire
9032	LR079275	PIPE - FUEL FILLER	LR079275 PIPE - FUEL FILLER Fuel Tank Filler Neck With Inhibit / From: FA535664 / To: JA409316	-	1	Enquire
9047	LR051676	HOSE - FILLER PIPE	LR051676 HOSE - FILLER PIPE From: EA000001	-	1	Enquire
9049	LR053462	TUBE - FUEL VAPOUR	LR053462 TUBE - FUEL VAPOUR From: EA000001	-	1	Enquire
9417	LR117476	GASKET	LR117476 GASKET Cover, O-Ring / From: EA000001	-	1	Enquire
