Fuel Cooler Assembly (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0 V6 D Gen2 Mono Turbo) ((V) FROMFA000001, (V) TOGA999999) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Fuel Cooler Assembly (3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 4WD, 3.0 V6 D Gen2 Mono...

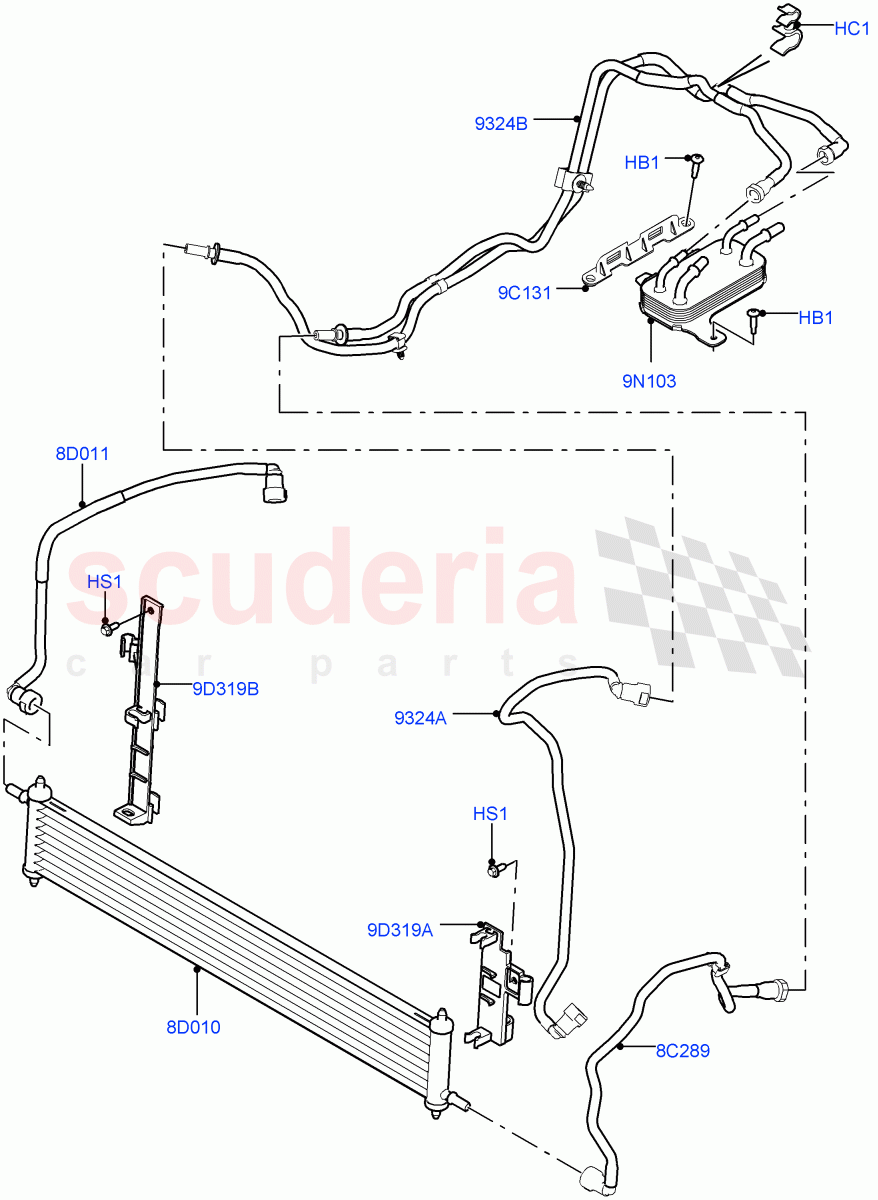

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR034354	BOLT - PAN - TORX	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024832	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP500070	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062088	HOSE - WATER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034575	RADIATOR - AUXILIARY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062093	HOSE - FUEL COOLER INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036521	HOSE - FUEL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR036520	HOSE - FUEL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR042509	BRACKET - FUEL COOLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038811	COOLER - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062426	BRACKET - RADIATOR	Enquire	To Order
	LR077414	BRACKET - RADIATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062428	BRACKET	Enquire	To Order
	LR077417	BRACKET - RADIATOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR034354	BOLT - PAN - TORX	LR034354 BOLT - PAN - TORX M6 x 19MM, Torx / From: FA000001	-	3	Enquire
HC1	LR024832	CLIP	LR024832 CLIP 6-6.5 + 9.5-10.5 Pipe Swivel Plastic, Double / From: FA000001	-	1	Enquire
HS1	PYP500070	SCREW	PYP500070 SCREW 6 x 16MM, Hexagonal Head / From: FA000001	-	2	Enquire
8C289	LR062088	HOSE - WATER	LR062088 HOSE - WATER Fuel Coolant Cooler, Outlet / From: FA000001	-	1	Enquire
8D010	LR034575	RADIATOR - AUXILIARY	LR034575 RADIATOR - AUXILIARY Fuel Coolant Cooler / From: FA000001	-	1	Enquire
8D011	LR062093	HOSE - FUEL COOLER INLET	LR062093 HOSE - FUEL COOLER INLET Fuel Coolant Cooler, Inlet / From: FA000001	-	1	Enquire
9C131	LR042509	BRACKET - FUEL COOLER	LR042509 BRACKET - FUEL COOLER For Fuel Cooler / From: FA000001	-	1	Enquire
9D319A	LR062426	BRACKET - RADIATOR	LR062426 BRACKET - RADIATOR LH, Radiator Mounting / From: FA000001 / To: FA999999	-	1	Enquire
9D319A	LR077414	BRACKET - RADIATOR	LR077414 BRACKET - RADIATOR LH, Radiator Mounting / From: GA000001	-	1	Enquire
9D319B	LR062428	BRACKET	LR062428 BRACKET RH, Radiator Mounting / From: FA000001 / To: FA999999	-	1	Enquire
9D319B	LR077417	BRACKET - RADIATOR	LR077417 BRACKET - RADIATOR RH, Radiator Mounting / From: GA000001	-	1	Enquire
9N103	LR038811	COOLER - FUEL	LR038811 COOLER - FUEL Main / From: FA000001	-	1	Enquire
9324A	LR036521	HOSE - FUEL COOLER	LR036521 HOSE - FUEL COOLER From: FA000001	-	1	Enquire
9324B	LR036520	HOSE - FUEL COOLER	LR036520 HOSE - FUEL COOLER Fuel Cooler Inlet, Outlet, Set Of 2 Pieces / From: FA000001 / To: GA999999	-	1	Enquire
