Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Fuel Cooler Assembly (3.0 V6 Diesel Electric Hybrid Eng, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, 3.0...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR034354 BOLT - PAN - TORX Enquire To Order
Photo Part No Description Price (each) Stock
LR024832 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
PYP500070 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR049010 HOSE - FUEL COOLER Enquire To Order
LR072682 HOSE - FUEL COOLER Enquire To Order
LR071058 HOSE - FUEL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR048865 BRACKET - RADIATOR UPPER Enquire To Order
Photo Part No Description Price (each) Stock
LR048867 BRACKET - RADIATOR Enquire To Order
LR071016 BRACKET - RADIATOR Enquire To Order
LR071016 BRACKET - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR048866 BRACKET - RADIATOR Enquire To Order
LR071015 DEFLECTOR Enquire To Order
LR071015 DEFLECTOR Enquire To Order
Photo Part No Description Price (each) Stock
LR049013 HOSE - ENGINE COOLANT RETURN Enquire To Order
LR071048 HOSE - COOLER TO TUBE Enquire To Order
LR087172 HOSE - COOLER TO TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR034575 RADIATOR - AUXILIARY Enquire To Order
Photo Part No Description Price (each) Stock
LR036520 HOSE - FUEL COOLER Enquire To Order
LR071060 HOSE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR049009 HOSE - FUEL COOLER Enquire To Order
LR071062 HOSE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR042509 BRACKET - FUEL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
LR038811 COOLER - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR034561 BRACKET - RADIATOR Enquire To Order
LR126009 BRACKET Enquire To Order
LR077417 BRACKET - RADIATOR Enquire To Order
Photo Part No Description Price (each) Stock
LR034559 BRACKET - RADIATOR Enquire To Order
LR126008 BRACKET - RADIATOR Enquire To Order
LR077414 BRACKET - RADIATOR Enquire To Order
View All

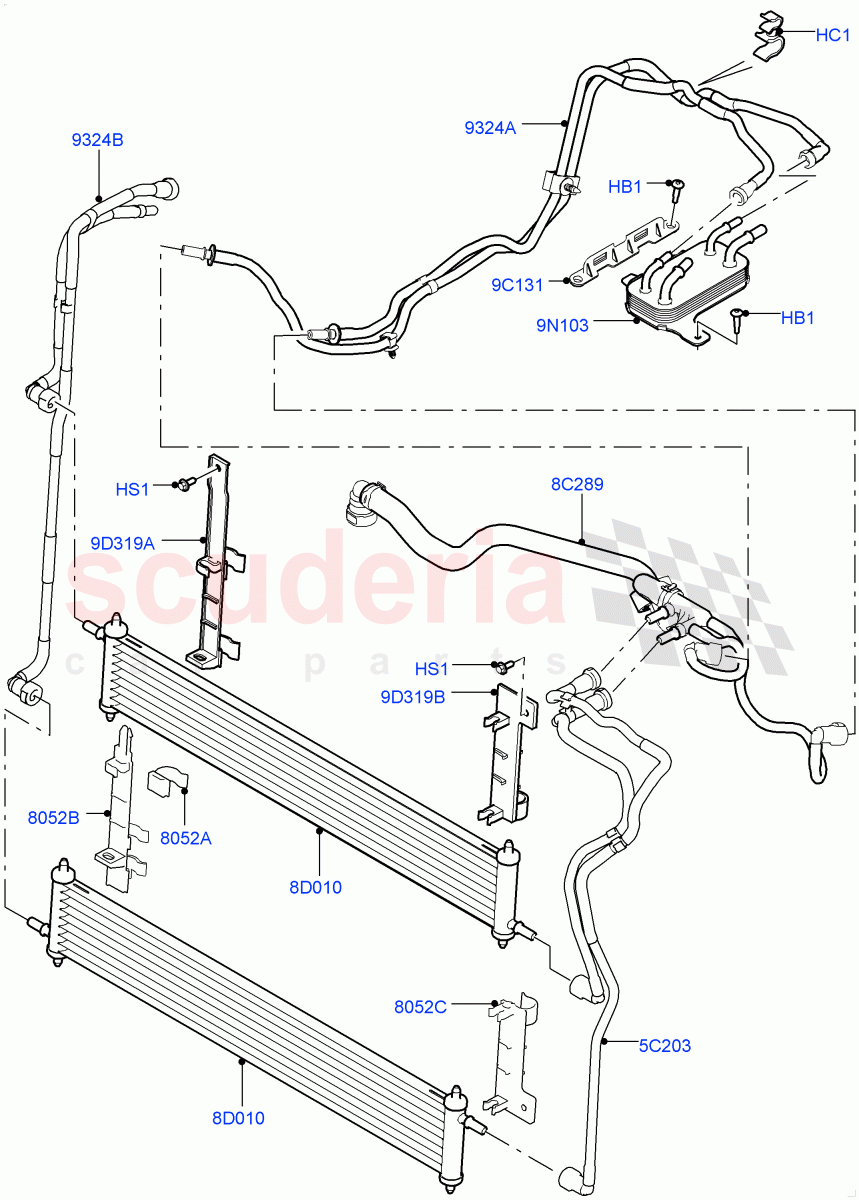

Fuel Cooler Assembly (3.0 V6 Diesel Electric Hybrid Eng, 8 Speed Auto Trans ZF 8HP70 HEV 4WD, 3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR034354
BOLT - PAN - TORX
M6 x 19MM, Torx / From: EA000001 		- 3 Enquire
HC1 LR024832
CLIP
6-6.5 + 9.5-10.5 Pipe Swivel Plastic, Double / From: EA000001 		- 1 Enquire
HS1 PYP500070
SCREW
6 x 16MM, Hexagonal Head / From: EA000001 		- 3 Enquire
5C203 LR049010
HOSE - FUEL COOLER
3.0 V6 Diesel Electric Hybrid Eng / Fuel Coolant Cooler, Inlet, Set Of 2 Pieces / To: EA601273 		- 1 Enquire
5C203 LR072682
HOSE - FUEL COOLER
3.0 V6 Diesel Electric Hybrid Eng / Fuel Coolant Cooler, Inlet, Set Of 2 Pieces / From: EA601274 		- 1 Enquire
5C203 LR071058
HOSE - FUEL COOLER
3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Fuel Coolant Cooler, Inlet, Set Of 2 Pieces / From: GA000001 		- 1 Enquire
8C289 LR049013
HOSE - ENGINE COOLANT RETURN
3.0 V6 Diesel Electric Hybrid Eng / Fuel Coolant Cooler, Inlet, With Valve / From: EA000001 		- 1 Enquire
8C289 LR071048
HOSE - COOLER TO TUBE
3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Fuel Coolant Cooler, Inlet, With Valve / From: GA000001 / To: GA594309 		- 1 Enquire
8C289 LR087172
HOSE - COOLER TO TUBE
3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Fuel Coolant Cooler, Inlet, With Valve / From: GA594310 		- 1 Enquire
8D010 LR034575
RADIATOR - AUXILIARY
Fuel Coolant Cooler / From: EA000001 		- 2 Enquire
9C131 LR042509
BRACKET - FUEL COOLER
For Fuel Cooler / From: EA000001 		- 1 Enquire
9D319A LR034561
BRACKET - RADIATOR
3.0 V6 D Gen2 Twin Turbo / RH, Radiator Mounting, Upper / From: EA000001 / To: KA849406 		- 1 Enquire
9D319A LR126009
BRACKET
3.0 V6 D Gen2 Mono Turbo / RH, Radiator Mounting, Upper / From: KA849407 		- 1 Enquire
9D319A LR077417
BRACKET - RADIATOR
3.0 V6 Diesel Electric Hybrid Eng / RH, Radiator Mounting, Upper / From: EA000001 		- 1 Enquire
9D319B LR034559
BRACKET - RADIATOR
3.0 V6 D Gen2 Mono Turbo / LH, Radiator Mounting, Upper / From: EA000001 / To: KA849406 		- 1 Enquire
9D319B LR126008
BRACKET - RADIATOR
3.0 V6 D Gen2 Twin Turbo / LH, Radiator Mounting, Upper / From: KA849407 		- 1 Enquire
9D319B LR077414
BRACKET - RADIATOR
3.0 V6 Diesel Electric Hybrid Eng / LH, Radiator Mounting, Upper / From: EA000001 		- 1 Enquire
9N103 LR038811
COOLER - FUEL
Main / From: EA000001 		- 1 Enquire
8052A LR048865
BRACKET - RADIATOR UPPER
RH, Lower, Radiator Mounting, Support / From: EA000001 		- 1 Enquire
8052B LR048867
BRACKET - RADIATOR
3.0 V6 Diesel Electric Hybrid Eng / RH, Lower, Main, Radiator Mounting / From: EA000001 / To: EA999999 		- 1 Enquire
8052B LR071016
BRACKET - RADIATOR
3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / RH, Lower, Main, Radiator Mounting / From: GA000001 		- 1 Enquire
8052B LR071016
BRACKET - RADIATOR
3.0 V6 Diesel Electric Hybrid Eng / RH, Lower, Main, Radiator Mounting / From: FA000001 		- 1 Enquire
8052C LR048866
BRACKET - RADIATOR
3.0 V6 Diesel Electric Hybrid Eng / LH, Lower, Radiator Mounting / From: EA000001 / To: EA999999 		- 1 Enquire
8052C LR071015
DEFLECTOR
3.0 V6 D Gen2 Mono Turbo / LH, Radiator Mounting, Upper / From: GA000001 		- 1 Enquire
8052C LR071015
DEFLECTOR
3.0 V6 Diesel Electric Hybrid Eng / LH, Lower, Radiator Mounting / From: FA000001 		- 1 Enquire
9324A LR036520
HOSE - FUEL COOLER
3.0 V6 Diesel Electric Hybrid Eng / Fuel Cooler Inlet, Outlet, Set Of 2 Pieces / From: EA000001 		- 1 Enquire
9324A LR071060
HOSE - FUEL
3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Fuel Cooler Inlet, Outlet, Set Of 2 Pieces / From: GA000001 		- 1 Enquire
9324B LR049009
HOSE - FUEL COOLER
3.0 V6 Diesel Electric Hybrid Eng / Fuel Coolant Cooler, Outlet, Set Of 2 Pieces / From: EA000001 		- 1 Enquire
9324B LR071062
HOSE - FUEL
3.0 V6 D Gen2 Twin Turbo, 8 Speed Auto Trans ZF 8HP70 HEV 4WD / Fuel Coolant Cooler, Outlet, Set Of 2 Pieces / From: GA000001 		- 1 Enquire
