Fuel Lines (Rear) (3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V Dohc V6 Tc Diesel)

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

Find Your Part

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Fuel Lines (Rear) (3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS106166 SCREW $1.19 IN STOCK
Photo Part No Description Price (each) Stock
LR037467 PIPE - FUEL $166.81 To Order
LR052904 PIPE - FUEL $166.81 To Order
LR088541 PIPE - FUEL $157.74 To Order
Photo Part No Description Price (each) Stock
LR068074 BRACKET - FUEL TUBE SUPPORT $30.46 To Order
LR082760 BRACKET - FUEL TUBE SUPPORT $10.70 To Order
Photo Part No Description Price (each) Stock
LR044705 TUBE - FUEL SUPPLY AND VAPOUR $121.18 To Order
LR055689 TUBE - FUEL SUPPLY AND VAPOUR $269.07 To Order
LR062453 TUBE - FUEL SUPPLY AND VAPOUR $384.68 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR044464 PAD - FOAM $28.18 To Order
View All

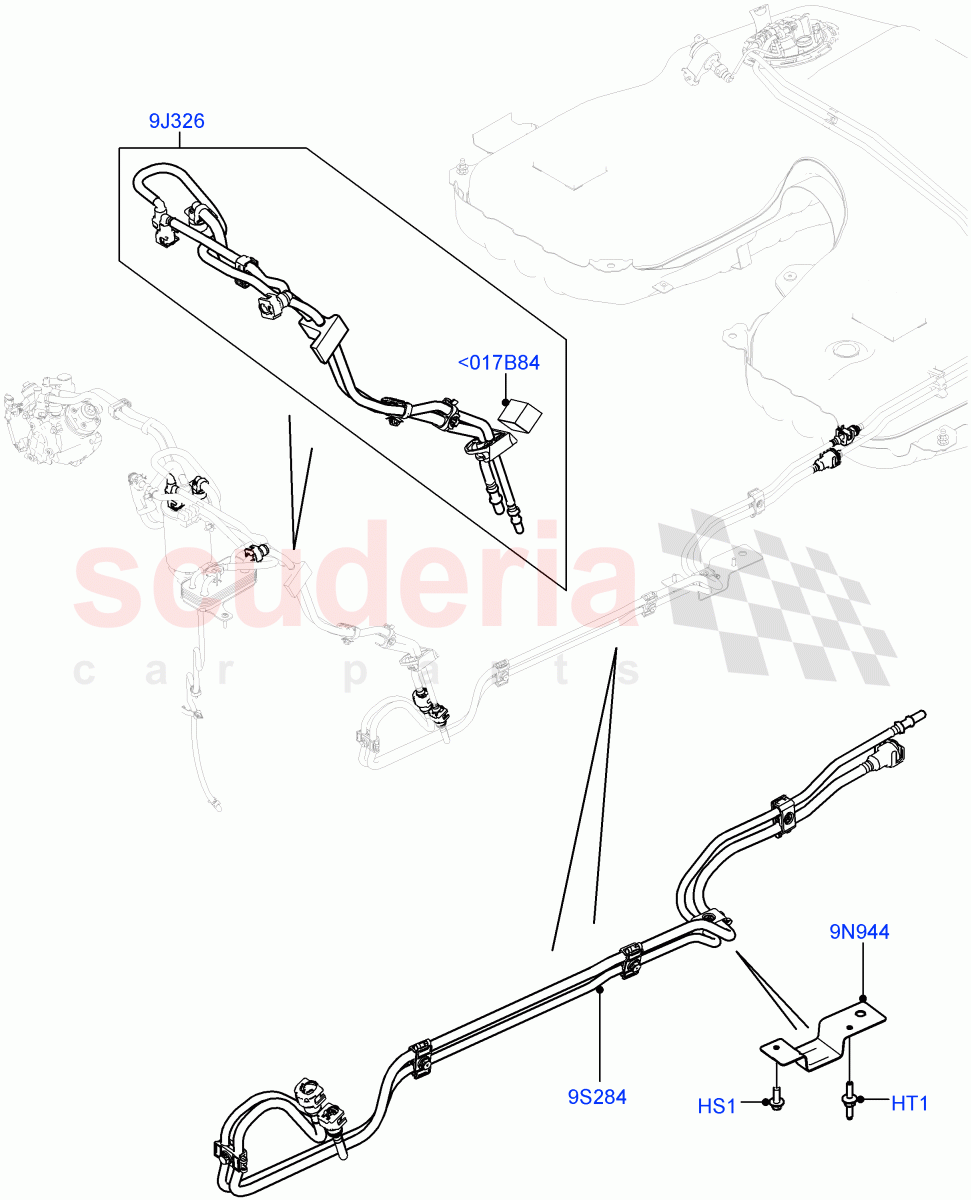

Fuel Lines (Rear) (3.0L 24V V6 Turbo Diesel Std Flow, 3.0L 24V DOHC V6 TC Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<017B84 LR044464
PAD - FOAM 		$28.18 1
HS1 FS106166
SCREW
Hexagonal Head, M6 X 16MM
IN STOCK 		$1.19 2
HT1 LR071705
STUD
M6 X 20 + M6 X 16 		$3.94 1
9J326 LR037467
PIPE - FUEL
Feed, From Fuel Cooler To Fuel Filter, Front, Return, Set Of 3 Pieces / To: EA307068 		$166.81 1
9J326 LR052904
PIPE - FUEL
Feed, From Fuel Cooler To Fuel Filter, Front, Return, Set Of 3 Pieces / From: EA307069 / To: GA112867 		$166.81 1
9J326 LR088541
PIPE - FUEL
Feed, From Fuel Cooler To Fuel Filter, Front, Return, Set Of 3 Pieces / From: GA112868 		$157.74 1
9N944 LR068074
BRACKET - FUEL TUBE SUPPORT
To: GA999999 		$30.46 1
9N944 LR082760
BRACKET - FUEL TUBE SUPPORT
From: HA000001 		$10.70 1
9S284 LR044705
TUBE - FUEL SUPPLY AND VAPOUR
Rear, Return, Set Of 2 Pieces, Supply / To: EA314013 		$121.18 1
9S284 LR055689
TUBE - FUEL SUPPLY AND VAPOUR
Rear, Return, Set Of 2 Pieces, Supply / From: EA314014 / To: EA362928 		$269.07 1
9S284 LR062453
TUBE - FUEL SUPPLY AND VAPOUR
Rear, Set Of 2 Pieces / From: EA362929 / To: EA390189 		$384.68 1
9S284 LR072676
TUBE - FUEL SUPPLY AND VAPOUR
Rear, Set Of 2 Pieces / From: EA390190 		$318.47 1
