Fuel Lines (Front) (3.0 V6 Diesel) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

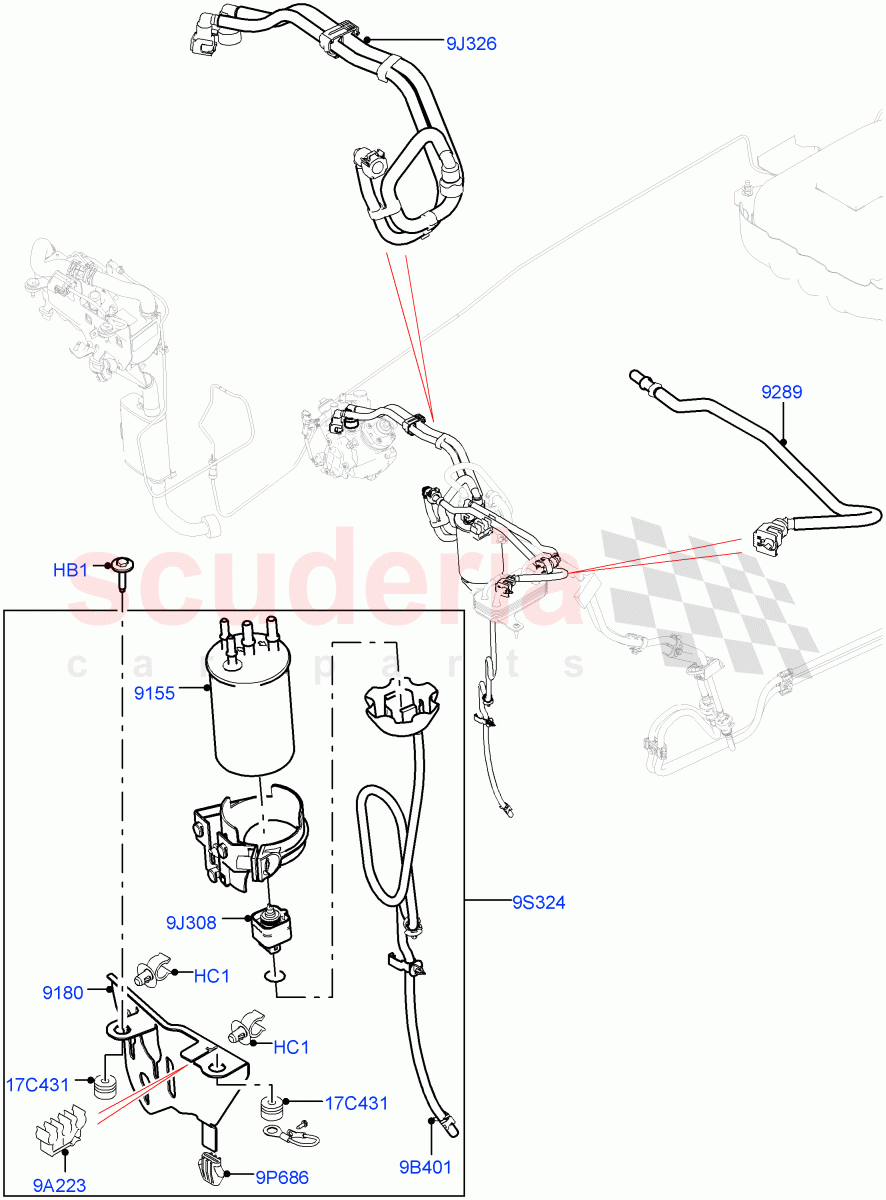

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Fuel Lines (Front) (3.0 V6 Diesel)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FB106066	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004596	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041978	FILTER - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040360	BRACKET - FUEL FILTER	Enquire	To Order
	LR064222	Bracket - Fuel Filter	Enquire	To Order
	LR067324	BRACKET - FUEL FILTER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR036736	TUBE - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040124	CLIP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040357	TUBE - DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084452	SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037461	TUBE - FUEL	Enquire	To Order
	LR062825	TUBE - FUEL	Enquire	To Order
	LR088539	TUBE - FUEL	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR081537	GROMMET - ADAPTOR TO BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045806	FILTER - FUEL - PRIMARY	Enquire	To Order
	LR064182	FILTER - FUEL - PRIMARY	Enquire	To Order
	LR067323	FILTER - FUEL - PRIMARY	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR081530	GROMMET - FUEL FILTER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	FB106066	BOLT	FB106066 BOLT M6 x 30MM	-	2	Enquire
HC1	LR004596	CLIP	LR004596 CLIP 12 x 7.8X.8/4, Plastic	-	2	Enquire
9A223	LR040124	CLIP	LR040124 CLIP Triple	-	1	Enquire
9B401	LR040357	TUBE - DRAIN	LR040357 TUBE - DRAIN Drain, Less Sensor	-	1	Enquire
9J308	LR084452	SENSOR	LR084452 SENSOR Sensor - Water Detector	-	1	Enquire
9J326	LR037461	TUBE - FUEL	LR037461 TUBE - FUEL Feed, Return, Set Of 2 Pieces / To: EA999999	-	1	Enquire
9J326	LR062825	TUBE - FUEL	LR062825 TUBE - FUEL Feed, Return, Set Of 2 Pieces / From: FA000001 / To: GA112867	-	1	Enquire
9J326	LR088539	TUBE - FUEL	LR088539 TUBE - FUEL Feed, Return, Set Of 2 Pieces / From: GA112868 / To: HA136675	-	1	Enquire
9J326	LR105299	TUBE - FUEL	LR105299 TUBE - FUEL Feed, Return, Set Of 2 Pieces / From: HA149649	-	1	Enquire
9J326	LR094012	TUBE - FUEL	LR094012 TUBE - FUEL Feed, Return, Set Of 2 Pieces / From: HA136676 / To: HA149648	-	1	Enquire
9P686	LR081537	GROMMET - ADAPTOR TO BRACKET	LR081537 GROMMET - ADAPTOR TO BRACKET From: FA000001	-	1	Enquire
9S324	LR045806	FILTER - FUEL - PRIMARY	LR045806 FILTER - FUEL - PRIMARY Complete Assembly, Primary, With Bracket / To: EA999999	-	1	Enquire
9S324	LR064182	FILTER - FUEL - PRIMARY	LR064182 FILTER - FUEL - PRIMARY Complete Assembly, Primary, With Bracket / From: FA000001 / To: FA516469	-	1	Enquire
9S324	LR067323	FILTER - FUEL - PRIMARY	LR067323 FILTER - FUEL - PRIMARY Complete Assembly, Primary, With Bracket / From: FA516470 / To: FA999999	-	1	Enquire
9S324	LR081085	FILTER - FUEL - PRIMARY	LR081085 FILTER - FUEL - PRIMARY Complete Assembly, Primary, With Bracket / From: GA000001 / To: GA591157	-	1	Enquire
9S324	LR084459	FILTER - FUEL - PRIMARY	LR084459 FILTER - FUEL - PRIMARY Complete Assembly, Primary, With Bracket / From: GA591158	-	1	Enquire
17C431	LR081530	GROMMET - FUEL FILTER	LR081530 GROMMET - FUEL FILTER	-	2	Enquire
9155	LR041978	FILTER - FUEL	LR041978 FILTER - FUEL Less Bracket, Primary	-	1	Enquire
9180	LR040360	BRACKET - FUEL FILTER	LR040360 BRACKET - FUEL FILTER To: EA999999	-	1	Enquire
9180	LR064222	Bracket - Fuel Filter	LR064222 Bracket - Fuel Filter From: FA000001 / To: FA516469	-	1	Enquire
9180	LR067324	BRACKET - FUEL FILTER	LR067324 BRACKET - FUEL FILTER From: FA516470 / To: FA999999	-	1	Enquire
9180	LR081087	BRACKET - FUEL FILTER	LR081087 BRACKET - FUEL FILTER From: GA000001	-	1	Enquire
9289	LR036736	TUBE - FUEL	LR036736 TUBE - FUEL Cooler, Inlet	-	1	Enquire
