Name: Rear Exhaust System (3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001, (V) TOHA999999)
Rating: 4.8 (1 reviews)

Rear Exhaust System (3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001, (V) TOHA999999) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Rear Exhaust System (3.0 V6 D Gen2 Mono Turbo, 3.0 V6 D Gen2 Twin Turbo) ((V) FROMFA000001, (V)...

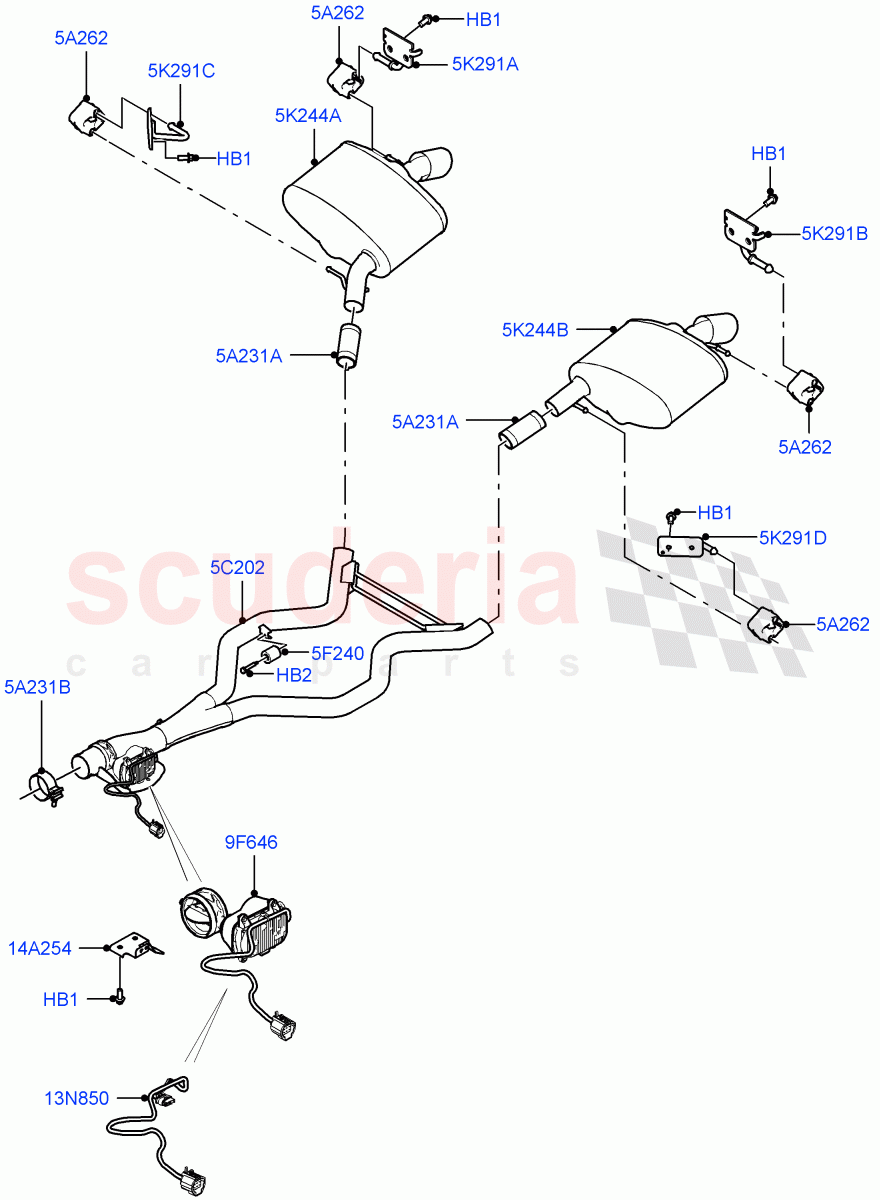

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	$2.23	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYG500060	BOLT	$2.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025064	INSULATOR - RUBBER	$28.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR072830	RESONATOR - EXHAUST SYSTEM	$979.06	To Order
	LR072831	RESONATOR - EXHAUST SYSTEM	$918.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR070295	DAMPER - EXHAUST SYSTEM	$60.47	To Order
	LR090829	DAMPER - EXHAUST SYSTEM	$89.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125101	PIPE - INTERMEDIATE	$2,453.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125103	PIPE - INTERMEDIATE	$2,453.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063031	BRACKET - WIRING CONNECTOR	$16.10	To Order

Photo	Part No	Description	Price (each)	Stock
	WCL500030	CLAMP - EXHAUST	$81.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR077709	CLAMP - EXHAUST	$42.40	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062684	MUFFLER - REAR	$732.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062685	MUFFLER - REAR	$575.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063756	BRACKET - EXHAUST PIPE MOUNTING	$64.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063757	BRACKET - EXHAUST PIPE MOUNTING	$32.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035769	BRACKET - EXHAUST PIPE MOUNTING	$31.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035772	BRACKET - EXHAUST PIPE MOUNTING	$31.63	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	FS108206	BOLT IN STOCK	FS108206 BOLT Hexagonal Head, M8 X 20MM / From: FA000001 IN STOCK	$2.23	10
HB2	WYG500060	BOLT	WYG500060 BOLT M8 X 70 - 8.8, Self Locking / From: FA000001	$2.53	1
5A231A	WCL500030	CLAMP - EXHAUST	WCL500030 CLAMP - EXHAUST 55MM / From: FA000001	$81.53	2
5A231B	LR077709	CLAMP - EXHAUST	LR077709 CLAMP - EXHAUST 70MM, Middle / From: FA000001	$42.40	1
5A262	LR025064	INSULATOR - RUBBER	LR025064 INSULATOR - RUBBER From: FA000001	$28.55	4
5C202	LR072830	RESONATOR - EXHAUST SYSTEM	LR072830 RESONATOR - EXHAUST SYSTEM Stage V Plus DPF / Middle / From: FA000001	$979.06	1
5C202	LR072831	RESONATOR - EXHAUST SYSTEM	LR072831 RESONATOR - EXHAUST SYSTEM LEV 160 / Middle / From: GA000001	$918.25	1
5F240	LR070295	DAMPER - EXHAUST SYSTEM	LR070295 DAMPER - EXHAUST SYSTEM From: FA000001 / To: GA117996	$60.47	1
5F240	LR090829	DAMPER - EXHAUST SYSTEM	LR090829 DAMPER - EXHAUST SYSTEM From: GA117997	$89.66	1
5K244A	LR062684	MUFFLER - REAR	LR062684 MUFFLER - REAR RH / From: FA000001	$732.69	1
5K244B	LR062685	MUFFLER - REAR	LR062685 MUFFLER - REAR LH / From: FA000001	$575.59	1
5K291A	LR063756	BRACKET - EXHAUST PIPE MOUNTING	LR063756 BRACKET - EXHAUST PIPE MOUNTING Less Trailer Towing Hitch / Rear RH / From: FA000001	$64.04	1
5K291B	LR063757	BRACKET - EXHAUST PIPE MOUNTING	LR063757 BRACKET - EXHAUST PIPE MOUNTING Less Trailer Towing Hitch / Rear LH / From: FA000001	$32.34	1
5K291C	LR035769	BRACKET - EXHAUST PIPE MOUNTING	LR035769 BRACKET - EXHAUST PIPE MOUNTING Front RH / From: FA000001	$31.63	1
5K291D	LR035772	BRACKET - EXHAUST PIPE MOUNTING	LR035772 BRACKET - EXHAUST PIPE MOUNTING From: FA000001	$31.63	1
9F646	LR125101	PIPE - INTERMEDIATE	LR125101 PIPE - INTERMEDIATE From: FA000001	$2,453.71	1
13N850	LR125103	PIPE - INTERMEDIATE	LR125103 PIPE - INTERMEDIATE Electronic Exhaust Valve Actuator / From: FA000001	$2,453.71	1
14A254	LR063031	BRACKET - WIRING CONNECTOR	LR063031 BRACKET - WIRING CONNECTOR From: FA000001	$16.10	1
