Name: Exhaust Sensors And Modules (3.0 V6 D Gen2 Mono Turbo, Stage V Plus DPF, Proconve L6 Emissions) ((V) FROMFA000001)
Rating: 5.0 (1 reviews)

Exhaust Sensors And Modules (3.0 V6 D Gen2 Mono Turbo, Stage V Plus DPF, Proconve L6 Emissions) ((V) FROMFA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Exhaust Sensors And Modules (3.0 V6 D Gen2 Mono Turbo, Stage V Plus DPF, Proconve L6 Emissions)...

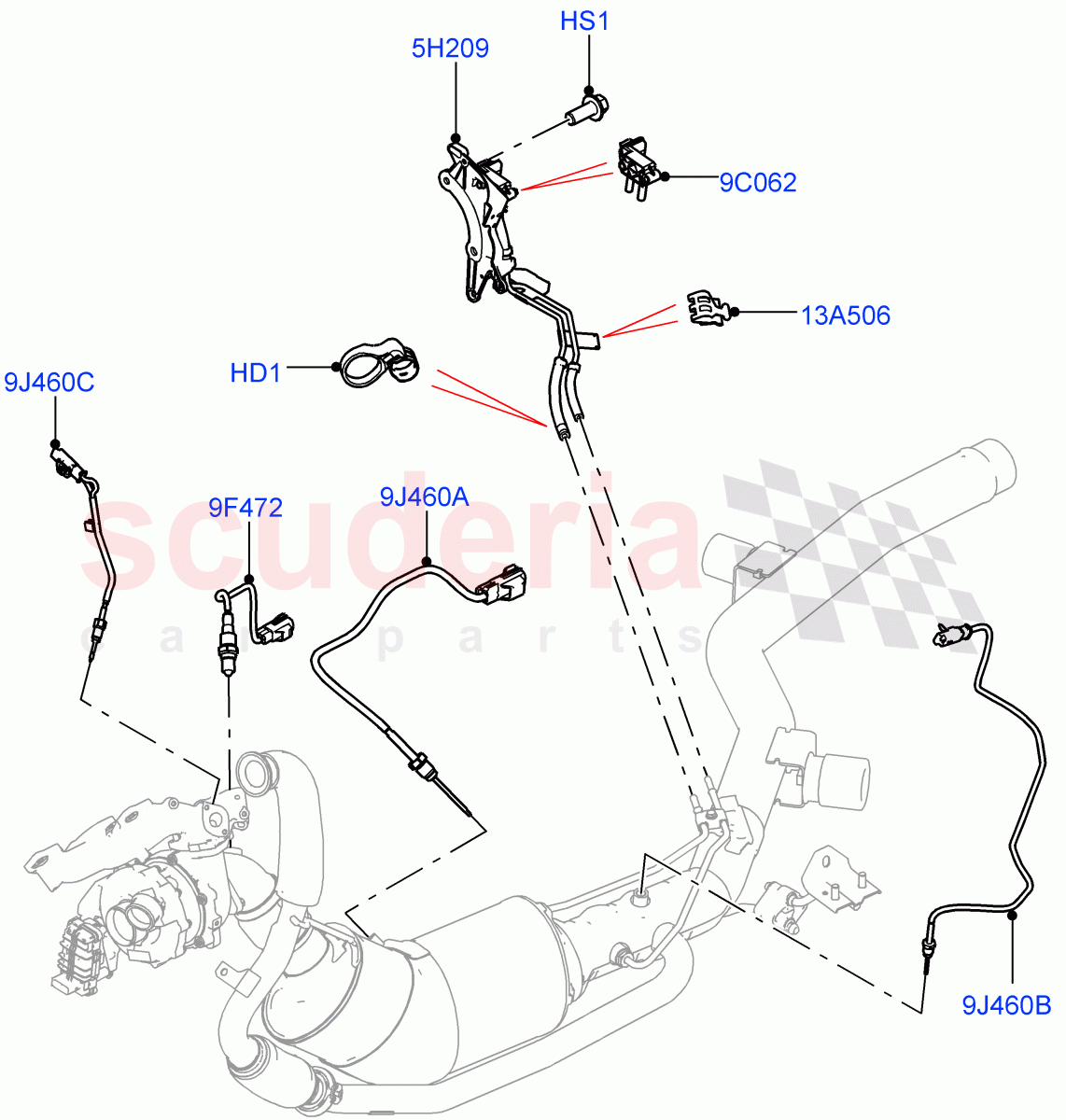

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	YYC500240	CLAMP - HOSE	$1.99	To Order

Photo	Part No	Description	Price (each)	Stock
	FA108202	SCREW	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069684	SENSOR - DIFFERENTIAL PRESSURE	$189.43	To Order
	LR069660	SENSOR	$189.43	To Order
	LR081634	SENSOR - EXHAUST GAS PRESSURE	$169.97	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR122713	SENSOR	$152.73	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062045	SENSOR - HEGO	$255.57	To Order
	LR098299	SENSOR - HEGO	$230.24	To Order
	LR110458	SENSOR	$255.57	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	$0.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR062037	SENSOR - EXHAUST GAS - TEMPERATURE	$152.87	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR062038	SENSOR - EXHAUST GAS - TEMPERATURE	$152.87	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062053	SENSOR - EXHAUST GAS - TEMPERATURE	$148.57	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HD1	YYC500240	CLAMP - HOSE	YYC500240 CLAMP - HOSE Exhaust Gas Pressure / From: FA000001	$1.99	1
HS1	FA108202	SCREW	FA108202 SCREW Hexagonal Head, M8 X 20MM, Taptite / From: FA000001	$1.30	2
5H209	LR069684	SENSOR - DIFFERENTIAL PRESSURE	LR069684 SENSOR - DIFFERENTIAL PRESSURE With 2 Spd Trans Case With Ctl Trac / Exhaust Gas Pressure, Includes Bracket / From: FA516051 / To: GA999999	$189.43	1
5H209	LR069660	SENSOR	LR069660 SENSOR With 1 Speed Transfer Case / Exhaust Gas Pressure, Includes Bracket / From: FA516051 / To: GA999999	$189.43	1
5H209	LR081634	SENSOR - EXHAUST GAS PRESSURE	LR081634 SENSOR - EXHAUST GAS PRESSURE With 2 Spd Trans Case With Ctl Trac / Exhaust Gas Pressure, Includes Bracket / From: HA000001	$169.97	1
5H209	LR082476	SENSOR	LR082476 SENSOR With 1 Speed Transfer Case / Exhaust Gas Pressure, Includes Bracket / From: HA000001	$175.61	1
9C062	LR122713	SENSOR	LR122713 SENSOR Exhaust Gas Pressure / From: FA516051	$152.73	1
9F472	LR062045	SENSOR - HEGO	LR062045 SENSOR - HEGO Hego Sensor / From: FA000001 / To: HA145695	$255.57	1
9F472	LR098299	SENSOR - HEGO	LR098299 SENSOR - HEGO Hego Sensor / From: HA145696 / To: JA185454	$230.24	1
9F472	LR110458	SENSOR	LR110458 SENSOR Hego Sensor / From: JA185455 / To: LA887104	$255.57	1
9F472	LR137404	SENSOR - HEGO	LR137404 SENSOR - HEGO Hego Sensor / From: LA887105	$305.45	1
9J460A	LR062037	SENSOR - EXHAUST GAS - TEMPERATURE IN STOCK	LR062037 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature, Filter Diesel Particle, Middle / From: FA000001 IN STOCK	$152.87	1
9J460B	LR062038	SENSOR - EXHAUST GAS - TEMPERATURE	LR062038 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature, Filter Diesel Particle, Rear / From: FA000001	$152.87	1
9J460C	LR062053	SENSOR - EXHAUST GAS - TEMPERATURE	LR062053 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature	$148.57	1
13A506	YQR000050	CLIP - WIRING IN STOCK	YQR000050 CLIP - WIRING Exhaust Gas Temperature Sensor / From: FA000001 IN STOCK	$0.76	4
