Exhaust Sensors And Modules (3.0 V6 D Gen2 Mono Turbo, EU6 + DPF Emissions, LEV 160, Japanese Emission + DPF) ((V) FROMFA000001) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Exhaust Sensors And Modules (3.0 V6 D Gen2 Mono Turbo, EU6 + DPF Emissions, LEV 160, Japanese...

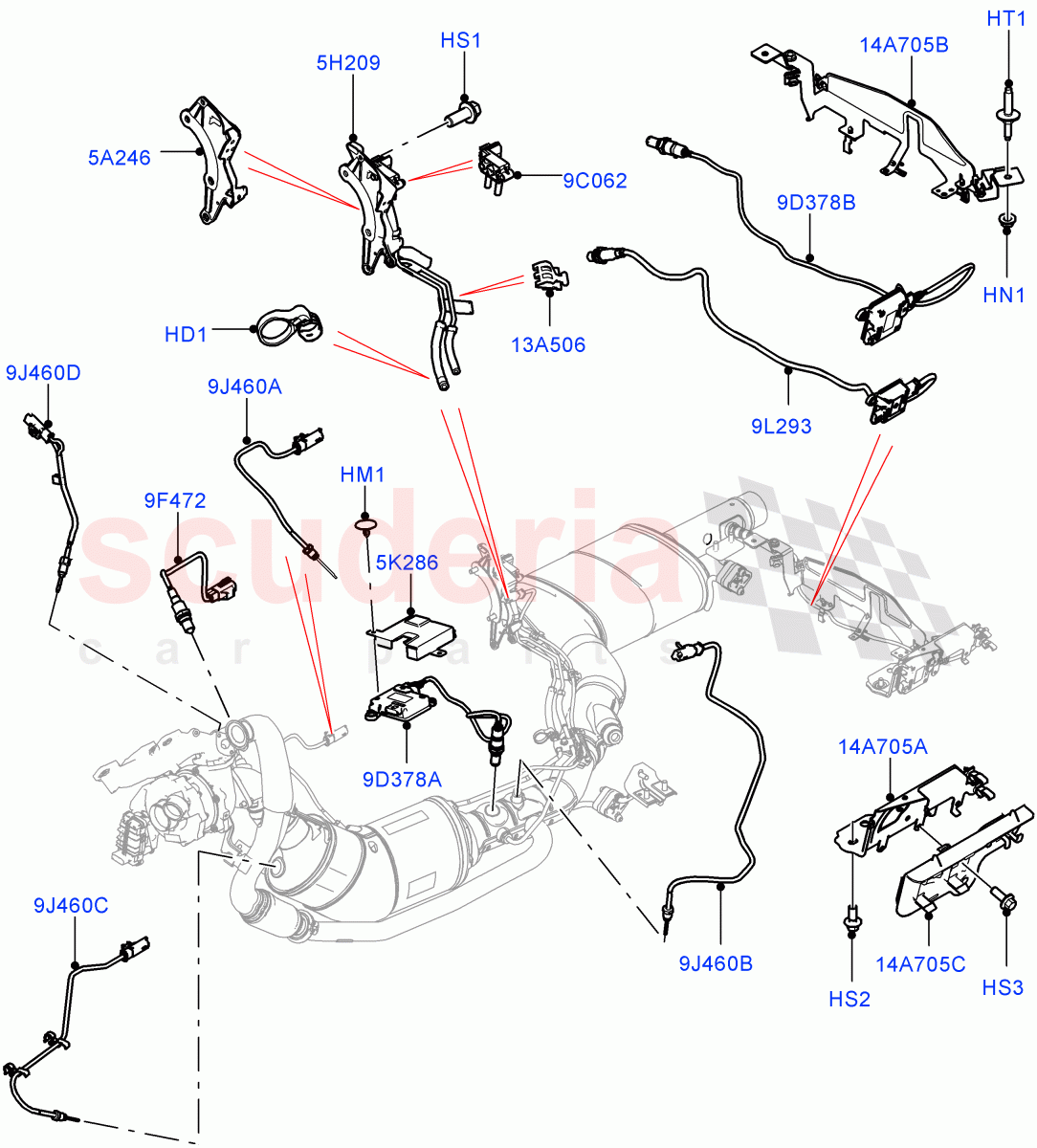

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	YYC500240	CLAMP - HOSE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR078426	FASTENER - COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500350	NUT - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FA108202	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108186	SCREW - SOCKET HEAD CAP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106166	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062829	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR087161	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR069684	SENSOR - DIFFERENTIAL PRESSURE	Enquire	To Order
	LR069660	SENSOR	Enquire	To Order
	LR081634	SENSOR - EXHAUST GAS PRESSURE	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR082467	HEAT SHIELD - TRANSMISSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR122713	SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062045	SENSOR - HEGO	Enquire	To Order
	LR098299	SENSOR - HEGO	Enquire	To Order
	LR110458	SENSOR	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR071752	SENSOR - PARTICULATE MATTER DETECT.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063032	SENSOR - NOX TRAP TEMPERATURE	Enquire	To Order
	LR078814	SENSOR - NOX TRAP TEMPERATURE	Enquire	To Order
	LR104388	SENSOR - NOX TRAP TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062828	SENSOR - NOX TRAP TEMPERATURE	Enquire	To Order
	LR078810	SENSOR - NOX TRAP TEMPERATURE	Enquire	To Order
	LR104387	SENSOR - NOX TRAP TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062037	SENSOR - EXHAUST GAS - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062038	SENSOR - EXHAUST GAS - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062036	SENSOR - EXHAUST GAS - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062053	SENSOR - EXHAUST GAS - TEMPERATURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063178	BRACKET - WIRING	Enquire	To Order
	LR071906	BRACKET - WIRING	Enquire	To Order
	LR104010	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063179	BRACKET - WIRING	Enquire	To Order
	LR084674	BRACKET - WIRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR099961	BRACKET - WIRING	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HD1	YYC500240	CLAMP - HOSE	YYC500240 CLAMP - HOSE Exhaust Gas Pressure / From: FA000001	-	1	Enquire
HM1	LR078426	FASTENER - COVER	LR078426 FASTENER - COVER LEV 160 / 4.75 x 0.76 - 7.9, Push Pin / From: GA000001	-	3	Enquire
HN1	RYH500350	NUT - SPECIAL	RYH500350 NUT - SPECIAL M8 / From: FA000001	-	2	Enquire
HS1	FA108202	SCREW	FA108202 SCREW Hexagonal Head, M8 X 20MM, Taptite / From: FA000001	-	2	Enquire
HS2	FS108186	SCREW - SOCKET HEAD CAP	FS108186 SCREW - SOCKET HEAD CAP M8 x 18MM / From: FA000001	-	2	Enquire
HS3	FS106166	SCREW	FS106166 SCREW Hexagonal Head, M6 X 16MM / From: FA000001	-	2	Enquire
HT1	LR062829	STUD	LR062829 STUD M10 x 36 + M8 x 22, Secures Sensor Fly Lead Bracket To Body / From: FA000001	-	2	Enquire
5A246	LR087161	BRACKET - WIRING	LR087161 BRACKET - WIRING From: HA000001	-	1	Enquire
5H209	LR069684	SENSOR - DIFFERENTIAL PRESSURE	LR069684 SENSOR - DIFFERENTIAL PRESSURE With 2 Spd Trans Case With Ctl Trac / Exhaust Gas Pressure, Includes Bracket / From: FA000001 / To: GA999999	-	1	Enquire
5H209	LR069660	SENSOR	LR069660 SENSOR With 1 Speed Transfer Case / Exhaust Gas Pressure, Includes Bracket / From: FA000001 / To: GA999999	-	1	Enquire
5H209	LR081634	SENSOR - EXHAUST GAS PRESSURE	LR081634 SENSOR - EXHAUST GAS PRESSURE With 2 Spd Trans Case With Ctl Trac / Exhaust Gas Pressure, Includes Bracket / From: HA000001	-	1	Enquire
5H209	LR082476	SENSOR	LR082476 SENSOR With 1 Speed Transfer Case / Exhaust Gas Pressure, Includes Bracket / From: HA000001	-	1	Enquire
5K286	LR082467	HEAT SHIELD - TRANSMISSION	LR082467 HEAT SHIELD - TRANSMISSION LEV 160 / From: GA000001	-	1	Enquire
9C062	LR122713	SENSOR	LR122713 SENSOR Exhaust Gas Pressure / From: FA000001	-	1	Enquire
9D378A	LR063032	SENSOR - NOX TRAP TEMPERATURE	LR063032 SENSOR - NOX TRAP TEMPERATURE Front / From: FA000001 / To: FA999999	-	1	Enquire
9D378A	LR078814	SENSOR - NOX TRAP TEMPERATURE	LR078814 SENSOR - NOX TRAP TEMPERATURE LEV 160 / Front / From: GA000001 / To: HA150442	-	1	Enquire
9D378A	LR104388	SENSOR - NOX TRAP TEMPERATURE	LR104388 SENSOR - NOX TRAP TEMPERATURE LEV 160 / Front / From: HA150443	-	1	Enquire
9D378B	LR062828	SENSOR - NOX TRAP TEMPERATURE	LR062828 SENSOR - NOX TRAP TEMPERATURE Rear / From: FA000001 / To: FA999999	-	1	Enquire
9D378B	LR078810	SENSOR - NOX TRAP TEMPERATURE	LR078810 SENSOR - NOX TRAP TEMPERATURE Rear / From: GA000001 / To: HA149598	-	1	Enquire
9D378B	LR104387	SENSOR - NOX TRAP TEMPERATURE	LR104387 SENSOR - NOX TRAP TEMPERATURE Rear / From: HA149599	-	1	Enquire
9F472	LR062045	SENSOR - HEGO	LR062045 SENSOR - HEGO Hego Sensor / From: FA000001 / To: HA145695	-	1	Enquire
9F472	LR098299	SENSOR - HEGO	LR098299 SENSOR - HEGO Hego Sensor / From: HA145696 / To: JA185454	-	1	Enquire
9F472	LR110458	SENSOR	LR110458 SENSOR Hego Sensor / From: JA185455 / To: LA887104	-	1	Enquire
9F472	LR137404	SENSOR - HEGO	LR137404 SENSOR - HEGO Hego Sensor / From: LA887105	-	1	Enquire
9J460A	LR062037	SENSOR - EXHAUST GAS - TEMPERATURE	LR062037 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature, Filter Diesel Particle, Middle / From: FA000001	-	1	Enquire
9J460B	LR062038	SENSOR - EXHAUST GAS - TEMPERATURE	LR062038 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature, Filter Diesel Particle, Rear / From: FA000001	-	1	Enquire
9J460C	LR062036	SENSOR - EXHAUST GAS - TEMPERATURE	LR062036 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature / From: FA000001	-	1	Enquire
9J460D	LR062053	SENSOR - EXHAUST GAS - TEMPERATURE	LR062053 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature	-	1	Enquire
9L293	LR071752	SENSOR - PARTICULATE MATTER DETECT.	LR071752 SENSOR - PARTICULATE MATTER DETECT. LEV 160 / From: FA000001	-	1	Enquire
13A506	YQR000050	CLIP - WIRING	YQR000050 CLIP - WIRING Exhaust Gas Temperature Sensor / From: FA000001	-	1	Enquire
14A705A	LR063178	BRACKET - WIRING	LR063178 BRACKET - WIRING Module, NOX - Sensor / From: FA000001 / To: FA999999	-	1	Enquire
14A705A	LR071906	BRACKET - WIRING	LR071906 BRACKET - WIRING Module, NOX - Sensor / From: GA000001 / To: HA159936	-	1	Enquire
14A705A	LR104010	BRACKET - WIRING	LR104010 BRACKET - WIRING Module, NOX - Sensor / From: HA159937	-	1	Enquire
14A705B	LR063179	BRACKET - WIRING	LR063179 BRACKET - WIRING NOX - Sensor, Wire / From: FA000001 / To: GA568918	-	1	Enquire
14A705B	LR084674	BRACKET - WIRING	LR084674 BRACKET - WIRING Module, NOX - Sensor / From: GA568919	-	1	Enquire
14A705C	LR099961	BRACKET - WIRING	LR099961 BRACKET - WIRING EU6D Diesel + DPF Emissions / NOX - Sensor / From: JA000001	-	1	Enquire
