Name: Exhaust Sensors And Modules (3.0 V6 Diesel Electric Hybrid Eng, Proconve L6 Emissions, 3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow, Stage V Plus DPF)
Rating: 5.0 (1 reviews)

Exhaust Sensors And Modules (3.0 V6 Diesel Electric Hybrid Eng, Proconve L6 Emissions, 3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow, Stage V Plus DPF) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC]

View All

Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Exhaust Sensors And Modules (3.0 V6 Diesel Electric Hybrid Eng, Proconve L6 Emissions, 3.0L 24V...

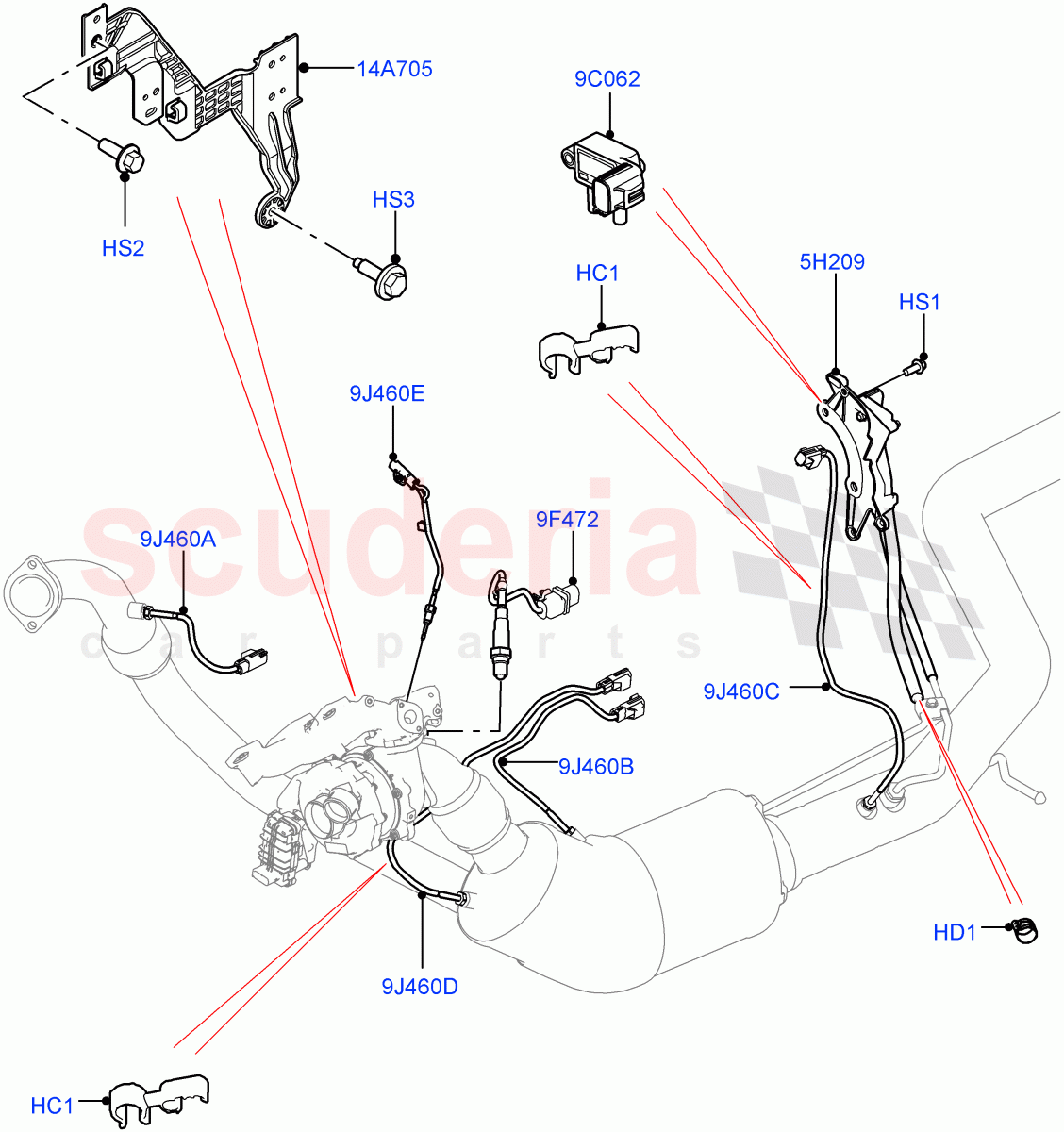

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR016623	CLIP	$1.65	To Order

Photo	Part No	Description	Price (each)	Stock
	YYC500240	CLAMP - HOSE	$1.99	To Order

Photo	Part No	Description	Price (each)	Stock
	FA108202	SCREW	$1.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023697	SCREW	$0.54	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG501590	SCREW	$0.96	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041958	SENSOR - EXHAUST GAS PRESSURE	$292.22	To Order
	LR041957	SENSOR - EXHAUST GAS PRESSURE	$292.22	To Order
	LR072658	SENSOR - EXHAUST GAS PRESSURE	$292.22	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR133910	SENSOR	$161.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035751	SENSOR - LAMBDA	$367.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133401	BRACKET - WIRING	$25.16	To Order

Photo	Part No	Description	Price (each)	Stock
	WDN500130	SENSOR - EXHAUST GAS - TEMPERATURE	$120.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022906	SENSOR - EXHAUST GAS - TEMPERATURE	$108.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022894	SENSOR - EXHAUST GAS - TEMPERATURE	$162.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037787	SENSOR - EXHAUST GAS - TEMPERATURE	$164.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR062053	SENSOR - EXHAUST GAS - TEMPERATURE	$148.57	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR016623	CLIP	LR016623 CLIP Double, Exhaust Gas Temperature Sensor, Filter Diesel Particle, Front / Rear	$1.65	4
HD1	YYC500240	CLAMP - HOSE	YYC500240 CLAMP - HOSE Exhaust Gas Pressure	$1.99	1
HS1	FA108202	SCREW	FA108202 SCREW Hexagonal Head, M8 X 20MM, Taptite	$1.30	2
HS2	LR023697	SCREW	LR023697 SCREW M6 X 16MM	$0.54	1
HS3	RYG501590	SCREW	RYG501590 SCREW Hexagonal Head, M6 X 20MM	$0.96	1
5H209	LR041958	SENSOR - EXHAUST GAS PRESSURE	LR041958 SENSOR - EXHAUST GAS PRESSURE With 1 Speed Transfer Case / Exhaust Gas Pressure, Includes Mounting Bracket / To: EA999999	$292.22	1
5H209	LR041957	SENSOR - EXHAUST GAS PRESSURE	LR041957 SENSOR - EXHAUST GAS PRESSURE With 2 Spd Trans Case With Ctl Trac / Exhaust Gas Pressure, Includes Mounting Bracket / To: EA999999	$292.22	1
5H209	LR072658	SENSOR - EXHAUST GAS PRESSURE	LR072658 SENSOR - EXHAUST GAS PRESSURE With 2 Spd Trans Case With Ctl Trac / Exhaust Gas Pressure, Includes Mounting Bracket / From: FA000001	$292.22	1
5H209	LR072656	SENSOR - EXHAUST GAS PRESSURE	LR072656 SENSOR - EXHAUST GAS PRESSURE With 1 Speed Transfer Case / Exhaust Gas Pressure, Includes Mounting Bracket / From: FA000001	$292.22	1
9C062	LR133910	SENSOR	LR133910 SENSOR	$161.34	1
9F472	LR035751	SENSOR - LAMBDA	LR035751 SENSOR - LAMBDA LH, Hego Sensor	$367.41	1
9J460A	WDN500130	SENSOR - EXHAUST GAS - TEMPERATURE	WDN500130 SENSOR - EXHAUST GAS - TEMPERATURE RH, Downpipe, Exhaust Gas Temperature	$120.67	1
9J460B	LR022906	SENSOR - EXHAUST GAS - TEMPERATURE	LR022906 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature, Filter Diesel Particle, Middle	$108.32	1
9J460C	LR022894	SENSOR - EXHAUST GAS - TEMPERATURE	LR022894 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature, Filter Diesel Particle, Rear	$162.53	1
9J460D	LR037787	SENSOR - EXHAUST GAS - TEMPERATURE	LR037787 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature, Filter Diesel Particle, Front	$164.86	1
9J460E	LR062053	SENSOR - EXHAUST GAS - TEMPERATURE	LR062053 SENSOR - EXHAUST GAS - TEMPERATURE Exhaust Gas Temperature	$148.57	1
14A705	LR133401	BRACKET - WIRING	LR133401 BRACKET - WIRING To Transmission	$25.16	1
