Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] - Front Exhaust System (3.0 V6 Diesel Electric Hybrid Eng, Proconve L6 Emissions, 3.0L 24V DOHC V6 TC...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FS108206 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
WYG500060 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR049850 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
WYP000025 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR038810 PIPE - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
WCL500020 CLAMP - EXHAUST Enquire To Order
Photo Part No Description Price (each) Stock
LR025064 INSULATOR - RUBBER Enquire To Order
Photo Part No Description Price (each) Stock
LR039507 FILTER - DIESEL PARTICLE Enquire To Order
LR068327 FILTER - DIESEL PARTICLE Enquire To Order
LR087666 FILTER - DIESEL PARTICLE Enquire To Order
Photo Part No Description Price (each) Stock
LR035843 BRACKET - EXHAUST PIPE MOUNTING Enquire To Order
LR068325 BRACKET - EXHAUST PIPE MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
LR016621 GASKET - EXHAUST PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR016619 GASKET - EXHAUST PIPE Enquire To Order
Photo Part No Description Price (each) Stock
LR042469 DAMPER - DAMPING MASS Enquire To Order
Photo Part No Description Price (each) Stock
LR042468 DAMPER - DAMPING MASS Enquire To Order
Photo Part No Description Price (each) Stock
LR049848 TUBE - EXHAUST PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR049849 TUBE - EXHAUST PRESSURE Enquire To Order
View All

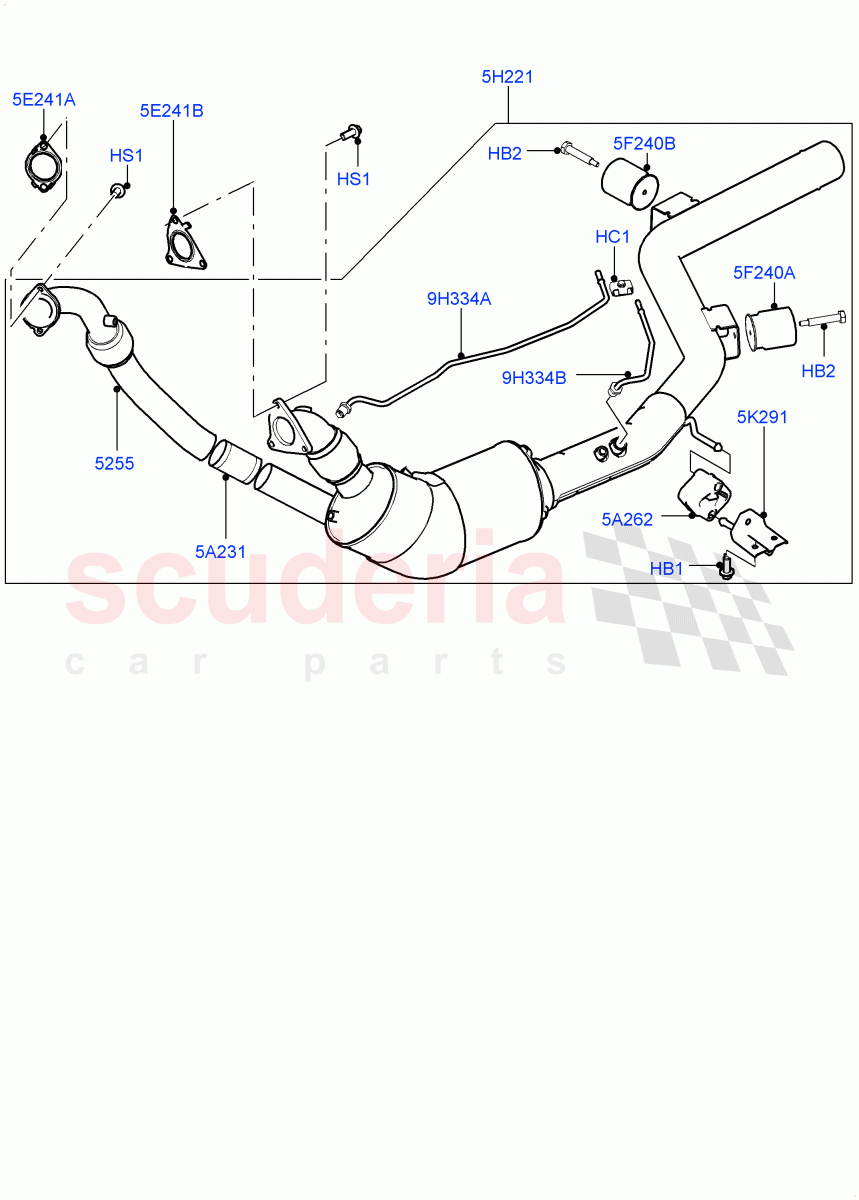

Front Exhaust System (3.0 V6 Diesel Electric Hybrid Eng, Proconve L6 Emissions, 3.0L 24V DOHC V6 TC Diesel, 3.0L 24V V6 Turbo Diesel Std Flow, Stage V Plus DPF) of Land Rover Land Rover Range Rover Sport (2014+) [3.0 Diesel 24V DOHC TC] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 FS108206
BOLT
Hexagonal Head, M8 X 20MM 		- 3 Enquire
HB2 WYG500060
BOLT
M8 X 70 - 8.8, Self Locking 		- 2 Enquire
HC1 LR049850
CLIP
Exhaust Gas Pressure, Tube 		- 1 Enquire
HS1 WYP000025
SCREW
Hexagonal Head, M8 X 20MM 		- 5 Enquire
5A231 WCL500020
CLAMP - EXHAUST
50MM, Downpipe 		- 1 Enquire
5A262 LR025064
INSULATOR - RUBBER 		- 1 Enquire
5E241A LR016621
GASKET - EXHAUST PIPE
RH, Downpipe 		- 1 Enquire
5E241B LR016619
GASKET - EXHAUST PIPE
LH, Downpipe 		- 1 Enquire
5F240A LR042469
DAMPER - DAMPING MASS
Front 		- 1 Enquire
5F240B LR042468
DAMPER - DAMPING MASS
Rear 		- 1 Enquire
5H221 LR039507
FILTER - DIESEL PARTICLE
Downpipe / To: EA503853 		- 1 Enquire
5H221 LR068327
FILTER - DIESEL PARTICLE
Downpipe / From: EA503854 / To: GA593482 		- 1 Enquire
5H221 LR087666
FILTER - DIESEL PARTICLE
Downpipe / From: GA593483 		- 1 Enquire
5K291 LR035843
BRACKET - EXHAUST PIPE MOUNTING
Front / To: FA999999 		- 1 Enquire
5K291 LR068325
BRACKET - EXHAUST PIPE MOUNTING
Front / From: GA000001 		- 1 Enquire
9H334A LR049848
TUBE - EXHAUST PRESSURE
Exhaust Gas Pressure, Front 		- 1 Enquire
9H334B LR049849
TUBE - EXHAUST PRESSURE
Exhaust Gas Pressure, Rear 		- 1 Enquire
5255 LR038810
PIPE - EXHAUST
Downpipe 		- 1 Enquire
