Name: Fuel Tank & Related Parts (2.0L AJ20P4 Petrol Mid PTA, Changsu (China), Fuel Tank Filler Neck - DMTL)
Rating: 4.7 (1 reviews)

Fuel Tank & Related Parts (2.0L AJ20P4 Petrol Mid PTA, Changsu (China), Fuel Tank Filler Neck - DMTL) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Fuel Tank & Related Parts (2.0L AJ20P4 Petrol Mid PTA, Changsu (China), Fuel Tank Filler Neck -...

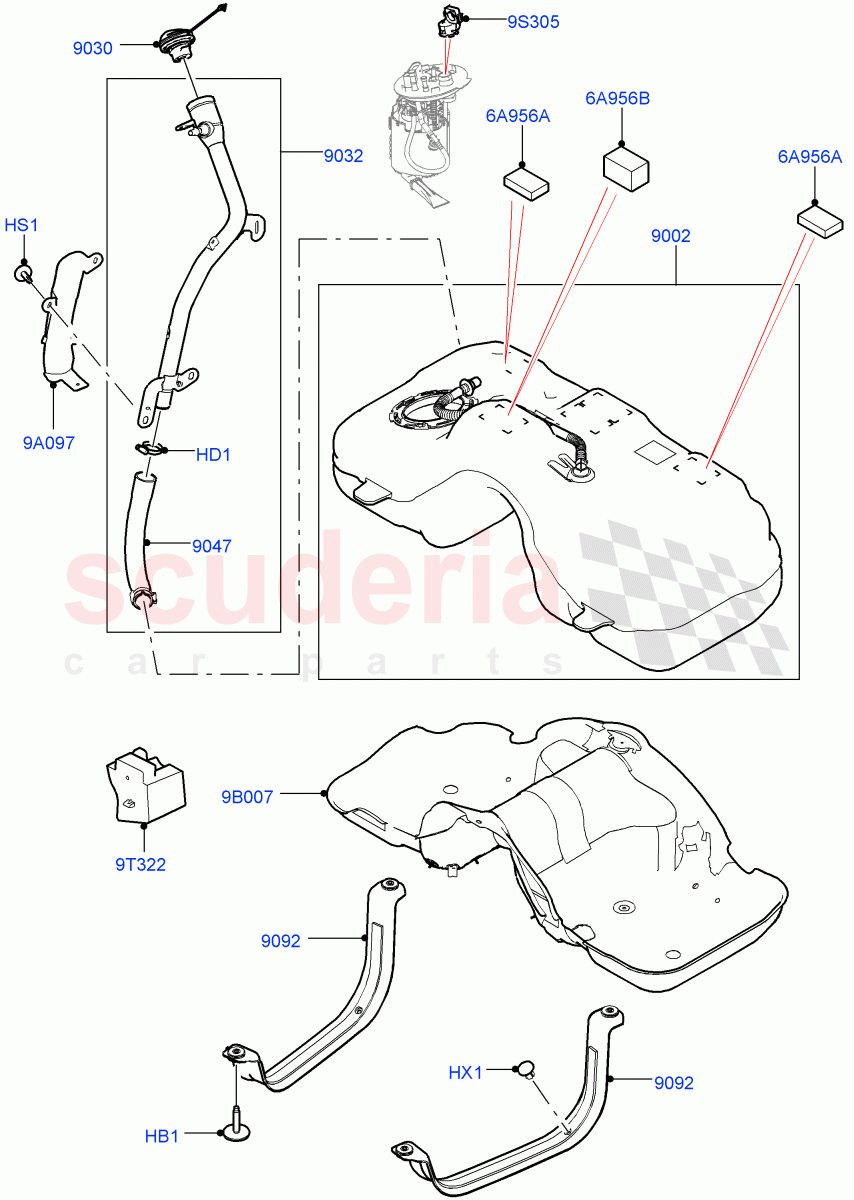

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR088949	BOLT	$3.78	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061655	CLAMP - FUEL SUPPLY TUBE	$5.85	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006025	BOLT	$1.32	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR115125	RETAINER - RIVET	$0.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR133747	TANK - FUEL	$1,143.68	To Order

Photo	Part No	Description	Price (each)	Stock
	202123475	CAP - FUEL TANK FILLER	$38.99	To Order
	LR138720	CAP - FUEL TANK FILLER	$37.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115294	PIPE - FUEL FILLER	$107.01	To Order
	LR155676	PIPE - FUEL FILLER	$301.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125676	HOSE - FILLER PIPE	$45.22	To Order
	LR155678	HOSE - FILLER PIPE	$273.81	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115407	STRAP - FUEL TANK	$56.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115342	TUBE - FUEL	$37.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128791	SHIELD - FUEL TANK	$148.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117832	CLIP	$3.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR063975	MOULDING - FUEL TANK PROTECTION	$16.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125431	FOAM PAD - ENERGY ABSORBING	$15.32	To Order

Photo	Part No	Description	Price (each)	Stock
	LR125430	FOAM PAD - ENERGY ABSORBING	$14.72	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR088949	BOLT	LR088949 BOLT Fuel Tank Strap, M6 X 40MM	$3.78	4
HD1	LR061655	CLAMP - FUEL SUPPLY TUBE	LR061655 CLAMP - FUEL SUPPLY TUBE 35-50 x 9	$5.85	1
HS1	LR006025	BOLT IN STOCK	LR006025 BOLT Bolt And Washer, M6 X 15 Hex IN STOCK	$1.32	3
HX1	LR115125	RETAINER - RIVET	LR115125 RETAINER - RIVET Fuel Tank Strap, Rivet Push Pin 7.8 - 8.8 X 0.8 - 9.5 Nylon	$0.99	2
6A956A	LR125431	FOAM PAD - ENERGY ABSORBING	LR125431 FOAM PAD - ENERGY ABSORBING 80mm x 50mm x 20mm	$15.32	2
6A956B	LR125430	FOAM PAD - ENERGY ABSORBING	LR125430 FOAM PAD - ENERGY ABSORBING 80mm x 50mm x 50mm	$14.72	1
9A097	LR115342	TUBE - FUEL	LR115342 TUBE - FUEL Filler Pipe	$37.59	1
9B007	LR128791	SHIELD - FUEL TANK	LR128791 SHIELD - FUEL TANK Fuel Tank / From: KG006088	$148.49	1
9S305	LR117832	CLIP	LR117832 CLIP For Fuel Pump	$3.16	1
9T322	LR063975	MOULDING - FUEL TANK PROTECTION	LR063975 MOULDING - FUEL TANK PROTECTION	$16.18	1
9002	LR133747	TANK - FUEL	LR133747 TANK - FUEL	$1,143.68	1
9030	202123475	CAP - FUEL TANK FILLER	202123475 CAP - FUEL TANK FILLER To: LG563384	$38.99	1
9030	LR138720	CAP - FUEL TANK FILLER	LR138720 CAP - FUEL TANK FILLER From: LG563385	$37.60	1
9032	LR115294	PIPE - FUEL FILLER	LR115294 PIPE - FUEL FILLER Standard Wheelbase	$107.01	1
9032	LR155676	PIPE - FUEL FILLER	LR155676 PIPE - FUEL FILLER Long Wheelbase / From: MG575835	$301.32	1
9047	LR125676	HOSE - FILLER PIPE	LR125676 HOSE - FILLER PIPE Standard Wheelbase	$45.22	1
9047	LR155678	HOSE - FILLER PIPE	LR155678 HOSE - FILLER PIPE Long Wheelbase / From: MG575835	$273.81	1
9092	LR115407	STRAP - FUEL TANK	LR115407 STRAP - FUEL TANK	$56.46	2
