Name: Carbon Canister (2.0L AJ20P4 Petrol Mid PTA, Standard Wheelbase, Changsu (China), Fuel Tank Filler Neck - DMTL)
Rating: 5.0 (1 reviews)

View All

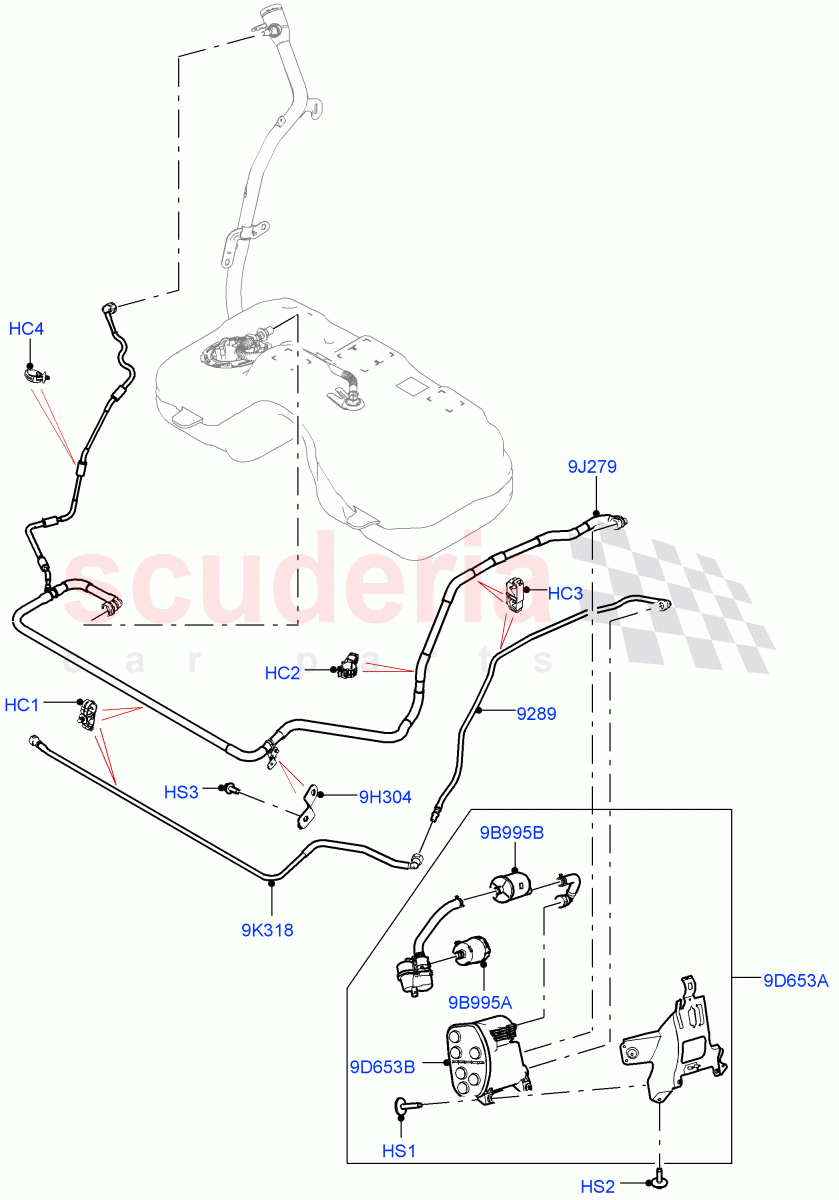

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006655	CLIP	$1.18	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114127	CLIP - HOSE	$5.47	To Order

Photo	Part No	Description	Price (each)	Stock
	LR060351	CLIP - HOSE	$4.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055988	CLIP - CABLE	$1.42	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500900	SCREW	$4.03	To Order

Photo	Part No	Description	Price (each)	Stock
	AYP500110	SCREW	$0.92	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	RYG500160	SCREW	$0.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115836	TUBE - FUEL	$57.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR135258	BRACKET	$8.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115805	TUBE - VENTILATION	$155.69	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115837	TUBE - FUEL VAPOUR	$37.86	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121787	FILTER - FUEL	$147.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR121786	FILTER - FUEL	$86.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126509	CANNISTER - FUEL VAPOUR STORE	$443.41	To Order

Photo	Part No	Description	Price (each)	Stock
	LR145278	RESERVOIR	$243.15	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HC1	LR006655	CLIP	LR006655 CLIP 14+12-20.5 X 7.5 X 1-3	$1.18	5
HC2	LR114127	CLIP - HOSE	LR114127 CLIP - HOSE	$5.47	2
HC3	LR060351	CLIP - HOSE	LR060351 CLIP - HOSE	$4.25	2
HC4	LR055988	CLIP - CABLE	LR055988 CLIP - CABLE 16-22X6.4-7X0.7-4	$1.42	3
HS1	RYG500900	SCREW	RYG500900 SCREW Bolt And Washer, Hexagonal Head, M6X30	$4.03	2
HS2	AYP500110	SCREW IN STOCK	AYP500110 SCREW Bolt And Washer, Hexagonal Head, M6 X 20MM IN STOCK	$0.92	2
HS3	RYG500160	SCREW	RYG500160 SCREW Hexagonal Head, M6 X 14MM	$0.59	1
9B995A	LR121787	FILTER - FUEL	LR121787 FILTER - FUEL Charcoal Cannister, Lower	$147.93	1
9B995B	LR121786	FILTER - FUEL	LR121786 FILTER - FUEL Charcoal Cannister, Upper	$86.29	1
9D653A	LR126509	CANNISTER - FUEL VAPOUR STORE	LR126509 CANNISTER - FUEL VAPOUR STORE Charcoal Cannister, With Bracket / From: KG006088	$443.41	1
9D653B	LR145278	RESERVOIR	LR145278 RESERVOIR Reservoir / From: KG006088	$243.15	1
9H304	LR135258	BRACKET	LR135258 BRACKET	$8.13	1
9J279	LR115805	TUBE - VENTILATION	LR115805 TUBE - VENTILATION Fuel Tank Ventilation Pipe	$155.69	1
9K318	LR115837	TUBE - FUEL VAPOUR	LR115837 TUBE - FUEL VAPOUR Lower	$37.86	1
9289	LR115836	TUBE - FUEL	LR115836 TUBE - FUEL From Carbon Canister To Fuel Lines	$57.07	1

Carbon Canister (2.0L Aj20P4 Petrol Mid Pta, Standard Wheelbase, Changsu (China), Fuel Tank Filler...

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]
