Fuel Lines (2.0L Aj20P4 Petrol Mid Pta, Changsu (China)) ((V) Tomg575835)

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Fuel Lines (2.0L AJ20P4 Petrol Mid PTA, Changsu (China)) ((V) TOMG575835)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500200 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR113126 CLIP - BRAKE PIPE Enquire To Order
Photo Part No Description Price (each) Stock
RYG500470 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR133032 SHIELD - FUEL TUBES Enquire To Order
Photo Part No Description Price (each) Stock
LR115335 PIPE - FUEL Enquire To Order
LR139134 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR115337 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR115338 TUBE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR126243 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR115399 SHIELD - FUEL TUBES Enquire To Order
Photo Part No Description Price (each) Stock
LR117831 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR115401 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
LR135720 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
LR140526 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR094430 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR115331 TUBE - AUXILIARY HEATER SUPPLY Enquire To Order
Photo Part No Description Price (each) Stock
LR115332 TUBE - FUEL SUPPLY Enquire To Order
View All

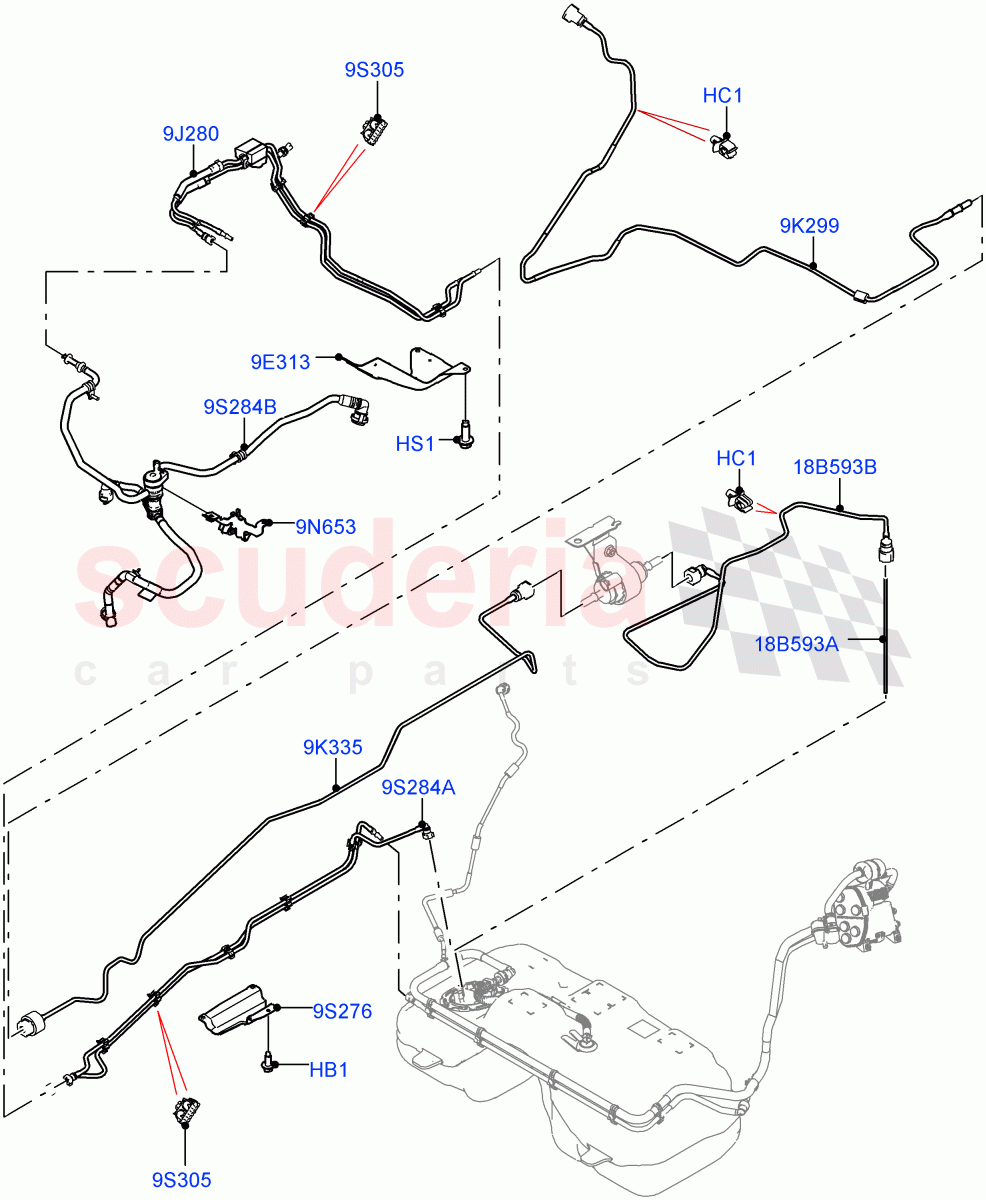

Fuel Lines (2.0L AJ20P4 Petrol Mid PTA, Changsu (China)) ((V) TOMG575835) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 RYG500200
BOLT
Hexagonal Head, M8 X 16MM 		- 3 Enquire
HC1 LR113126
CLIP - BRAKE PIPE
With Fuel Fired Heater / 4.75X8X0.8-4, Fuel Fired Heater Pipe, Single 		- 6 Enquire
HS1 RYG500470
SCREW
Hexagonal Head, M10 X 25MM 		- 3 Enquire
9E313 LR133032
SHIELD - FUEL TUBES
Front 		- 1 Enquire
9J280 LR115335
PIPE - FUEL
Front / To: LG566155 		- 1 Enquire
9J280 LR139134
PIPE - FUEL
Front / From: LG566156 		- 1 Enquire
9K299 LR115337
PIPE - FUEL
With Fuel Fired Heater / To Fuel Fired Heater 		- 1 Enquire
9K335 LR115338
TUBE - FUEL
With Fuel Fired Heater / Pump To Heater 		- 1 Enquire
9N653 LR126243
BRACKET
Purge Valve To Carrier 		- 1 Enquire
9S276 LR115399
SHIELD - FUEL TUBES
Rear 		- 1 Enquire
9S284A LR115401
TUBE - FUEL SUPPLY AND VAPOUR
Rear / To: KG101869 		- 1 Enquire
9S284A LR135720
TUBE - FUEL SUPPLY AND VAPOUR
Rear / From: KG101870 / To: KG101900 		- 1 Enquire
9S284A LR140526
TUBE - FUEL SUPPLY AND VAPOUR
Rear / From: KG101901 		- 1 Enquire
9S284B LR094430
TUBE - FUEL SUPPLY AND VAPOUR
Front 		- 1 Enquire
9S305 LR117831
CLIP
Clip-Fuel Tube(Dual Latch) 		- 8 Enquire
18B593A LR115331
TUBE - AUXILIARY HEATER SUPPLY
Fuel Heater W/Pk Heat With Remote / In Tank 		- 1 Enquire
18B593B LR115332
TUBE - FUEL SUPPLY
Fuel Fired Heater With Park Heat / Tank To Pump 		- 1 Enquire
