Name: Fuel Lines (2.0L AJ20P4 Petrol Mid PTA, Halewood (UK), 2.0L AJ20P4 Petrol High PTA) ((V) TOLH033494)
Rating: 5.0 (1 reviews)

Fuel Lines (2.0L AJ20P4 Petrol Mid PTA, Halewood (UK), 2.0L AJ20P4 Petrol High PTA) ((V) TOLH033494) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Fuel Lines (2.0L AJ20P4 Petrol Mid PTA, Halewood (UK), 2.0L AJ20P4 Petrol High PTA) ((V) TOLH033494)

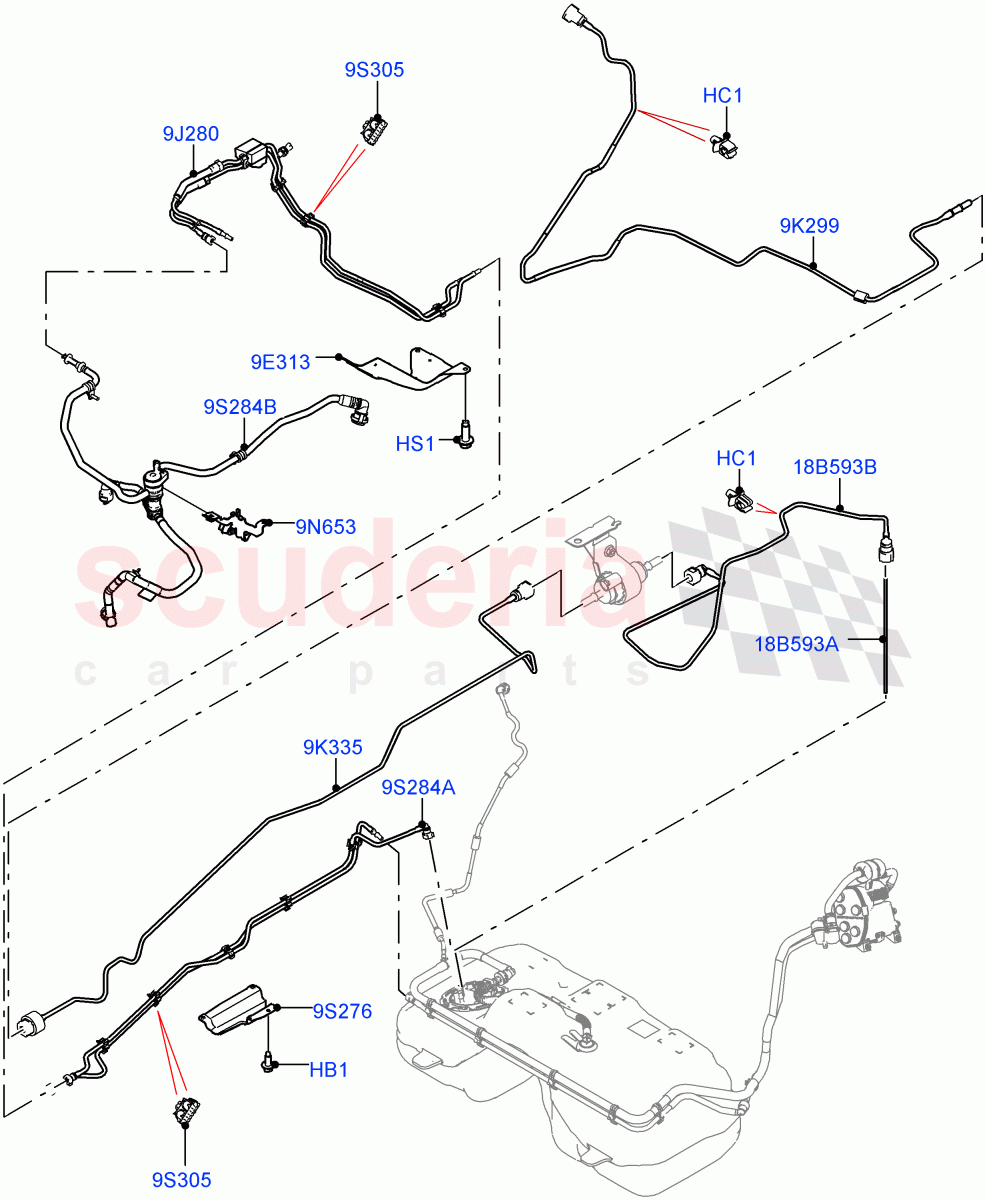

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RYG500200	BOLT	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR113126	CLIP - BRAKE PIPE	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500470	SCREW	$0.58	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117825	SHIELD - FUEL TUBES	$78.70	To Order
	LR133032	SHIELD - FUEL TUBES	$76.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139134	PIPE - FUEL	$213.57	To Order
	LR115335	PIPE - FUEL	$179.95	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115337	PIPE - FUEL	$181.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115338	TUBE - FUEL	$182.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR126243	BRACKET	$34.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115399	SHIELD - FUEL TUBES	$42.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117831	CLIP	$3.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115401	TUBE - FUEL SUPPLY AND VAPOUR	$207.07	To Order
	LR135720	TUBE - FUEL SUPPLY AND VAPOUR	$208.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR094430	TUBE - FUEL SUPPLY AND VAPOUR	$174.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115331	TUBE - AUXILIARY HEATER SUPPLY	$40.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115332	TUBE - FUEL SUPPLY	$38.32	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	RYG500200	BOLT	RYG500200 BOLT Hexagonal Head, M8 X 16MM	$0.63	3
HC1	LR113126	CLIP - BRAKE PIPE	LR113126 CLIP - BRAKE PIPE With Fuel Fired Heater / 4.75X8X0.8-4, Fuel Fired Heater Pipe, Single	$0.58	6
HS1	RYG500470	SCREW	RYG500470 SCREW Hexagonal Head, M10 X 25MM	$0.58	3
9E313	LR117825	SHIELD - FUEL TUBES	LR117825 SHIELD - FUEL TUBES Front / To: LH071806	$78.70	1
9E313	LR133032	SHIELD - FUEL TUBES	LR133032 SHIELD - FUEL TUBES Front / From: LH071807	$76.97	1
9J280	LR139134	PIPE - FUEL	LR139134 PIPE - FUEL Front / From: LH072005	$213.57	1
9J280	LR115335	PIPE - FUEL	LR115335 PIPE - FUEL Front / To: LH072004	$179.95	1
9K299	LR115337	PIPE - FUEL	LR115337 PIPE - FUEL With Fuel Fired Heater / To Fuel Fired Heater	$181.29	1
9K335	LR115338	TUBE - FUEL	LR115338 TUBE - FUEL With Fuel Fired Heater / Pump To Heater	$182.25	1
9N653	LR126243	BRACKET	LR126243 BRACKET Purge Valve To Carrier	$34.36	1
9S276	LR115399	SHIELD - FUEL TUBES	LR115399 SHIELD - FUEL TUBES Rear	$42.34	1
9S284A	LR115401	TUBE - FUEL SUPPLY AND VAPOUR	LR115401 TUBE - FUEL SUPPLY AND VAPOUR Rear / To: LH067401	$207.07	1
9S284A	LR135720	TUBE - FUEL SUPPLY AND VAPOUR	LR135720 TUBE - FUEL SUPPLY AND VAPOUR Rear / From: LH067402	$208.54	1
9S284B	LR094430	TUBE - FUEL SUPPLY AND VAPOUR	LR094430 TUBE - FUEL SUPPLY AND VAPOUR Front	$174.59	1
9S305	LR117831	CLIP	LR117831 CLIP Clip-Fuel Tube(Dual Latch)	$3.46	8
18B593A	LR115331	TUBE - AUXILIARY HEATER SUPPLY	LR115331 TUBE - AUXILIARY HEATER SUPPLY With Fuel Fired Heater / In Tank	$40.88	1
18B593B	LR115332	TUBE - FUEL SUPPLY	LR115332 TUBE - FUEL SUPPLY With Fuel Fired Heater / Tank To Pump	$38.32	1
