Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] - Fuel Lines (2.0L AJ20P4 Petrol Mid PTA, Changsu (China)) ((V) FROMMG575835)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RYG500470 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR089197 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR133032 SHIELD - FUEL TUBES Enquire To Order
Photo Part No Description Price (each) Stock
LR139949 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR126845 BRACKET - FUEL TUBE SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR117831 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR155685 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR126491 TUBE - FUEL SUPPLY AND VAPOUR Enquire To Order
View All

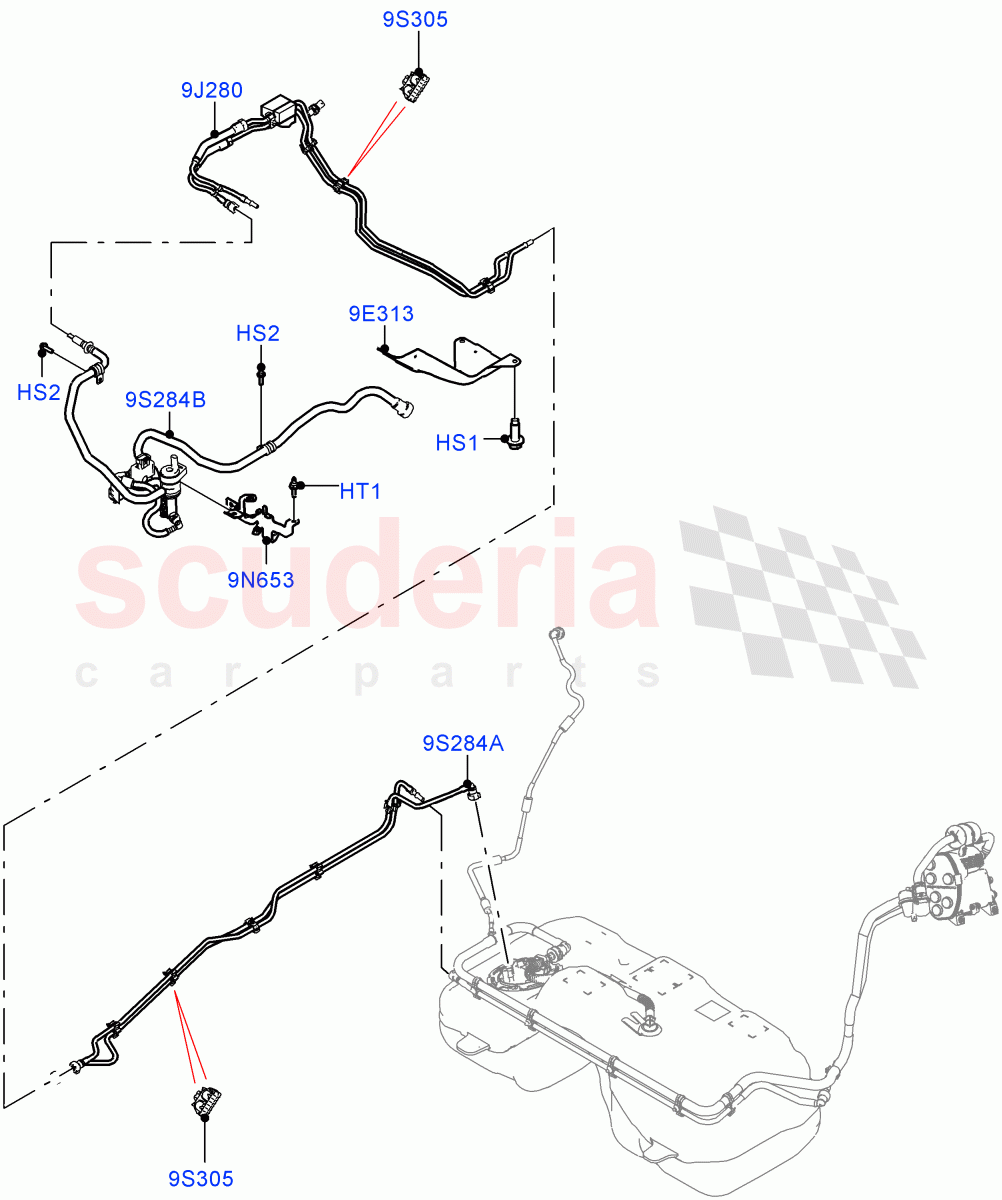

Fuel Lines (2.0L AJ20P4 Petrol Mid PTA, Changsu (China)) ((V) FROMMG575835) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Petrol AJ200P] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HS1 RYG500470
SCREW
Hexagonal Head, M10 X 25MM, Shield / From: MG575835 		- 3 Enquire
HS2 LR073655
SCREW
Hexagonal Head, M6 X 20MM / From: MG575835 		- 2 Enquire
HT1 LR089197
STUD
M6 x 22 mm + M6 x 12 mm / From: MG575835 		- 1 Enquire
9E313 LR133032
SHIELD - FUEL TUBES
Front / From: MG575835 		- 1 Enquire
9J280 LR139949
PIPE - FUEL
Front / From: MG575835 		- 1 Enquire
9N653 LR126845
BRACKET - FUEL TUBE SUPPORT
Purge Valve To Carrier / From: MG575835 		- 1 Enquire
9S284A LR155685
TUBE - FUEL SUPPLY AND VAPOUR
Rear / From: MG575835 		- 1 Enquire
9S284B LR126491
TUBE - FUEL SUPPLY AND VAPOUR
Front / From: MG575835 		- 1 Enquire
9S305 LR117831
CLIP
Clip-Fuel Tube(Dual Latch) / From: MG575835 		- 8 Enquire
