Name: Turbocharger (Lubrication And Cooling) (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))
Rating: 5.0 (1 reviews)

View All

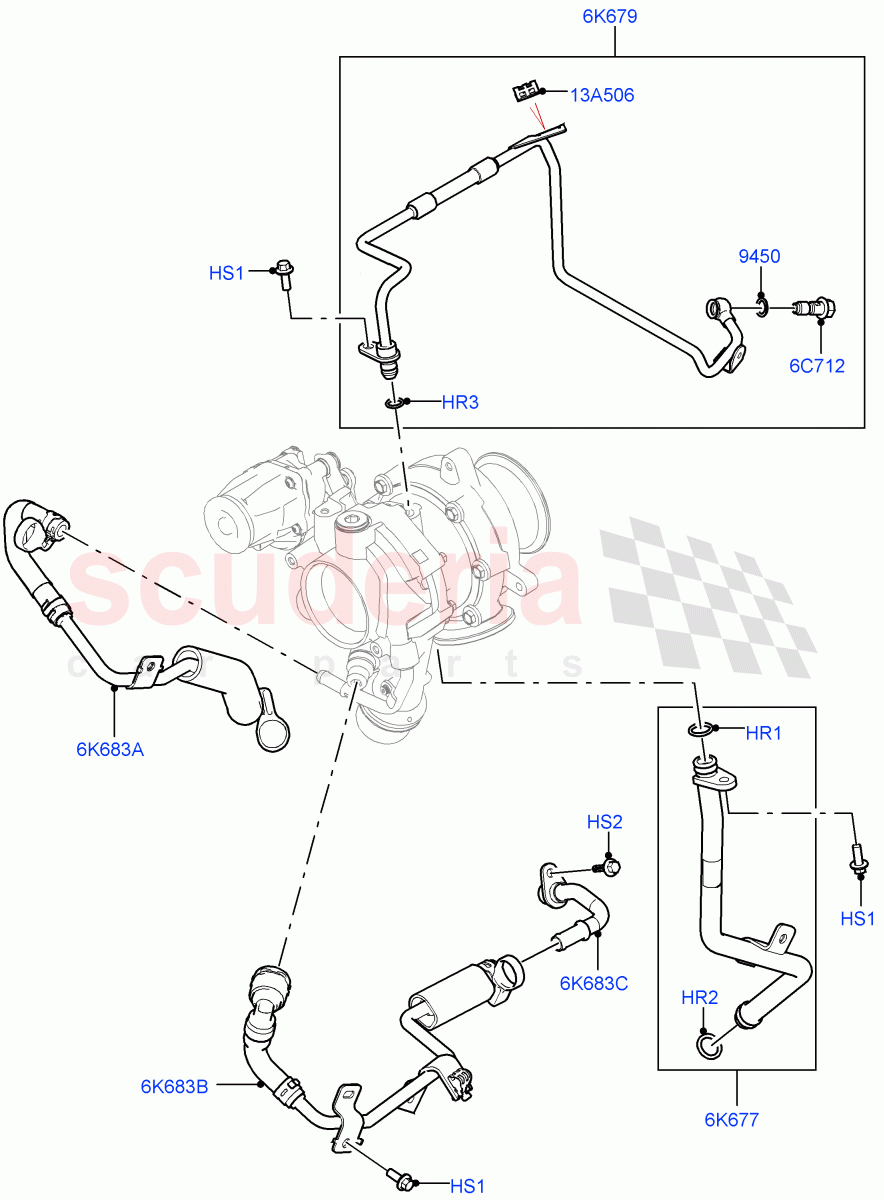

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073687	O-RING	$28.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073688	O-RING	$3.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR139741	O-RING	$4.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	$4.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR139740	BOLT - BANJO	$6.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139743	TUBE - OIL RETURN	$35.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR157911	PIPE - OIL FEED	$46.17	To Order

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	$0.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR159994	CONNECTION - WATER	$47.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139802	CONNECTION - WATER	$67.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139934	TUBE - CONNECTING	$19.14	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR073687	O-RING	LR073687 O-RING 14.3 x 2.4, Upper	$28.28	1
HR2	LR073688	O-RING IN STOCK	LR073688 O-RING 15 X 3MM, Lower IN STOCK	$3.81	1
HR3	LR139741	O-RING	LR139741 O-RING	$4.63	2
HS1	LR073686	SCREW	LR073686 SCREW M6 X 16MM	$2.38	4
HS2	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM IN STOCK	$1.54	1
6C712	LR139740	BOLT - BANJO	LR139740 BOLT - BANJO	$6.20	1
6K677	LR139743	TUBE - OIL RETURN	LR139743 TUBE - OIL RETURN Cylinder Block	$35.60	1
6K679	LR157911	PIPE - OIL FEED	LR157911 PIPE - OIL FEED	$46.17	1
6K683A	LR159994	CONNECTION - WATER	LR159994 CONNECTION - WATER Hose Water Inlet To Turbocharger	$47.72	1
6K683B	LR139802	CONNECTION - WATER	LR139802 CONNECTION - WATER Hose Water Outlet From Turbocharger	$67.13	1
6K683C	LR139934	TUBE - CONNECTING	LR139934 TUBE - CONNECTING Tube Water Outlet To Cylinder Block	$19.14	1
13A506	YQR000050	CLIP - WIRING IN STOCK	YQR000050 CLIP - WIRING IN STOCK	$0.76	1
9450	LR073671	WASHER - COPPER IN STOCK	LR073671 WASHER - COPPER Banjo Washer, Requires 2 Pcs Per Banjo-Bolt IN STOCK	$4.48	2

Turbocharger (Lubrication And Cooling) (2.0L Aj21D4 Diesel Mid, Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]
