Name: Turbocharger (Lubrication And Cooling) (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001)
Rating: 4.9 (1 reviews)

Turbocharger (Lubrication And Cooling) (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Turbocharger (Lubrication And Cooling) (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001)

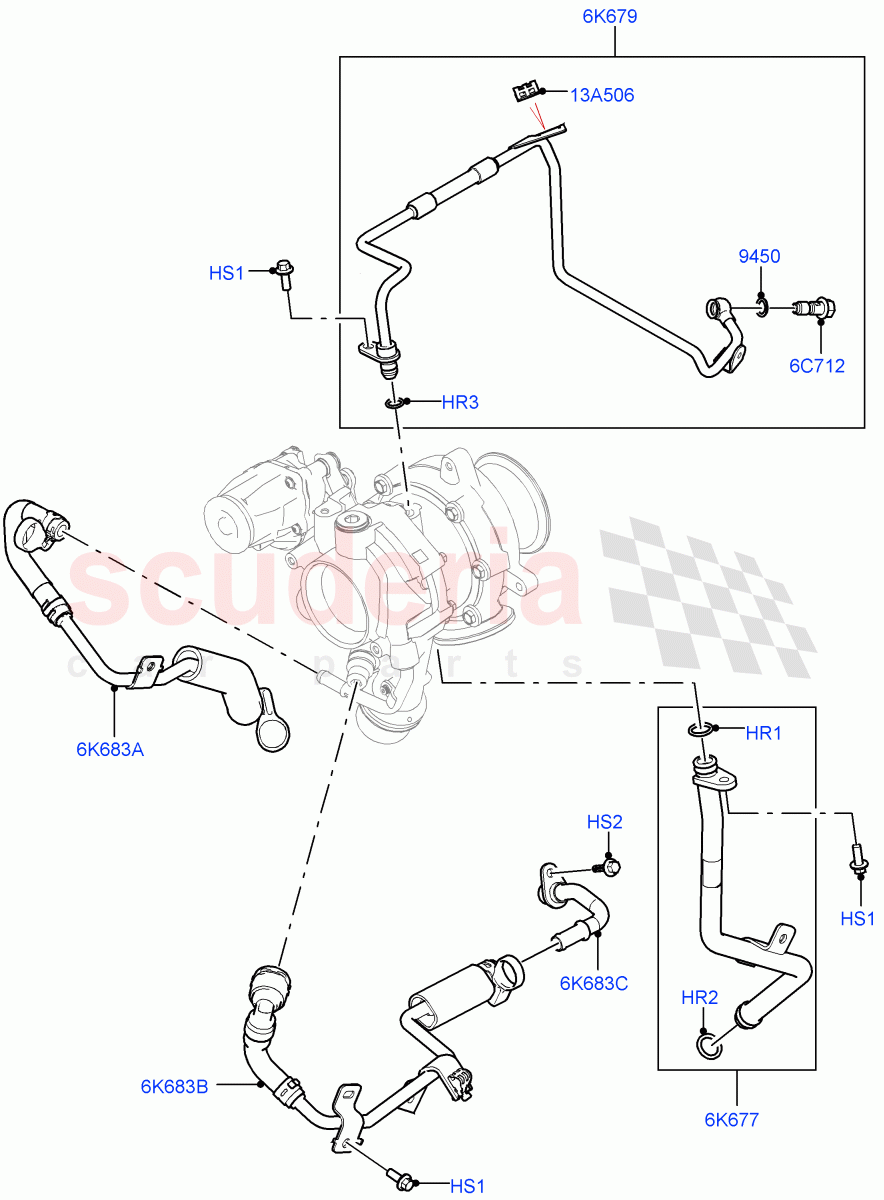

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR073687	O-RING	$28.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073688	O-RING	$3.81	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR139741	O-RING	$4.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073686	SCREW	$2.38	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073655	SCREW	$1.54	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR073671	WASHER - COPPER	$4.48	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR139740	BOLT - BANJO	$6.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139743	TUBE - OIL RETURN	$35.60	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139742	PIPE - OIL FEED	$42.79	To Order
	LR157911	PIPE - OIL FEED	$46.17	To Order

Photo	Part No	Description	Price (each)	Stock
	YQR000050	CLIP - WIRING	$0.76	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR139803	CONNECTION - WATER	$43.25	To Order
	LR159994	CONNECTION - WATER	$47.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139802	CONNECTION - WATER	$67.13	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139934	TUBE - CONNECTING	$19.14	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HR1	LR073687	O-RING	LR073687 O-RING 14.3 x 2.4, Upper / From: MH000001	$28.28	1
HR2	LR073688	O-RING IN STOCK	LR073688 O-RING 15 X 3MM, Lower / From: MH000001 IN STOCK	$3.81	1
HR3	LR139741	O-RING	LR139741 O-RING	$4.63	2
HS1	LR073686	SCREW	LR073686 SCREW M6 X 16MM / From: MH000001	$2.38	4
HS2	LR073655	SCREW IN STOCK	LR073655 SCREW Hexagonal Head, M6 X 20MM / From: MH000001 IN STOCK	$1.54	1
6C712	LR139740	BOLT - BANJO	LR139740 BOLT - BANJO From: MH000001	$6.20	1
6K677	LR139743	TUBE - OIL RETURN	LR139743 TUBE - OIL RETURN Cylinder Block / From: MH000001	$35.60	1
6K679	LR139742	PIPE - OIL FEED	LR139742 PIPE - OIL FEED From: MH000001 / To: MH143515	$42.79	1
6K679	LR157911	PIPE - OIL FEED	LR157911 PIPE - OIL FEED From: MH143516	$46.17	1
6K683A	LR139803	CONNECTION - WATER	LR139803 CONNECTION - WATER Hose Water Inlet To Turbocharger / From: MH000001 / To: MH151472	$43.25	1
6K683A	LR159994	CONNECTION - WATER	LR159994 CONNECTION - WATER Hose Water Inlet To Turbocharger / From: MH151473	$47.72	1
6K683B	LR139802	CONNECTION - WATER	LR139802 CONNECTION - WATER Hose Water Outlet From Turbocharger / From: MH000001	$67.13	1
6K683C	LR139934	TUBE - CONNECTING	LR139934 TUBE - CONNECTING Tube Water Outlet To Cylinder Block / From: MH000001	$19.14	1
13A506	YQR000050	CLIP - WIRING IN STOCK	YQR000050 CLIP - WIRING From: MH000001 IN STOCK	$0.76	1
9450	LR073671	WASHER - COPPER IN STOCK	LR073671 WASHER - COPPER Banjo Washer, Requires 2 Pcs Per Banjo-Bolt / From: MH000001 IN STOCK	$4.48	2
