Fuel Injectors And Pipes (2.0L Aj21D4 Diesel Mid, Itatiaia (Brazil))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Fuel Injectors And Pipes (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR139680 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR172461 O-RING Enquire To Order
Photo Part No Description Price (each) Stock
LR073655 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR073676 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR139696 TUBE - FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR139744 CLAMP - FUEL INJECTION Enquire To Order
Photo Part No Description Price (each) Stock
LR139723 MANIFOLD - FUEL SUPPLY Enquire To Order
Photo Part No Description Price (each) Stock
LR139693 INJECTOR - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR093848 WASHER - SEALING Enquire To Order
Photo Part No Description Price (each) Stock
LR157748 TUBE - INJECTION PUMP LEAK-OFF Enquire To Order
Photo Part No Description Price (each) Stock
LR128419 GLOW PLUG Enquire To Order
Photo Part No Description Price (each) Stock
LR139724 PIPE - FUEL INJECTION Enquire To Order
Photo Part No Description Price (each) Stock
LR139726 PIPE - FUEL INJECTION Enquire To Order
Photo Part No Description Price (each) Stock
LR139728 PIPE - FUEL INJECTION Enquire To Order
View All

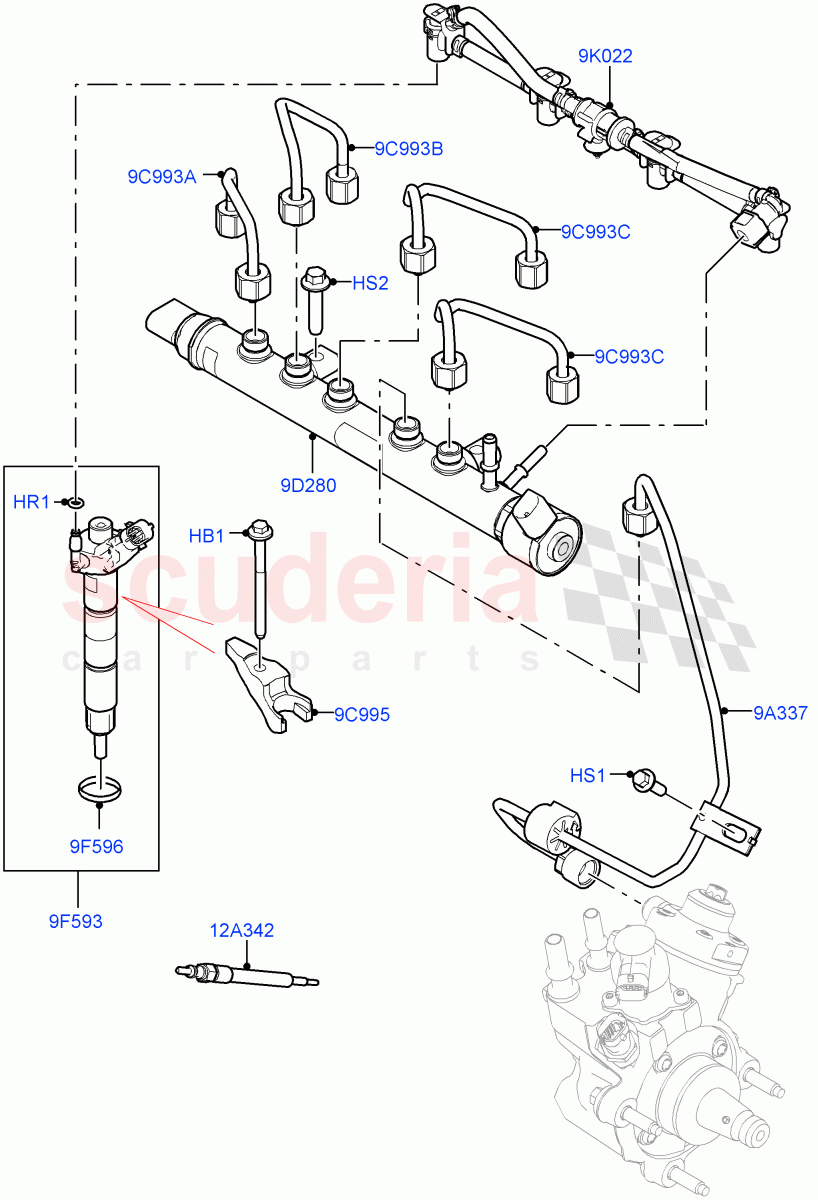

Fuel Injectors And Pipes (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR139680
BOLT
M6 X 74MM 		- 4 Enquire
HR1 LR172461
O-RING 		- 4 Enquire
HS1 LR073655
SCREW
Hexagonal Head, M6 X 20MM 		- 1 Enquire
HS2 LR073676
SCREW
M8 x 35mm 		- 2 Enquire
9A337 LR139696
TUBE - FUEL PUMP 		- 1 Enquire
9C993A LR139724
PIPE - FUEL INJECTION
Cylinder No.1 		- 1 Enquire
9C993B LR139726
PIPE - FUEL INJECTION
Cylinder No.2 		- 1 Enquire
9C993C LR139728
PIPE - FUEL INJECTION
Cylinder No.3, Cylinder No.4 		- 2 Enquire
9C995 LR139744
CLAMP - FUEL INJECTION 		- 4 Enquire
9D280 LR139723
MANIFOLD - FUEL SUPPLY 		- 1 Enquire
9F593 LR139693
INJECTOR - FUEL 		- 4 Enquire
9F596 LR093848
WASHER - SEALING 		- 4 Enquire
9K022 LR157748
TUBE - INJECTION PUMP LEAK-OFF
Leak Off 		- 1 Enquire
12A342 LR128419
GLOW PLUG 		- 4 Enquire
