Fuel Filter (2.0L Aj21D4 Diesel Mid, Halewood (Uk)) ((V) Frommh000001)

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Fuel Filter (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR019197 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
LR071774 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR082730 STUD Enquire To Order
Photo Part No Description Price (each) Stock
LR155579 FILTER - FUEL - PRIMARY Enquire To Order
LR155579 FILTER - FUEL - PRIMARY Enquire To Order
Photo Part No Description Price (each) Stock
LR139945 BRACKET - FUEL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR079995 FOAM PAD - ENERGY ABSORBING Enquire To Order
Photo Part No Description Price (each) Stock
LR139678 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR139943 TUBE - FUEL FILTER TO FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR139946 TUBE Enquire To Order
Photo Part No Description Price (each) Stock
LR139951 PIPE - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR139729 TUBE - FUEL RETURN Enquire To Order
Photo Part No Description Price (each) Stock
LR139936 TUBE - FUEL RETURN Enquire To Order
Photo Part No Description Price (each) Stock
LR117831 CLIP Enquire To Order
Photo Part No Description Price (each) Stock
LR139935 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
LR139730 BRACKET - FUEL TUBE SUPPORT Enquire To Order
View All

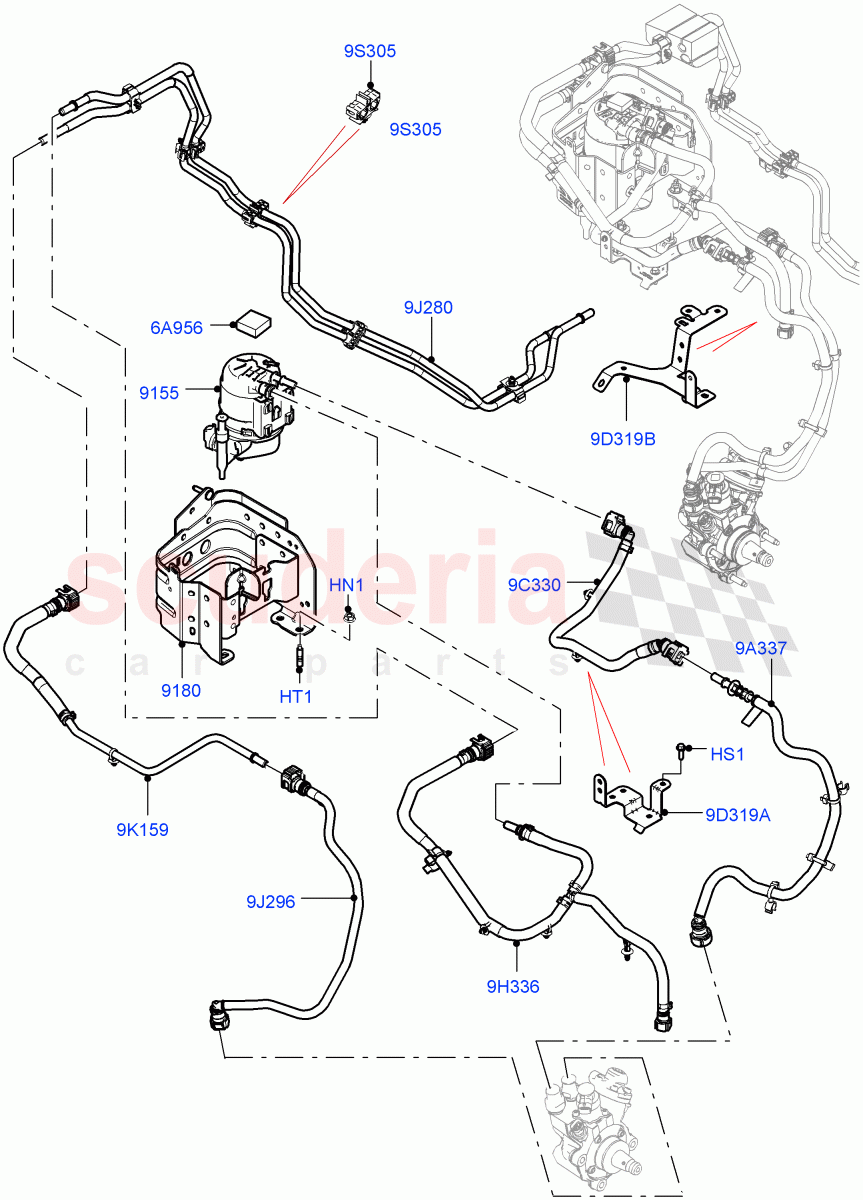

Fuel Filter (2.0L AJ21D4 Diesel Mid, Halewood (UK)) ((V) FROMMH000001) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HN1 LR019197
NUT - FLANGED
Domed Type, M8 / From: MH000001 		- 3 Enquire
HS1 LR071774
SCREW
Hexagonal Head, M6 X 20MM / From: MH000001 		- 3 Enquire
HT1 LR082730
STUD
M8 X 21.5MM + M8 X 22MM / From: MH000001 		- 3 Enquire
6A956 LR079995
FOAM PAD - ENERGY ABSORBING
From: MH000001 		- 1 Enquire
9A337 LR139678
PIPE - FUEL
Fuel Filter To High Pressure Pump, Pump Side / From: MH000001 		- 1 Enquire
9C330 LR139943
TUBE - FUEL FILTER TO FUEL PUMP
Fuel Filter To High Pressure Pump, Middle / From: MH000001 		- 1 Enquire
9D319A LR139935
BRACKET - SUPPORT
RH / From: MH000001 		- 1 Enquire
9D319B LR139730
BRACKET - FUEL TUBE SUPPORT
LH / From: MH000001 		- 1 Enquire
9H336 LR139946
TUBE
From Fuel Tank To Fuel Filter / From: MH000001 		- 1 Enquire
9J280 LR139951
PIPE - FUEL
Fuel Supply And Fuel Return / From: MH000001 		- 1 Enquire
9J296 LR139729
TUBE - FUEL RETURN
From High Pressure Fuel Pump To Fuel Tank, Pump Side / From: MH000001 		- 1 Enquire
9K159 LR139936
TUBE - FUEL RETURN
From High Pressure Fuel Pump To Fuel Tank, Middle / From: MH000001 		- 1 Enquire
9S305 LR117831
CLIP
Clip-Fuel Tube(Dual Latch) / From: MH000001 		- 3 Enquire
9155 LR155579
FILTER - FUEL - PRIMARY
When Ordering Filter Please Order Also Foam Pad LR079995 / From: MH000001 / To: MH147960 		- 1 Enquire
9155 LR155579
FILTER - FUEL - PRIMARY
When Ordering Filter Please Order Also Foam Pad LR079995 / From: MH147961 		- 1 Enquire
9180 LR139945
BRACKET - FUEL FILTER
With Earthing Cable / From: MH000001 		- 1 Enquire
