Name: Fuel Filter (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))
Rating: 4.5 (1 reviews)

Fuel Filter (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel AJ21D4] - Fuel Filter (2.0L AJ21D4 Diesel Mid, Itatiaia (Brazil))

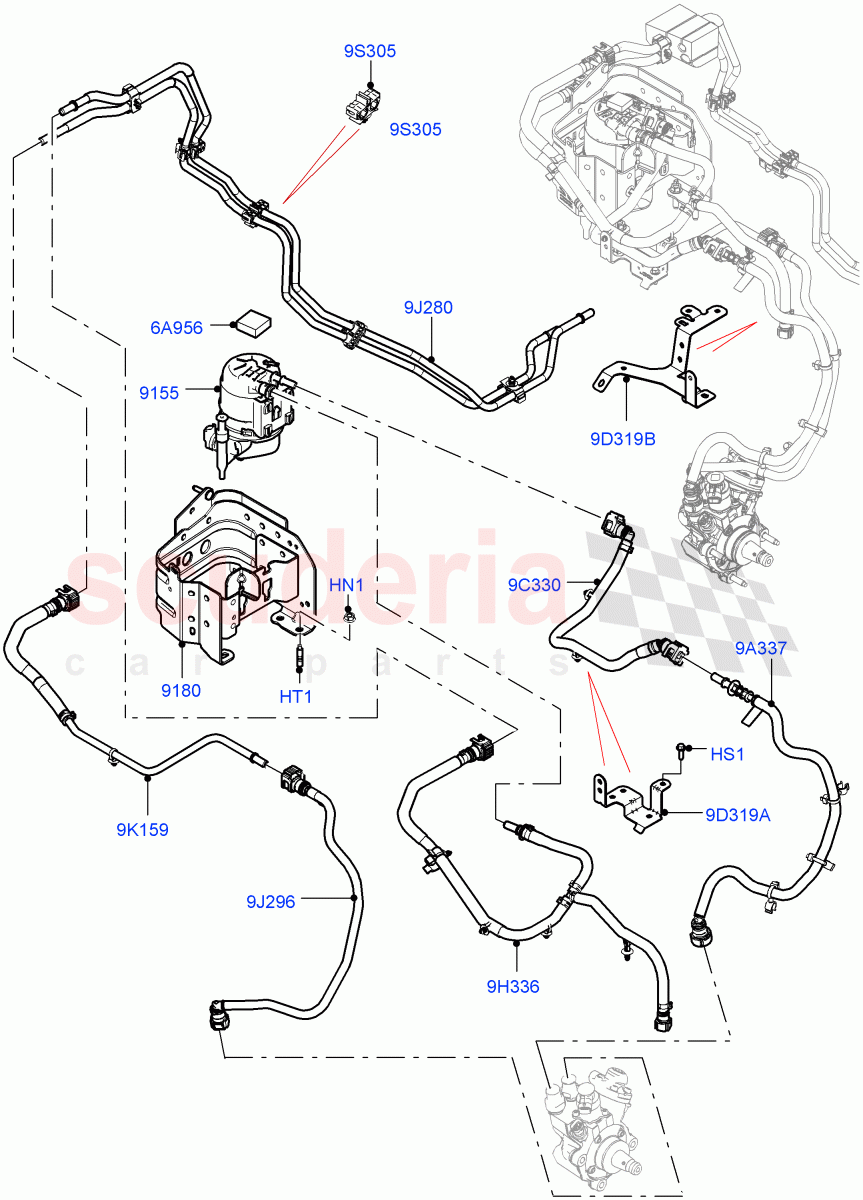

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR019197	NUT - FLANGED	$1.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR071774	SCREW	$2.23	To Order

Photo	Part No	Description	Price (each)	Stock
	LR082730	STUD	$1.97	To Order

Photo	Part No	Description	Price (each)	Stock
	202123503	FILTER - FUEL - PRIMARY	$81.12	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR139945	BRACKET - FUEL FILTER	$63.37	To Order

Photo	Part No	Description	Price (each)	Stock
	LR079995	FOAM PAD - ENERGY ABSORBING	$7.54	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139678	PIPE - FUEL	$61.91	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139943	TUBE - FUEL FILTER TO FUEL PUMP	$66.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139946	TUBE	$78.28	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139951	PIPE - FUEL	$179.92	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139729	TUBE - FUEL RETURN	$50.84	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139936	TUBE - FUEL RETURN	$30.89	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117831	CLIP	$3.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139935	BRACKET - SUPPORT	$21.66	To Order

Photo	Part No	Description	Price (each)	Stock
	LR139730	BRACKET - FUEL TUBE SUPPORT	$124.56	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HN1	LR019197	NUT - FLANGED IN STOCK	LR019197 NUT - FLANGED Domed Type, M8 IN STOCK	$1.88	3
HS1	LR071774	SCREW	LR071774 SCREW Hexagonal Head, M6 X 20MM	$2.23	3
HT1	LR082730	STUD	LR082730 STUD M8 X 21.5MM + M8 X 22MM	$1.97	3
6A956	LR079995	FOAM PAD - ENERGY ABSORBING	LR079995 FOAM PAD - ENERGY ABSORBING	$7.54	1
9A337	LR139678	PIPE - FUEL	LR139678 PIPE - FUEL Fuel Filter To High Pressure Pump, Pump Side	$61.91	1
9C330	LR139943	TUBE - FUEL FILTER TO FUEL PUMP	LR139943 TUBE - FUEL FILTER TO FUEL PUMP Fuel Filter To High Pressure Pump, Middle	$66.62	1
9D319A	LR139935	BRACKET - SUPPORT	LR139935 BRACKET - SUPPORT RH	$21.66	1
9D319B	LR139730	BRACKET - FUEL TUBE SUPPORT	LR139730 BRACKET - FUEL TUBE SUPPORT LH	$124.56	1
9H336	LR139946	TUBE	LR139946 TUBE From Fuel Tank To Fuel Filter	$78.28	1
9J280	LR139951	PIPE - FUEL	LR139951 PIPE - FUEL Fuel Supply And Fuel Return	$179.92	1
9J296	LR139729	TUBE - FUEL RETURN	LR139729 TUBE - FUEL RETURN From High Pressure Fuel Pump To Fuel Tank, Pump Side	$50.84	1
9K159	LR139936	TUBE - FUEL RETURN	LR139936 TUBE - FUEL RETURN From High Pressure Fuel Pump To Fuel Tank, Middle	$30.89	1
9S305	LR117831	CLIP	LR117831 CLIP Clip-Fuel Tube(Dual Latch)	$3.46	3
9155	202123503	FILTER - FUEL - PRIMARY IN STOCK	202123503 FILTER - FUEL - PRIMARY When Ordering Filter Please Order Also Foam Pad LR079995 IN STOCK	$81.12	1
9180	LR139945	BRACKET - FUEL FILTER	LR139945 BRACKET - FUEL FILTER With Earthing Cable	$63.37	1
