Airbag System (Changsu (China))

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Airbag System (Changsu (China))

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR123106 BOLT AND WASHER - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
XYG500160 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR138009 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR000046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR031341 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
RYH500420 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FYP500550 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
VYP500060 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR016626 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR128805 AIR BAG - PEDESTRIAN PROTECTION Enquire To Order
LR138409 AIR BAG - PEDESTRIAN PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
LR138559 SENSOR - AIR BAG Enquire To Order
LR139831 MODULE - AIR BAG Enquire To Order
Photo Part No Description Price (each) Stock
LR043878 SENSOR - SIDE AIR BAG Enquire To Order
Photo Part No Description Price (each) Stock
LR110730 KIT - RESTRAINT CIRCUIT REPAIR Enquire To Order
Photo Part No Description Price (each) Stock
LR117948 BRACKET - AIR BAG Enquire To Order
LR117949 BRACKET - AIR BAG Enquire To Order
Photo Part No Description Price (each) Stock
LR134552 AIR BAG - CURTAIN Enquire To Order
LR134553 AIR BAG - CURTAIN Enquire To Order
LR155846 AIR BAG - CURTAIN Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR115919 ACTUATOR - PEDESTRIAN PROTECTION Enquire To Order
Photo Part No Description Price (each) Stock
LR138561 SENSOR - AIR BAG Enquire To Order
Photo Part No Description Price (each) Stock
LR118238 SENSOR - PEDESTRIAN IMPACT Enquire To Order
Photo Part No Description Price (each) Stock
LR134912 BRACKET - AIR BAG Enquire To Order
LR136976 BRACKET - AIR BAG Enquire To Order
LR147551 BRACKET - SENSOR MOUNTING Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR134909 BRACKET - AIR BAG Enquire To Order
LR135695 BRACKET - AIR BAG Enquire To Order
Photo Part No Description Price (each) Stock
LR134545 AIR BAG - PASSENGER Enquire To Order
LR157952 AIR BAG - PASSENGER Enquire To Order
Photo Part No Description Price (each) Stock
LR134687 MODULE - AIR BAG Enquire To Order
LR133294 MODULE - AIR BAG Enquire To Order
LR166304 AIR BAG Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR134546 SIDE AIR BAG Enquire To Order
LR134548 SIDE AIR BAG Enquire To Order
View All

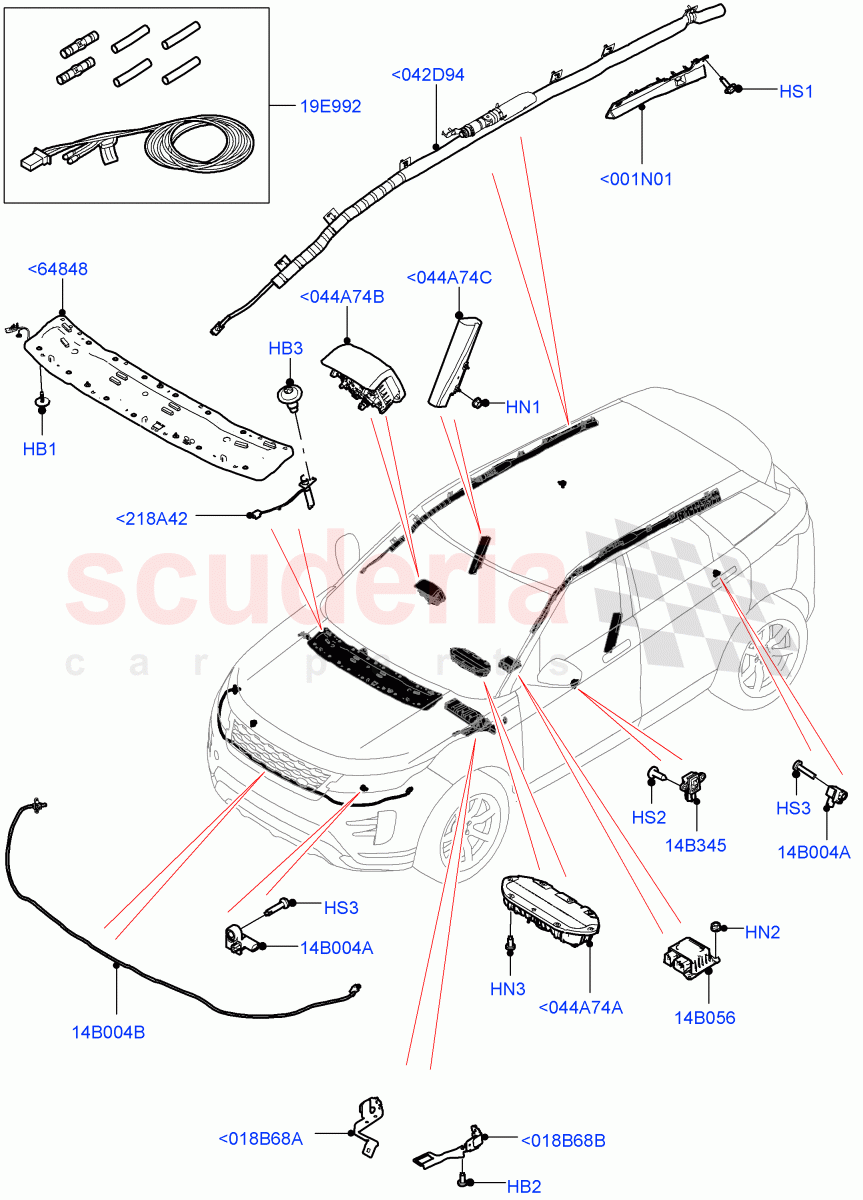

Airbag System (Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<001N01 LR117948
BRACKET - AIR BAG
RH, Curtain Airbag 		- 1 Enquire
<001N01 LR117949
BRACKET - AIR BAG
LH, Curtain Airbag 		- 1 Enquire
<018B68A LR134912
BRACKET - AIR BAG
Sensor - Occupant Classification / LH, Knee Airbag, Passenger / To: LG566665 		- 1 Enquire
<018B68A LR136976
BRACKET - AIR BAG
Sensor - Occupant Classification / LH, Driver, Knee Airbag / From: KG006088 		- 1 Enquire
<018B68A LR147551
BRACKET - SENSOR MOUNTING
Air Purge Ionisation / PM2.5 / LH, Knee Airbag, Passenger / From: MG575835 		- 1 Enquire
<018B68A LR135899
BRACKET - AIR BAG
Sensor - Occupant Classification / LH, Knee Airbag, Passenger / From: LG566666 		- 1 Enquire
<018B68A LR139179
BRACKET - AIR BAG
StBlt ELR Without Rear Pretensioner / LH, Driver, Knee Airbag / From: LG563984 		- 1 Enquire
<018B68B LR134909
BRACKET - AIR BAG
Sensor - Occupant Classification / RH, Knee Airbag, Passenger / To: MG575834 		- 1 Enquire
<018B68B LR135695
BRACKET - AIR BAG
Sensor - Occupant Classification / RH, Knee Airbag, Passenger / From: MG575835 		- 1 Enquire
<042D94 LR134552
AIR BAG - CURTAIN
RH / To: MG575834 		- 1 Enquire
<042D94 LR134553
AIR BAG - CURTAIN
LH / To: MG575834 		- 1 Enquire
<042D94 LR155846
AIR BAG - CURTAIN
Long Wheelbase / RH / From: MG575835 		- 1 Enquire
<042D94 LR155847
AIR BAG - CURTAIN
Long Wheelbase / LH / From: MG575835 		- 1 Enquire
<044A74A LR134545
AIR BAG - PASSENGER
Passenger / To: MG575834 		- 1 Enquire
<044A74A LR157952
AIR BAG - PASSENGER
Passenger / From: MG575835 		- 1 Enquire
<044A74B LR134687
MODULE - AIR BAG
Leather Steering Wheel / Driver / To: MG575834 		- 1 Enquire
<044A74B LR133294
MODULE - AIR BAG
Steering Wheel - Leather / Chrome / Driver / To: MG575834 		- 1 Enquire
<044A74B LR166304
AIR BAG
2.0L AJ20P4 Petrol Mid PTA, IP Contrast - Light Oyster / Driver / From: MG575835 		- 1 Enquire
<044A74B LR159063
AIR BAG
2.0L AJ20P4 Petrol Mid PTA, I/P Facia Contrast - Ebony Black / Driver / From: MG575835 		- 1 Enquire
<044A74B LR166305
AIR BAG
1.5L AJ20P3 Petrol High, IP Contrast - Light Oyster / Driver / From: MG575835 		- 1 Enquire
<044A74B LR159064
AIR BAG
1.5L AJ20P3 Petrol High, I/P Facia Contrast - Ebony Black / Driver / From: MG575835 		- 1 Enquire
<044A74C LR134546
SIDE AIR BAG
Sensor-Occ W/out Pass Airbag Cutoff / RH, Side 		- 1 Enquire
<044A74C LR134548
SIDE AIR BAG
With Occupant Sensor / LH, Side 		- 1 Enquire
<218A42 LR115919
ACTUATOR - PEDESTRIAN PROTECTION
Deployable Bonnet/Scuttle Abag / RH/LH 		- 2 Enquire
<64848 LR128805
AIR BAG - PEDESTRIAN PROTECTION
Deployable Bonnet/Scuttle Abag / To: KG006087 		- 1 Enquire
<64848 LR138409
AIR BAG - PEDESTRIAN PROTECTION
Deployable Bonnet/Scuttle Abag / From: KG006088 		- 1 Enquire
HB1 LR123106
BOLT AND WASHER - HEX.HEAD
Deployable Bonnet/Scuttle Abag / M6 x 18MM 		- 12 Enquire
HB2 XYG500160
BOLT
Sensor - Occupant Classification / Knee Airbag, M6 x 12MM, Torx 		- 8 Enquire
HB3 LR138009
BOLT
M6 x 12mm 		- 2 Enquire
HN1 LR000046
NUT - HEX.
Hexagonal Head, M6, With Front Seat Side Airbag 		- 4 Enquire
HN2 LR031341
NUT - HEX.
Air Bag Monitor, Hexagonal Head, M6 		- 3 Enquire
HN3 RYH500420
NUT AND WASHER - HEX.
Hexagonal Head, M6, Nut And Washer, Passenger Airbag 		- 8 Enquire
HS1 FYP500550
SCREW
Curtain Airbag, Hexagonal Head, M6 X 20MM 		- 4 Enquire
HS2 VYP500060
SCREW
4.8 X 16MM, For Side Airbags, Sensor, Torx 		- 4 Enquire
HS3 LR016626
SCREW
Crash Sensor, M6 X 21MM, Torx 		- 4 Enquire
14B004A LR138561
SENSOR - AIR BAG
Front, RH/LH 		- 2 Enquire
14B004B LR118238
SENSOR - PEDESTRIAN IMPACT
Deployable Bonnet / Bumper 		- 1 Enquire
14B056 LR138559
SENSOR - AIR BAG
To: MG575834 		- 1 Enquire
14B056 LR139831
MODULE - AIR BAG
From: MG575835 		- 1 Enquire
14B345 LR043878
SENSOR - SIDE AIR BAG
"B" Pillar, RH/LH 		- 2 Enquire
19E992 LR110730
KIT - RESTRAINT CIRCUIT REPAIR 		- 1 Enquire
