Headlining And Sun Visors (With Roof Conversion-Panorama Roof, Halewood (Uk), With Roof...

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

Find Your Part

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Headlining And Sun Visors (With Roof Conversion-Panorama Roof, Halewood (UK), With Roof...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
XYG500160 BOLT $0.88 IN STOCK
Photo Part No Description Price (each) Stock
LR124693 BOLT AND WASHER - HEX.HEAD $1.67 To Order
Photo Part No Description Price (each) Stock
LR117868 CLIP - ROOF TRIM MOUNTING $15.60 To Order
Photo Part No Description Price (each) Stock
LR073582 CLIP - TRIM - PILLARS $1.80 To Order
Photo Part No Description Price (each) Stock
LR038293 CLIP - CENTRE CONSOLE $1.05 To Order
Photo Part No Description Price (each) Stock
LR122752 NUT $11.78 To Order
Photo Part No Description Price (each) Stock
LR003450 SCREW $0.51 IN STOCK
LR003450 SCREW $0.51 IN STOCK
Photo Part No Description Price (each) Stock
LR006211 SCREW $0.50 IN STOCK
Photo Part No Description Price (each) Stock
LR027710 SPACER - SUNVISOR $2.38 To Order
Photo Part No Description Price (each) Stock
LR091313 LAMP - INTERIOR $142.10 To Order
LR079061 LAMP - INTERIOR $148.26 To Order
Photo Part No Description Price (each) Stock
LR117531 CARGO BRACKET - HEADLINING $11.35 To Order
LR117532 CARGO BRACKET - HEADLINING $11.35 To Order
LR126748 CARGO BRACKET - HEADLINING $12.94 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR091319 RETAINER - SUN VISOR $9.79 To Order
LR091320 RETAINER - SUN VISOR $4.51 To Order
Photo Part No Description Price (each) Stock
LR117807 HEADLINING - ROOF $1,480.57 To Order
LR117808 HEADLINING - ROOF $1,668.36 To Order
LR117811 HEADLINING - ROOF $1,483.01 To Order
...and 17 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR117814 CAP - PILLAR TRIM AIR BAG $6.85 To Order
LR117816 CAP - PILLAR TRIM AIR BAG $6.50 To Order
Photo Part No Description Price (each) Stock
LR117803 BRACKET - TRIM PANEL $25.15 To Order
LR117804 BRACKET - TRIM PANEL $28.49 To Order
Photo Part No Description Price (each) Stock
LR117813 MAGNET - HEADLINING $14.92 To Order
Photo Part No Description Price (each) Stock
LR146182 BEZEL - HEADLINING MICROPHONE $13.07 To Order
LR146183 BEZEL - HEADLINING MICROPHONE $13.83 To Order
Photo Part No Description Price (each) Stock
LR117527 BRACKET - HEADLINING SUPPORT $12.94 To Order
LR117528 BRACKET - HEADLINING SUPPORT $12.94 To Order
LR128373 BRACKET - HEADLINING SUPPORT $12.94 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR117529 BRACKET - HEADLINING SUPPORT $12.94 To Order
LR117530 BRACKET - HEADLINING SUPPORT $12.94 To Order
LR133130 BRACKET - HEADLINING SUPPORT $133.87 To Order
...and 5 more part variants. See table on right for more details.
View All

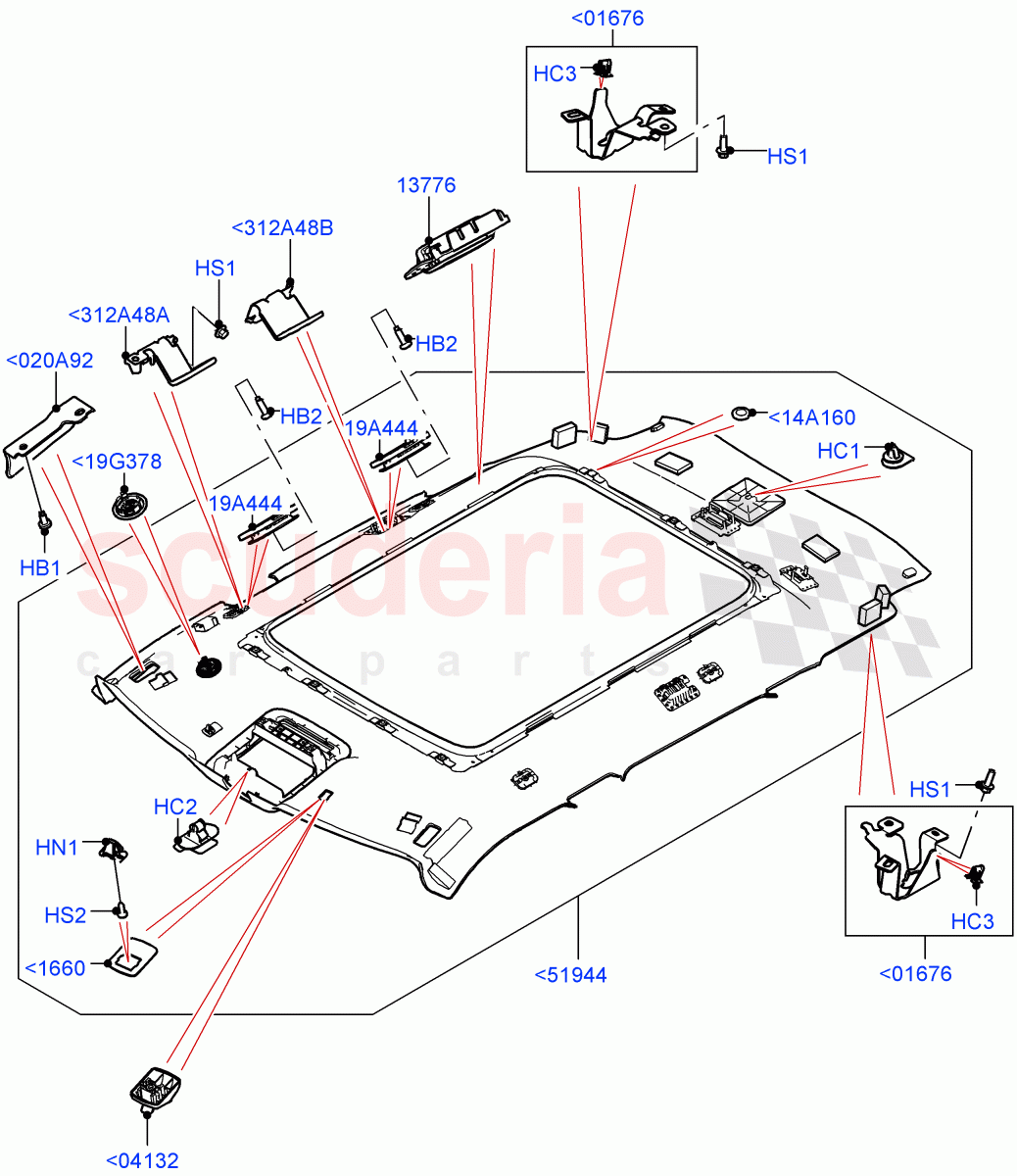

Headlining And Sun Visors (With Roof Conversion-Panorama Roof, Halewood (UK), With Roof Conversion-Panorama Power) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
<14A160 LR117813
MAGNET - HEADLINING
5 Door 		$14.92 7
<19G378 LR146182
BEZEL - HEADLINING MICROPHONE
Light Oyster Headliner / RH/LH / From: MH000001 		$13.07 2
<19G378 LR146183
BEZEL - HEADLINING MICROPHONE
Ebony Headliner / RH/LH / From: MH000001 		$13.83 2
<020A92 LR117803
BRACKET - TRIM PANEL
With Head Impact Crash Criteria / RH 		$25.15 1
<020A92 LR117804
BRACKET - TRIM PANEL
With Head Impact Crash Criteria / LH 		$28.49 1
<312A48A LR117527
BRACKET - HEADLINING SUPPORT
RH, Front / To: KH999999 		$12.94 1
<312A48A LR117528
BRACKET - HEADLINING SUPPORT
LH, Front / To: KH999999 		$12.94 1
<312A48A LR128373
BRACKET - HEADLINING SUPPORT
With Roof Conversion-Panorama Roof / RH, Front / From: LH000001 		$12.94 1
<312A48A LR128372
BRACKET - HEADLINING SUPPORT
With Roof Conversion-Panorama Roof / LH, Front / From: LH000001 		$12.94 1
<312A48A LR133128
BRACKET - HEADLINING SUPPORT
With Roof Conversion-Panorama Power / LH, Front / From: LH000001 		$126.19 1
<312A48A LR133127
BRACKET - HEADLINING SUPPORT
With Roof Conversion-Panorama Power / RH, Front / From: LH000001 		$133.87 1
<312A48B LR117529
BRACKET - HEADLINING SUPPORT
With Roof Conversion-Panorama Roof / RH, Rear 		$12.94 1
<312A48B LR117530
BRACKET - HEADLINING SUPPORT
With Roof Conversion-Panorama Roof / LH, Rear 		$12.94 1
<312A48B LR133130
BRACKET - HEADLINING SUPPORT
With Roof Conversion-Panorama Power / LH, Rear / From: LH000001 / To: LH067374 		$133.87 1
<312A48B LR133129
BRACKET - HEADLINING SUPPORT
With Roof Conversion-Panorama Power / RH, Rear / From: LH000001 / To: LH067374 		$133.87 1
<312A48B LR139500
BRACKET - HEADLINING SUPPORT
With Roof Conversion-Panorama Power / RH, Rear / From: LH067375 / To: NH166346 		$166.35 1
<312A48B LR139499
BRACKET - HEADLINING SUPPORT
With Roof Conversion-Panorama Power / LH, Rear / From: LH067375 / To: NH166346 		$156.84 1
<312A48B LR155863
BRACKET - HEADLINING SUPPORT
With Roof Conversion-Panorama Power / RH, Rear / From: NH166347 		$26.64 1
<312A48B LR155862
BRACKET - HEADLINING SUPPORT
With Roof Conversion-Panorama Power / LH, Rear / From: NH166347 		$26.64 1
<1660 LR027710
SPACER - SUNVISOR
5 Door / RH/LH 		$2.38 2
<01676 LR117531
CARGO BRACKET - HEADLINING
With Luggage Net / RH / To: LH086039 		$11.35 1
<01676 LR117532
CARGO BRACKET - HEADLINING
With Luggage Net / LH / To: LH086039 		$11.35 1
<01676 LR126748
CARGO BRACKET - HEADLINING
With Luggage Net / LH / From: LH086040 		$12.94 1
<01676 LR126747
CARGO BRACKET - HEADLINING
With Luggage Net / RH / From: LH086040 		$12.83 1
<04132 LR091319
RETAINER - SUN VISOR
Light Oyster Headliner / RH/LH 		$9.79 2
<04132 LR091320
RETAINER - SUN VISOR
Ebony Headliner / RH/LH 		$4.51 2
<51944 LR117807
HEADLINING - ROOF
Interior Trim - Morzine, Light Oyster Headliner, With Roof Conversion-Panorama Roof / To: LH071404 		$1,480.57 1
<51944 LR117808
HEADLINING - ROOF
Ebony Headliner, Interior Trim - Morzine, With Roof Conversion-Panorama Roof / To: LH071404 		$1,668.36 1
<51944 LR117811
HEADLINING - ROOF
Interior Trim - Alston, Light Oyster Headliner, With Roof Conversion-Panorama Roof / To: LH071404 		$1,483.01 1
<51944 LR117812
HEADLINING - ROOF
Ebony Headliner, Interior Trim - Alston, With Roof Conversion-Panorama Roof / To: LH071404 		$1,483.01 1
<51944 LR128101
HEADLINING - ROOF
Interior Trim - Morzine, Light Oyster Headliner, With Roof Conversion-Panorama Power / From: LH000001 / To: LH999999 		$1,436.62 1
<51944 LR128102
HEADLINING - ROOF
Ebony Headliner, Interior Trim - Morzine, With Roof Conversion-Panorama Power / From: LH000001 / To: LH999999 		$1,619.79 1
<51944 LR128103
HEADLINING - ROOF
Interior Trim - Alston, Light Oyster Headliner, With Roof Conversion-Panorama Power / From: LH000001 / To: LH999999 		$1,799.77 1
<51944 LR128104
HEADLINING - ROOF
Ebony Headliner, Interior Trim - Alston, With Roof Conversion-Panorama Power / From: LH000001 / To: LH999999 		$1,799.77 1
<51944 LR140178
HEADLINING - ROOF
Interior Trim - Morzine, Light Oyster Headliner, With Roof Conversion-Panorama Roof / From: LH071405 / To: LH999999 		$1,607.45 1
<51944 LR140179
HEADLINING - ROOF
Ebony Headliner, Interior Trim - Morzine, With Roof Conversion-Panorama Roof / From: LH071405 / To: LH999999 		$1,607.45 1
<51944 LR140176
HEADLINING - ROOF
Interior Trim - Alston, Light Oyster Headliner, With Roof Conversion-Panorama Roof / From: LH071405 / To: LH999999 		$1,428.86 1
<51944 LR140177
HEADLINING - ROOF
Ebony Headliner, Interior Trim - Alston, With Roof Conversion-Panorama Roof / From: LH071405 / To: LH999999 		$1,428.86 1
<51944 LR144872
HEADLINING - ROOF
Interior Trim - Morzine, Light Oyster Headliner, With Roof Conversion-Panorama Roof / From: MH000001 		$1,668.36 1
<51944 LR144873
HEADLINING - ROOF
Ebony Headliner, Interior Trim - Morzine, With Roof Conversion-Panorama Roof / From: MH000001 		$1,668.36 1
<51944 LR144876
HEADLINING - ROOF
Interior Trim - Alston, Light Oyster Headliner, With Roof Conversion-Panorama Roof / From: MH000001 		$1,483.01 1
<51944 LR144877
HEADLINING - ROOF
Ebony Headliner, Interior Trim - Alston, With Roof Conversion-Panorama Roof / From: MH000001 		$1,483.01 1
<51944 LR144878
HEADLINING - ROOF
Interior Trim - Morzine, Light Oyster Headliner, With Roof Conversion-Panorama Power / From: MH000001 		$1,619.79 1
<51944 LR144879
HEADLINING - ROOF
Ebony Headliner, Interior Trim - Morzine, With Roof Conversion-Panorama Power / From: MH000001 		$1,619.79 1
<51944 LR144880
HEADLINING - ROOF
Interior Trim - Alston, Light Oyster Headliner, With Roof Conversion-Panorama Power / From: MH000001 		$1,799.77 1
<51944 LR144881
HEADLINING - ROOF
Ebony Headliner, Interior Trim - Alston, With Roof Conversion-Panorama Power / From: MH000001 		$1,799.77 1
HB1 XYG500160
BOLT
With Head Impact Crash Criteria / M6 x 12MM, Torx
IN STOCK 		$0.88 4
HB2 LR124693
BOLT AND WASHER - HEX.HEAD
Airbag Cap To Bracket, M6 X 18.5 		$1.67 4
HC1 LR117868
CLIP - ROOF TRIM MOUNTING
Center Rear, Headlining 		$15.60 1
HC2 LR073582
CLIP - TRIM - PILLARS
20 X 7.8 + 0.8-1.2, Console 		$1.80 3
HC3 LR038293
CLIP - CENTRE CONSOLE
With Luggage Net / 1.35 X 6 X 22 X 0.7 - 1.2, For Cargo Net Bracket 		$1.05 2
HN1 LR122752
NUT
4.8X12X15X0.7-1.5 		$11.78 1
HS1 LR003450
SCREW
Bracket To BIW, M6 X 16MM
IN STOCK 		$0.51 4
HS1 LR003450
SCREW
With Luggage Net / For Cargo Net Bracket, M6 X 16MM
IN STOCK 		$0.51 6
HS2 LR006211
SCREW
4.2 x 16MM, Torx
IN STOCK 		$0.50 1
19A444 LR117814
CAP - PILLAR TRIM AIR BAG
5 Door, Light Oyster Headliner / RH/LH 		$6.85 4
19A444 LR117816
CAP - PILLAR TRIM AIR BAG
5 Door, Ebony Headliner / RH/LH 		$6.50 4
13776 LR091313
LAMP - INTERIOR
Light Oyster Headliner / Rear Lamp, RH/LH 		$142.10 2
13776 LR079061
LAMP - INTERIOR
Ebony Headliner / Rear Lamp, RH/LH 		$148.26 2
