Console - Floor (External Components) (Changsu (China)) ((V) TOMG575834) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Console - Floor (External Components) (Changsu (China)) ((V) TOMG575834)

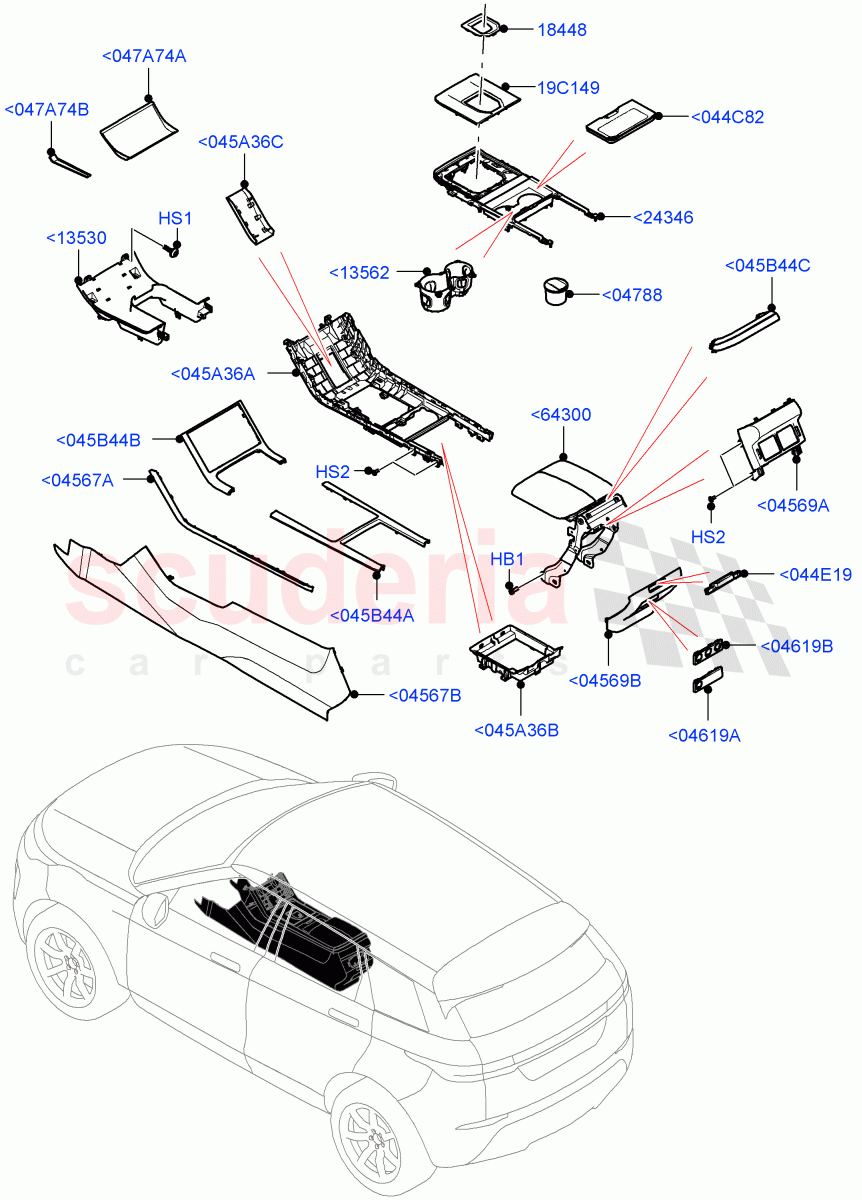

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR124802	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR026428	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	PYP500140	SCREW	Enquire	To Order
	PYP500140	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR128696	MOULDING - FLOOR CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR067410	ASH RECEPTACLE - CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115545	TRAY - CONSOLE	Enquire	To Order
	LR115546	TRAY - CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR131094	HOLDER - CUP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115531	MOULDING - FLOOR CONSOLE	Enquire	To Order
	LR115533	MOULDING - FLOOR CONSOLE	Enquire	To Order
	LR115534	MOULDING - FLOOR CONSOLE	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR133147	ARMREST - CONSOLE LID	Enquire	To Order
	LR133140	ARMREST - CONSOLE LID	Enquire	To Order
	LR133133	ARMREST - CONSOLE LID	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR115574	BEZEL - CENTRE CONSOLE	Enquire	To Order
	LR115572	BEZEL - CENTRE CONSOLE	Enquire	To Order
	LR115570	BEZEL - CENTRE CONSOLE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR129321	TRAY - CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115558	INTAGLIO - CONSOLE CENTRE	Enquire	To Order
	LR117979	INTAGLIO - CONSOLE CENTRE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115547	FINISHER - CENTRE FLOOR CONSOLE	Enquire	To Order
	LR115548	FINISHER - CENTRE FLOOR CONSOLE	Enquire	To Order
	LR115549	FINISHER - CENTRE FLOOR CONSOLE	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR131180	PANEL - CONSOLE SIDE	Enquire	To Order
	LR131179	PANEL - CONSOLE SIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115319	PANEL - CONSOLE - END FINISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115320	PANEL - CONSOLE - END FINISHER	Enquire	To Order
	LR125364	PANEL - CONSOLE - END FINISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076856	BEZEL - USB PORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR076857	BEZEL - USB PORT	Enquire	To Order
	LR149145	BEZEL - USB PORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129312	PANEL - CONSOLE	Enquire	To Order
	LR129309	PANEL - CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR129308	PANEL - CONSOLE - CENTRE FINISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115539	FINISHER - CENTRE FLOOR CONSOLE	Enquire	To Order
	LR115540	FINISHER - CENTRE FLOOR CONSOLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115544	PANEL - CONSOLE - CENTRE FINISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115555	PANEL - CONSOLE - CENTRE FINISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115541	PANEL - CONSOLE - CENTRE FINISHER	Enquire	To Order
	LR115542	PANEL - CONSOLE - CENTRE FINISHER	Enquire	To Order
	LR115543	PANEL - CONSOLE - CENTRE FINISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115000	MAT - CONSOLE STOWAGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115003	MAT - CONSOLE STOWAGE	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<044C82	LR129321	TRAY - CONSOLE	LR129321 TRAY - CONSOLE	-	1	Enquire
<044E19	LR115558	INTAGLIO - CONSOLE CENTRE	LR115558 INTAGLIO - CONSOLE CENTRE Less Rear Seat Heating, Touch Pro Duo	-	1	Enquire
<044E19	LR117979	INTAGLIO - CONSOLE CENTRE	LR117979 INTAGLIO - CONSOLE CENTRE Less Rear Seat Heating, MFD Single View Screen	-	1	Enquire
<045A36A	LR129312	PANEL - CONSOLE	LR129312 PANEL - CONSOLE Touch Pro Duo / Console Carrier	-	1	Enquire
<045A36A	LR129309	PANEL - CONSOLE	LR129309 PANEL - CONSOLE MFD Single View Screen / Console Carrier	-	1	Enquire
<045A36B	LR129308	PANEL - CONSOLE - CENTRE FINISHER	LR129308 PANEL - CONSOLE - CENTRE FINISHER Lid	-	1	Enquire
<045A36C	LR115539	FINISHER - CENTRE FLOOR CONSOLE	LR115539 FINISHER - CENTRE FLOOR CONSOLE MFD Single View Screen / Front	-	1	Enquire
<045A36C	LR115540	FINISHER - CENTRE FLOOR CONSOLE	LR115540 FINISHER - CENTRE FLOOR CONSOLE Touch Pro Duo / Front	-	1	Enquire
<045B44A	LR115544	PANEL - CONSOLE - CENTRE FINISHER	LR115544 PANEL - CONSOLE - CENTRE FINISHER Centre	-	1	Enquire
<045B44B	LR115555	PANEL - CONSOLE - CENTRE FINISHER	LR115555 PANEL - CONSOLE - CENTRE FINISHER MFD Single View Screen / Front	-	1	Enquire
<045B44C	LR115541	PANEL - CONSOLE - CENTRE FINISHER	LR115541 PANEL - CONSOLE - CENTRE FINISHER I/P Insert - Bright Chrome, Touch Pro Duo / Rear	-	1	Enquire
<045B44C	LR115542	PANEL - CONSOLE - CENTRE FINISHER	LR115542 PANEL - CONSOLE - CENTRE FINISHER Touch Pro Duo / Rear	-	1	Enquire
<045B44C	LR115543	PANEL - CONSOLE - CENTRE FINISHER	LR115543 PANEL - CONSOLE - CENTRE FINISHER MFD Single View Screen / Rear	-	1	Enquire
<047A74A	LR115000	MAT - CONSOLE STOWAGE	LR115000 MAT - CONSOLE STOWAGE Centre	-	1	Enquire
<047A74B	LR115003	MAT - CONSOLE STOWAGE	LR115003 MAT - CONSOLE STOWAGE RH/LH	-	2	Enquire
<04567A	LR115547	FINISHER - CENTRE FLOOR CONSOLE	LR115547 FINISHER - CENTRE FLOOR CONSOLE MFD Single View Screen / RH	-	1	Enquire
<04567A	LR115548	FINISHER - CENTRE FLOOR CONSOLE	LR115548 FINISHER - CENTRE FLOOR CONSOLE I/P Insert - Bright Chrome, Touch Pro Duo / RH	-	1	Enquire
<04567A	LR115549	FINISHER - CENTRE FLOOR CONSOLE	LR115549 FINISHER - CENTRE FLOOR CONSOLE I/P Insert - Dark Chrome, Touch Pro Duo / RH	-	1	Enquire
<04567A	LR115550	FINISHER - CENTRE FLOOR CONSOLE	LR115550 FINISHER - CENTRE FLOOR CONSOLE MFD Single View Screen / LH	-	1	Enquire
<04567A	LR115551	FINISHER - CENTRE FLOOR CONSOLE	LR115551 FINISHER - CENTRE FLOOR CONSOLE Touch Pro Duo / LH	-	1	Enquire
<04567A	LR115552	FINISHER - CENTRE FLOOR CONSOLE	LR115552 FINISHER - CENTRE FLOOR CONSOLE I/P Insert - Dark Chrome, Touch Pro Duo / LH	-	1	Enquire
<04567B	LR131180	PANEL - CONSOLE SIDE	LR131180 PANEL - CONSOLE SIDE RH	-	1	Enquire
<04567B	LR131179	PANEL - CONSOLE SIDE	LR131179 PANEL - CONSOLE SIDE LH	-	1	Enquire
<04569A	LR115319	PANEL - CONSOLE - END FINISHER	LR115319 PANEL - CONSOLE - END FINISHER Upper	-	1	Enquire
<04569B	LR115320	PANEL - CONSOLE - END FINISHER	LR115320 PANEL - CONSOLE - END FINISHER Less Rear Seat Heating / Lower	-	1	Enquire
<04569B	LR125364	PANEL - CONSOLE - END FINISHER	LR125364 PANEL - CONSOLE - END FINISHER Heated Rear Seats / Lower	-	1	Enquire
<04619A	LR076856	BEZEL - USB PORT	LR076856 BEZEL - USB PORT Power Base / With 1 Socket	-	1	Enquire
<04619B	LR076857	BEZEL - USB PORT	LR076857 BEZEL - USB PORT Power Plus / With 3 Sockets / To: LG568381	-	1	Enquire
<04619B	LR149145	BEZEL - USB PORT	LR149145 BEZEL - USB PORT Power Plus / With 3 Sockets / From: LG568382	-	1	Enquire
<04788	LR067410	ASH RECEPTACLE - CONSOLE	LR067410 ASH RECEPTACLE - CONSOLE With Smokers Package	-	1	Enquire
<13530	LR115545	TRAY - CONSOLE	LR115545 TRAY - CONSOLE MFD Single View Screen	-	1	Enquire
<13530	LR115546	TRAY - CONSOLE	LR115546 TRAY - CONSOLE Touch Pro Duo	-	1	Enquire
<13562	LR131094	HOLDER - CUP	LR131094 HOLDER - CUP	-	1	Enquire
<24346	LR115531	MOULDING - FLOOR CONSOLE	LR115531 MOULDING - FLOOR CONSOLE I/P Insert - Bright Chrome, MFD Single View Screen, With Smokers Package	-	1	Enquire
<24346	LR115533	MOULDING - FLOOR CONSOLE	LR115533 MOULDING - FLOOR CONSOLE I/P Insert - Dark Chrome, Infotainment Screen - 10", With Smokers Package	-	1	Enquire
<24346	LR115534	MOULDING - FLOOR CONSOLE	LR115534 MOULDING - FLOOR CONSOLE I/P Insert - Bright Chrome, Touch Pro Duo, With Smokers Package	-	1	Enquire
<24346	LR115536	MOULDING - FLOOR CONSOLE	LR115536 MOULDING - FLOOR CONSOLE I/P Insert - Dark Chrome, Touch Pro Duo, With Smokers Package	-	1	Enquire
<24346	LR131101	MOULDING - FLOOR CONSOLE	LR131101 MOULDING - FLOOR CONSOLE I/P Insert - Bright Chrome, Infotainment Screen - 10", Less Smokers Package	-	1	Enquire
<24346	LR131104	MOULDING - FLOOR CONSOLE	LR131104 MOULDING - FLOOR CONSOLE I/P Insert - Dark Chrome, Less Smokers Package, MFD Single View Screen	-	1	Enquire
<24346	LR131109	MOULDING - FLOOR CONSOLE	LR131109 MOULDING - FLOOR CONSOLE I/P Insert - Bright Chrome, Less Smokers Package, Touch Pro Duo	-	1	Enquire
<24346	LR131111	MOULDING - FLOOR CONSOLE	LR131111 MOULDING - FLOOR CONSOLE I/P Insert - Dark Chrome, Less Smokers Package, Touch Pro Duo	-	1	Enquire
<64300	LR133147	ARMREST - CONSOLE LID	LR133147 ARMREST - CONSOLE LID I/P Facia Contrast - Cloud/Ebony, PVC Door Armrest	-	1	Enquire
<64300	LR133140	ARMREST - CONSOLE LID	LR133140 ARMREST - CONSOLE LID I/P Facia Contrast - Ebony Black, PVC Door Armrest	-	1	Enquire
<64300	LR133133	ARMREST - CONSOLE LID	LR133133 ARMREST - CONSOLE LID I/P Facia Contrast - Ebony/Blue, Leather Door Armrest	-	1	Enquire
<64300	LR133134	ARMREST - CONSOLE LID	LR133134 ARMREST - CONSOLE LID I/P Facia Contrast - Cloud/Ebony, Leather Door Armrest	-	1	Enquire
<64300	LR133131	ARMREST - CONSOLE LID	LR133131 ARMREST - CONSOLE LID IP Facia Contrast-Deep Garnet/Ebony, Leather Door Armrest	-	1	Enquire
<64300	LR133132	ARMREST - CONSOLE LID	LR133132 ARMREST - CONSOLE LID I/P Facia Contrast - Ebony Black, Leather Door Armrest	-	1	Enquire
HB1	LR124802	BOLT	LR124802 BOLT Fixing Armrest	-	8	Enquire
HS1	LR026428	SCREW	LR026428 SCREW Console Tray, M4 x 16MM	-	6	Enquire
HS2	PYP500140	SCREW	PYP500140 SCREW 4.2 x 13MM, Panel - Console End Finisher, Torx, Upper	-	4	Enquire
HS2	PYP500140	SCREW	PYP500140 SCREW 4.2 x 13MM, Console, Panel, Torx	-	10	Enquire
19C149	LR115574	BEZEL - CENTRE CONSOLE	LR115574 BEZEL - CENTRE CONSOLE Finisher-Matt/Glass Lines Brgt Alum, MFD Single View Screen / Gearshift Surround	-	1	Enquire
19C149	LR115572	BEZEL - CENTRE CONSOLE	LR115572 BEZEL - CENTRE CONSOLE Finisher-Matt/Glass Lines Dark Alum, MFD Single View Screen / Gearshift Surround	-	1	Enquire
19C149	LR115570	BEZEL - CENTRE CONSOLE	LR115570 BEZEL - CENTRE CONSOLE Finisher-Linear Dark Alum W/Coppper, MFD Single View Screen / Gearshift Surround	-	1	Enquire
19C149	LR115569	BEZEL - CENTRE CONSOLE	LR115569 BEZEL - CENTRE CONSOLE Finisher-Matt/Glass Lines Brgt Alum, Touch Pro Duo / Gearshift Surround	-	1	Enquire
19C149	LR115568	BEZEL - CENTRE CONSOLE	LR115568 BEZEL - CENTRE CONSOLE Finisher-Matt/Glass Lines Dark Alum, Touch Pro Duo / Gearshift Surround	-	1	Enquire
19C149	LR115567	BEZEL - CENTRE CONSOLE	LR115567 BEZEL - CENTRE CONSOLE Finisher-Linear Dark Alum W/Coppper, Touch Pro Duo / Gearshift Surround	-	1	Enquire
18448	LR128696	MOULDING - FLOOR CONSOLE	LR128696 MOULDING - FLOOR CONSOLE Gearshift Surround	-	1	Enquire
