Rear Door Trim Installation (Changsu (China)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Rear Door Trim Installation (Changsu (China))

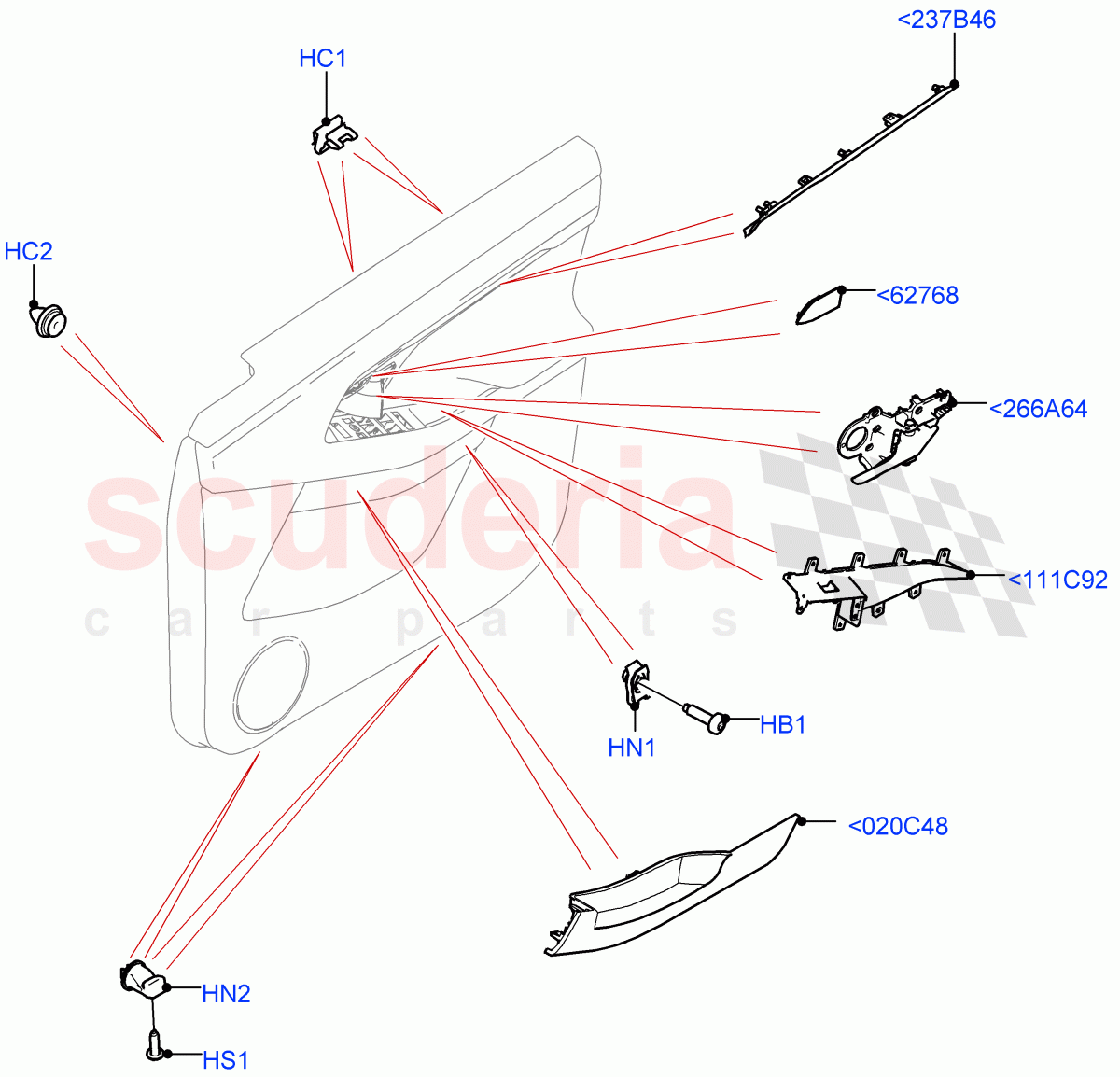

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR123630	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR091469	CLIP - DOOR INNER PANEL	Enquire	To Order
	LR091469	CLIP - DOOR INNER PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR090382	CLIP - LANTERN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR123718	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039636	NUT - EXPANSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR007312	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114656	COVER - DOOR INSIDE HANDLE	Enquire	To Order
	LR128670	COVER - DOOR INSIDE HANDLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR138243	COVER - DOOR INNER PANEL	Enquire	To Order
	LR138242	COVER - DOOR INNER PANEL	Enquire	To Order
	LR155413	COVER - DOOR INNER PANEL	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR117957	COVER - DOOR SWITCH	Enquire	To Order
	LR117986	COVER - DOOR SWITCH	Enquire	To Order
	LR117953	COVER - DOOR SWITCH	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR114580	FINISHER - DOOR	Enquire	To Order
	LR114581	FINISHER - DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115615	HANDLE - DOOR - INNER	Enquire	To Order
	LR115616	HANDLE - DOOR - INNER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<020C48	LR138243	COVER - DOOR INNER PANEL	LR138243 COVER - DOOR INNER PANEL RH / To: MG575834	-	1	Enquire
<020C48	LR138242	COVER - DOOR INNER PANEL	LR138242 COVER - DOOR INNER PANEL LH / To: MG575834	-	1	Enquire
<020C48	LR155413	COVER - DOOR INNER PANEL	LR155413 COVER - DOOR INNER PANEL Long Wheelbase / RH / From: MG575835	-	1	Enquire
<020C48	LR155415	COVER - DOOR INNER PANEL	LR155415 COVER - DOOR INNER PANEL Long Wheelbase / LH / From: MG575835	-	1	Enquire
<020C48	LR138243	COVER - DOOR INNER PANEL	LR138243 COVER - DOOR INNER PANEL Standard Wheelbase / RH / From: MG575835	-	1	Enquire
<020C48	LR138242	COVER - DOOR INNER PANEL	LR138242 COVER - DOOR INNER PANEL Standard Wheelbase / LH / From: MG575835	-	1	Enquire
<111C92	LR117957	COVER - DOOR SWITCH	LR117957 COVER - DOOR SWITCH Clear Exit Detection, Door Lock/Unlock Front & Rear, Standard Wheelbase / RH	-	1	Enquire
<111C92	LR117986	COVER - DOOR SWITCH	LR117986 COVER - DOOR SWITCH Clear Exit Detection, Door Lock/Unlock Front & Rear, Standard Wheelbase / LH	-	1	Enquire
<111C92	LR117953	COVER - DOOR SWITCH	LR117953 COVER - DOOR SWITCH Door Lock/Unlock Front, Less Rear Exit Detection / RH / To: MG575834	-	1	Enquire
<111C92	LR117952	COVER - DOOR SWITCH	LR117952 COVER - DOOR SWITCH Clear Exit Detection, Door Lock/Unlock Front / RH / To: MG575834	-	1	Enquire
<111C92	LR117954	COVER - DOOR SWITCH	LR117954 COVER - DOOR SWITCH Door Lock/Unlock Front, Less Rear Exit Detection / LH / To: MG575834	-	1	Enquire
<111C92	LR117955	COVER - DOOR SWITCH	LR117955 COVER - DOOR SWITCH Clear Exit Detection, Door Lock/Unlock Front / LH / To: MG575834	-	1	Enquire
<111C92	LR117956	COVER - DOOR SWITCH	LR117956 COVER - DOOR SWITCH Door Lock/Unlock Front & Rear, Less Rear Exit Detection, Standard Wheelbase / RH	-	1	Enquire
<111C92	LR117958	COVER - DOOR SWITCH	LR117958 COVER - DOOR SWITCH Door Lock/Unlock Front & Rear, Less Rear Exit Detection, Standard Wheelbase / LH	-	1	Enquire
<111C92	LR155417	COVER - DOOR SWITCH	LR155417 COVER - DOOR SWITCH Clear Exit Detection, Door Lock/Unlock Front, Long Wheelbase / RH / From: MG575835	-	1	Enquire
<111C92	LR155422	COVER - DOOR SWITCH	LR155422 COVER - DOOR SWITCH Door Lock/Unlock Front, Less Rear Exit Detection, Long Wheelbase / RH / From: MG575835	-	1	Enquire
<111C92	LR155423	COVER - DOOR SWITCH	LR155423 COVER - DOOR SWITCH Clear Exit Detection, Door Lock/Unlock Front, Long Wheelbase / LH / From: MG575835	-	1	Enquire
<111C92	LR155425	COVER - DOOR SWITCH	LR155425 COVER - DOOR SWITCH Door Lock/Unlock Front, Less Rear Exit Detection, Long Wheelbase / LH / From: MG575835	-	1	Enquire
<111C92	LR135000	COVER - DOOR SWITCH	LR135000 COVER - DOOR SWITCH Door Lock/Unlock Front, Less Rear Exit Detection, Standard Wheelbase / RH / From: MG575835	-	1	Enquire
<111C92	LR135008	COVER - DOOR SWITCH	LR135008 COVER - DOOR SWITCH Door Lock/Unlock Front, Less Rear Exit Detection, Standard Wheelbase / LH / From: MG575835	-	1	Enquire
<111C92	LR135012	COVER - DOOR SWITCH	LR135012 COVER - DOOR SWITCH Clear Exit Detection, Door Lock/Unlock Front, Standard Wheelbase / LH / From: MG575835	-	1	Enquire
<111C92	LR135004	COVER - DOOR SWITCH	LR135004 COVER - DOOR SWITCH Clear Exit Detection, Door Lock/Unlock Front, Standard Wheelbase / RH / From: MG575835	-	1	Enquire
<237B46	LR114580	FINISHER - DOOR	LR114580 FINISHER - DOOR RH	-	1	Enquire
<237B46	LR114581	FINISHER - DOOR	LR114581 FINISHER - DOOR LH	-	1	Enquire
<266A64	LR115615	HANDLE - DOOR - INNER	LR115615 HANDLE - DOOR - INNER RH	-	1	Enquire
<266A64	LR115616	HANDLE - DOOR - INNER	LR115616 HANDLE - DOOR - INNER LH	-	1	Enquire
<62768	LR114656	COVER - DOOR INSIDE HANDLE	LR114656 COVER - DOOR INSIDE HANDLE LH	-	1	Enquire
<62768	LR128670	COVER - DOOR INSIDE HANDLE	LR128670 COVER - DOOR INSIDE HANDLE RH	-	1	Enquire
HB1	LR123630	BOLT	LR123630 BOLT Fixes Pull Handle, M6 X 20MM, Torx	-	4	Enquire
HC1	LR091469	CLIP - DOOR INNER PANEL	LR091469 CLIP - DOOR INNER PANEL Standard Wheelbase / 0.7-1.2+4.5X26+2.5, Door Waist Rail Clip	-	10	Enquire
HC1	LR091469	CLIP - DOOR INNER PANEL	LR091469 CLIP - DOOR INNER PANEL Long Wheelbase / 0.7-1.2+4.5X26+2.5, Door Waist Rail Clip / From: MG575835	-	12	Enquire
HC2	LR090382	CLIP - LANTERN	LR090382 CLIP - LANTERN Lantern Clip - Door Casing To BIW	-	-	Enquire
HN1	LR123718	NUT	LR123718 NUT Fixes Pull Handle, Nut "U" Spring	-	4	Enquire
HN2	LR039636	NUT - EXPANSION	LR039636 NUT - EXPANSION Long Wheelbase / Expansion 4.2 X 21.5 Push In / From: MG575835	-	4	Enquire
HS1	LR007312	SCREW	LR007312 SCREW Long Wheelbase / 4.2 X 19MM / From: MG575835	-	4	Enquire
