Instrument Panel (Internal Components) (Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel]

View All

Land Rover Range Rover Evoque (2019+) [2.0 Turbo Diesel] - Instrument Panel (Internal Components) (Halewood (UK))

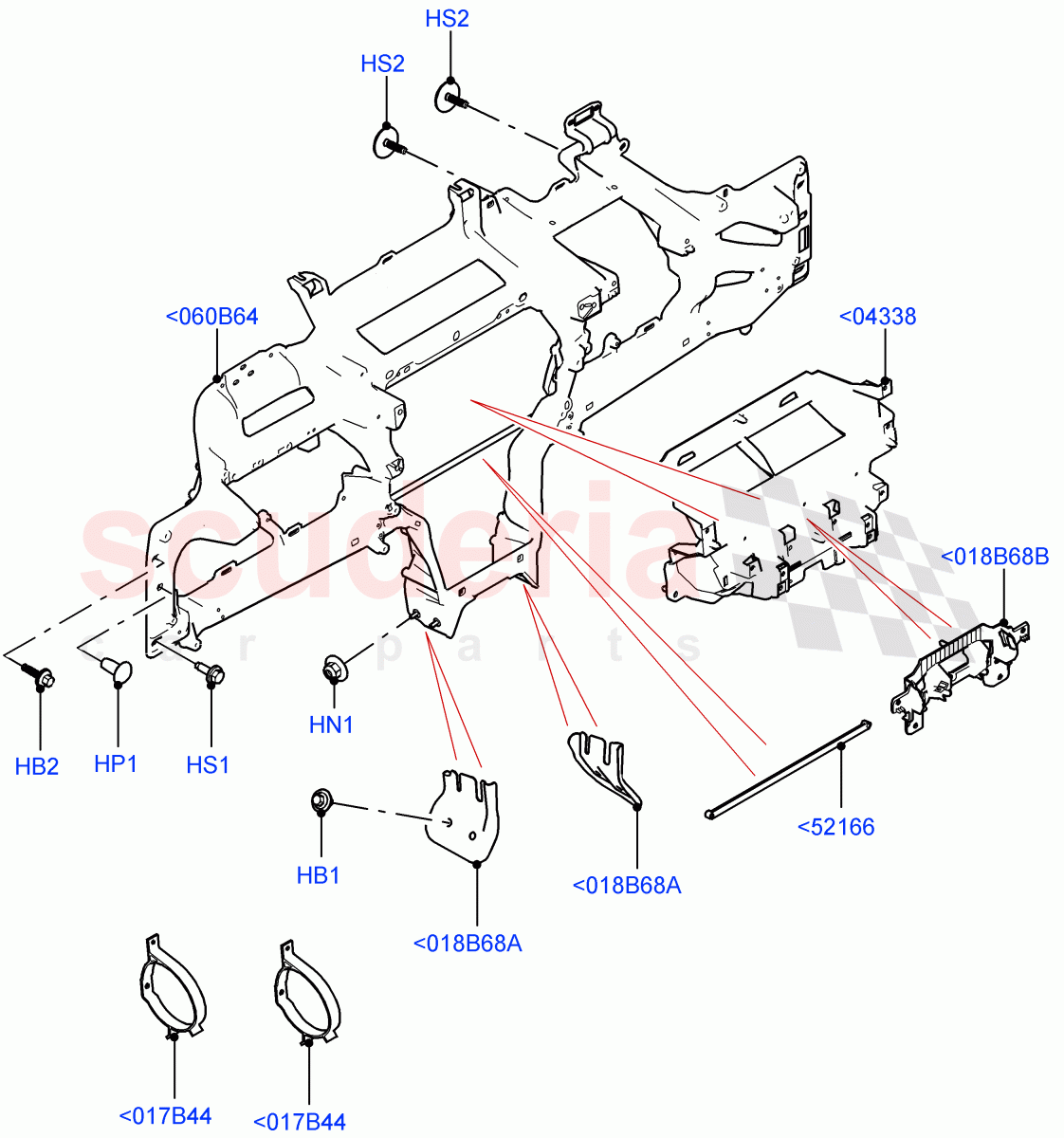

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR006032	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR114228	BOLT AND WASHER - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH500420	NUT AND WASHER - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032351	PLUG - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500980	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR030395	SCREW AND WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR115136	MOULDING - INSTRUMENT PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117784	BRACKET - INSTRUMENT PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117787	BRACKET - ENERGY ABSORBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117767	REINFORCEMENT - INSTRUMENT PANEL	Enquire	To Order
	LR117768	REINFORCEMENT - INSTRUMENT PANEL	Enquire	To Order
	LR156081	REINFORCEMENT - INSTRUMENT PANEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR117770	BRACKET - INSTRUMENT PANEL	Enquire	To Order
	LR117771	BRACKET - INSTRUMENT PANEL	Enquire	To Order
	LR125869	BRACKET - INSTRUMENT PANEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR115173	BRACKET - INSTRUMENT PANEL	Enquire	To Order
	LR129280	BRACKET - INSTRUMENT PANEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
<017B44	LR117787	BRACKET - ENERGY ABSORBER	LR117787 BRACKET - ENERGY ABSORBER With Head Impact Crash Criteria	-	2	Enquire
<018B68A	LR117770	BRACKET - INSTRUMENT PANEL	LR117770 BRACKET - INSTRUMENT PANEL RH / To: LH007257	-	1	Enquire
<018B68A	LR117771	BRACKET - INSTRUMENT PANEL	LR117771 BRACKET - INSTRUMENT PANEL LH / To: LH007257	-	1	Enquire
<018B68A	LR125869	BRACKET - INSTRUMENT PANEL	LR125869 BRACKET - INSTRUMENT PANEL RH / From: LH007258	-	1	Enquire
<018B68A	LR125870	BRACKET - INSTRUMENT PANEL	LR125870 BRACKET - INSTRUMENT PANEL LH / From: LH007258	-	1	Enquire
<018B68B	LR115173	BRACKET - INSTRUMENT PANEL	LR115173 BRACKET - INSTRUMENT PANEL To: LH004348	-	1	Enquire
<018B68B	LR129280	BRACKET - INSTRUMENT PANEL	LR129280 BRACKET - INSTRUMENT PANEL From: LH004349	-	1	Enquire
<060B64	LR117767	REINFORCEMENT - INSTRUMENT PANEL	LR117767 REINFORCEMENT - INSTRUMENT PANEL LHD	-	1	Enquire
<060B64	LR117768	REINFORCEMENT - INSTRUMENT PANEL	LR117768 REINFORCEMENT - INSTRUMENT PANEL RHD / To: MH139051	-	1	Enquire
<060B64	LR156081	REINFORCEMENT - INSTRUMENT PANEL	LR156081 REINFORCEMENT - INSTRUMENT PANEL RHD / From: MH139052	-	1	Enquire
<04338	LR115136	MOULDING - INSTRUMENT PANEL	LR115136 MOULDING - INSTRUMENT PANEL	-	1	Enquire
<52166	LR117784	BRACKET - INSTRUMENT PANEL	LR117784 BRACKET - INSTRUMENT PANEL	-	1	Enquire
HB1	LR006032	BOLT AND WASHER - HEX.HEAD	LR006032 BOLT AND WASHER - HEX.HEAD Bolt And Washer, M8 X 17MM	-	4	Enquire
HB2	LR114228	BOLT AND WASHER - HEX.HEAD	LR114228 BOLT AND WASHER - HEX.HEAD M8 x 27MM	-	2	Enquire
HN1	RYH500420	NUT AND WASHER - HEX.	RYH500420 NUT AND WASHER - HEX. Hexagonal Head, M6, Nut And Washer	-	4	Enquire
HP1	LR032351	PLUG - RUBBER	LR032351 PLUG - RUBBER 13 X 3.5, Rubber	-	2	Enquire
HS1	RYG500980	SCREW AND WASHER	RYG500980 SCREW AND WASHER M8 x 24MM	-	2	Enquire
HS2	LR030395	SCREW AND WASHER	LR030395 SCREW AND WASHER M8 x 28MM	-	2	Enquire
