Turbocharger (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Turbocharger (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)

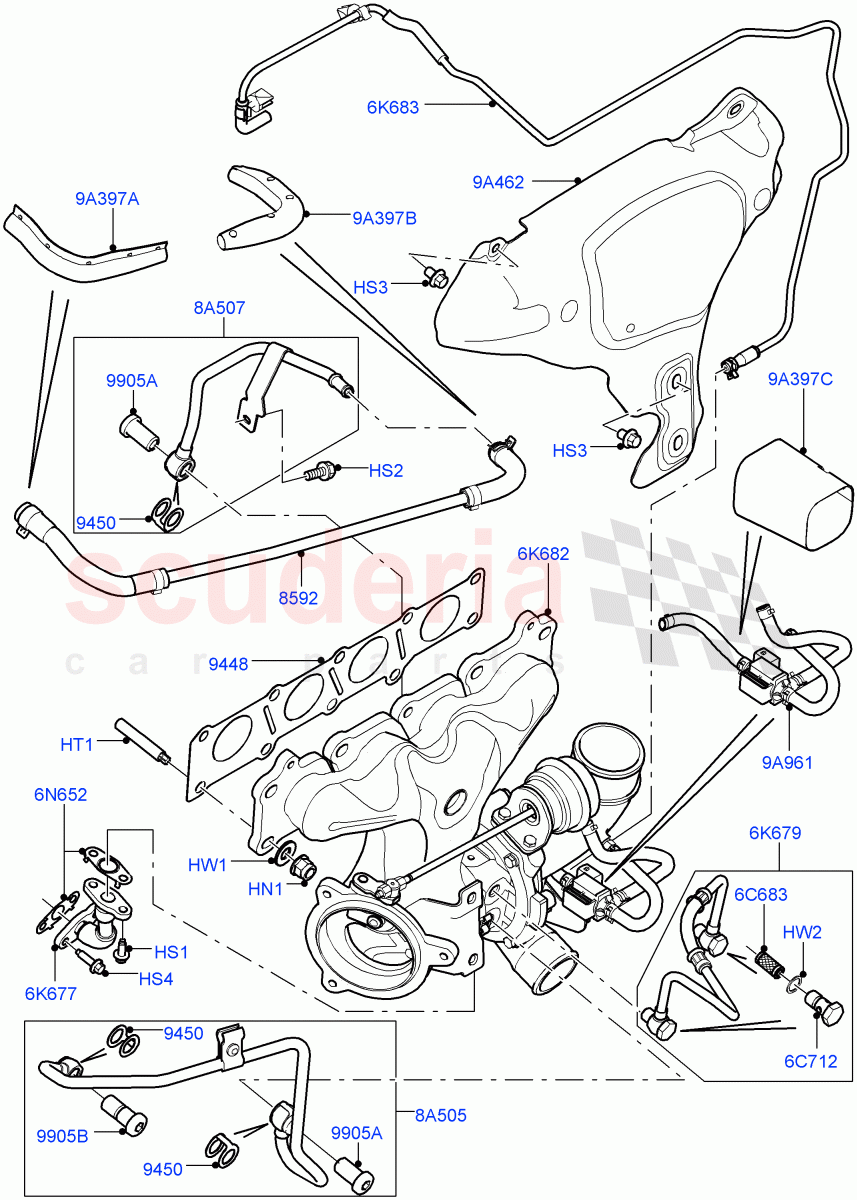

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR025680	M10 FLANGED HEX NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031895	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500900	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108126	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4558527	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025392	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028235	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR046643	WASHER - COPPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045337	TUBE - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025852	GASKET - EXHAUST MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025565	GASKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025523	FILTER - TURBOCHARGER OIL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025517	BOLT	Enquire	To Order
	LR105291	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025518	HOSE - TURBOCHARGER OIL RETURN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028821	PIPE - OIL FEED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR066505	TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR061537	HOSE - AIR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032083	GASKET - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024986	HOSE - TURBOCHAGER COOLING INLET	Enquire	To Order
	LR087725	HOSE - TURBOCHAGER COOLING INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041198	CONNECTION - WATER OUTLET	Enquire	To Order
	LR086649	CONNECTION - WATER OUTLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR041432	BOLT - BANJO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR045933	BOLT - BANJO	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025679	SHIELD - EXHAUST MANIFOLD HEAT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR048511	VALVE - WASTEGATE - TURBOCHARGER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032630	SLEEVE - PROTECTIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032907	HEAT SHIELD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HN1	LR025680	M10 FLANGED HEX NUT	LR025680 M10 FLANGED HEX NUT M10 / From: EG000001	-	10	Enquire
HS1	LR031895	BOLT	LR031895 BOLT M6 X 14MM, Tube - Oil Return, Turbocharger / From: EG000001	-	2	Enquire
HS2	RYP500900	SCREW	RYP500900 SCREW M6 x 12MM, Oil Feed Pipe, Torx, Turbocharger / From: EG000001	-	1	Enquire
HS3	FS108126	SCREW	FS108126 SCREW Heatshield Fixing, M8 x 12MM / From: EG000001	-	4	Enquire
HS4	4558527	SCREW	4558527 SCREW M6 X 20MM, To Cylinder Block, Tube - Oil Return / From: EG000001	-	2	Enquire
HT1	LR025392	STUD	LR025392 STUD M10 x 22MM/M10 x 32MM, Manifold To Cylinder Head / From: EG000001	-	10	Enquire
HW1	LR028235	WASHER	LR028235 WASHER 10.3 X 20.8 X 4 / From: EG000001	-	9	Enquire
HW2	LR046643	WASHER - COPPER	LR046643 WASHER - COPPER M12 / From: EG000001	-	4	Enquire
6C683	LR025523	FILTER - TURBOCHARGER OIL FEED	LR025523 FILTER - TURBOCHARGER OIL FEED Filter - Turbocharger Oil Feed Hose / From: EG000001	-	1	Enquire
6C712	LR025517	BOLT	LR025517 BOLT Filter - Turbocharger Oil Feed Hose / From: EG000001 / To: HG161787	-	1	Enquire
6C712	LR105291	BOLT	LR105291 BOLT Filter - Turbocharger Oil Feed Hose / From: HG161788	-	1	Enquire
6K677	LR025518	HOSE - TURBOCHARGER OIL RETURN	LR025518 HOSE - TURBOCHARGER OIL RETURN From: EG000001	-	1	Enquire
6K679	LR028821	PIPE - OIL FEED	LR028821 PIPE - OIL FEED From: EG000001	-	1	Enquire
6K682	LR066505	TURBOCHARGER	LR066505 TURBOCHARGER From: EG000001	-	1	Enquire
6K683	LR061537	HOSE - AIR	LR061537 HOSE - AIR From: EG000001	-	1	Enquire
6N652	LR032083	GASKET - TURBOCHARGER	LR032083 GASKET - TURBOCHARGER From: EG000001	-	2	Enquire
8A505	LR024986	HOSE - TURBOCHAGER COOLING INLET	LR024986 HOSE - TURBOCHAGER COOLING INLET Hose Water Inlet To Turbocharger / From: EG000001 / To: GG146040	-	1	Enquire
8A505	LR087725	HOSE - TURBOCHAGER COOLING INLET	LR087725 HOSE - TURBOCHAGER COOLING INLET Hose Water Inlet To Turbocharger / From: GG146041	-	1	Enquire
8A507	LR041198	CONNECTION - WATER OUTLET	LR041198 CONNECTION - WATER OUTLET Hose Water Outlet From Turbocharger / From: EG000001 / To: GG146040	-	1	Enquire
8A507	LR086649	CONNECTION - WATER OUTLET	LR086649 CONNECTION - WATER OUTLET Hose Water Outlet From Turbocharger / From: GG146041	-	1	Enquire
9A397B	LR032630	SLEEVE - PROTECTIVE	LR032630 SLEEVE - PROTECTIVE Turbo Coolant Pipe / From: EG000001	-	1	Enquire
9A397C	LR032907	HEAT SHIELD	LR032907 HEAT SHIELD Waste Gate Control Valve / From: EG000001	-	1	Enquire
9A462	LR025679	SHIELD - EXHAUST MANIFOLD HEAT	LR025679 SHIELD - EXHAUST MANIFOLD HEAT Exhaust Manifold / From: EG000001	-	1	Enquire
9A961	LR048511	VALVE - WASTEGATE - TURBOCHARGER	LR048511 VALVE - WASTEGATE - TURBOCHARGER From: EG000001	-	1	Enquire
8592	LR045337	TUBE - WATER OUTLET	LR045337 TUBE - WATER OUTLET From: EG000001	-	1	Enquire
9448	LR025852	GASKET - EXHAUST MANIFOLD	LR025852 GASKET - EXHAUST MANIFOLD Manifold To Cylinder Head / From: EG000001	-	1	Enquire
9450	LR025565	GASKET - TURBOCHARGER	LR025565 GASKET - TURBOCHARGER Gasket - Banjo Bolt Water Inlet To Turbocharger / From: EG000001	-	3	Enquire
9905A	LR041432	BOLT - BANJO	LR041432 BOLT - BANJO M14 / From: EG000001	-	2	Enquire
9905B	LR045933	BOLT - BANJO	LR045933 BOLT - BANJO M14 / From: EG000001	-	1	Enquire
