Fuel Injection Pump-Engine Mounted (From Engine Serial Number - 071111153004) (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Fuel Injection Pump-Engine Mounted (From Engine Serial Number - 071111153004) (2.0L 16V TIVCT T/C...

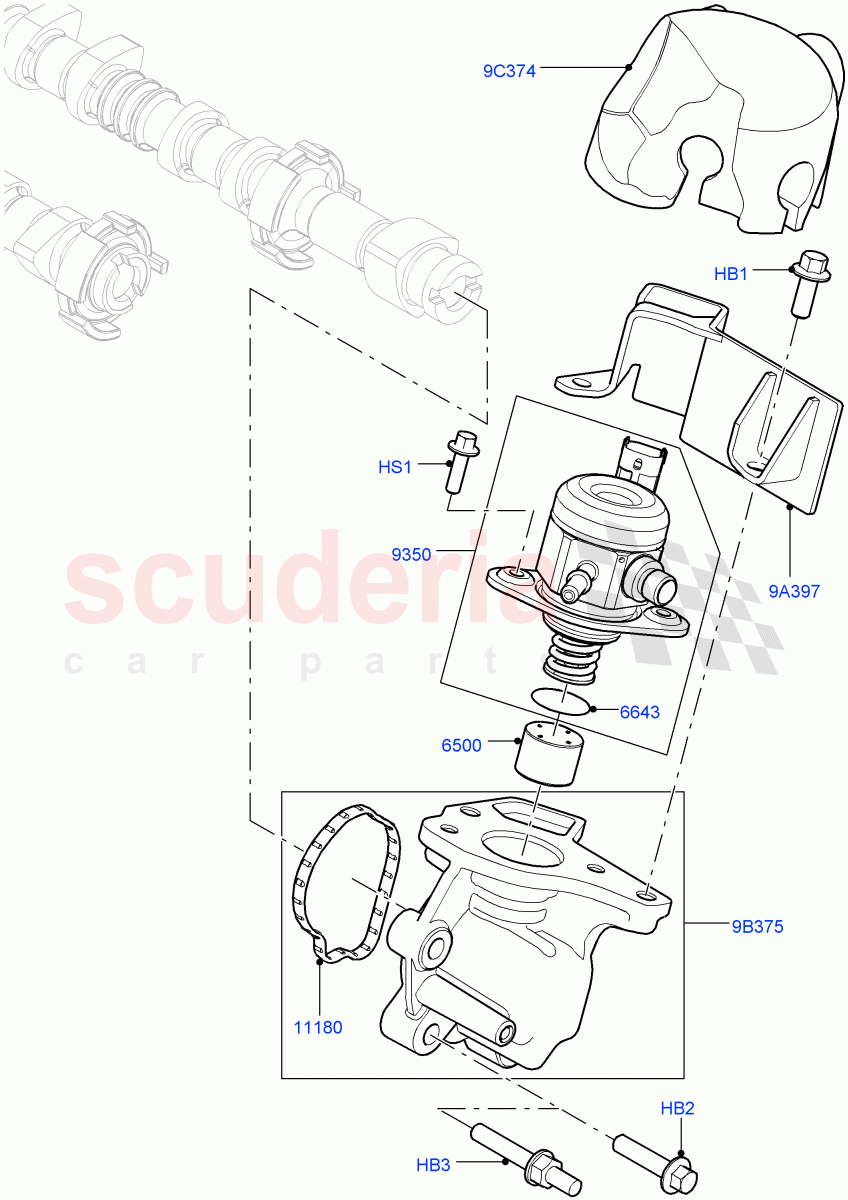

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR030629	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4469260	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057591	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025598	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR011208	TAPPET - FUEL PUMP	Enquire	To Order
	LR038311	TAPPET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR107899	SEAL - FUEL INJECTION PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025599	PUMP - FUEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR034323	SEAL - FUEL PUMP SUPPORT HOUSING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025600	SHIELD - FUEL PUMP	Enquire	To Order
	LR040992	SHIELD - FUEL PUMP	Enquire	To Order
	LR056565	SHIELD - FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR035936	COVER - FUEL PUMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025597	ACOUSTIC COVER - FUEL PUMP	Enquire	To Order
	LR060307	ACOUSTIC COVER - FUEL PUMP	Enquire	To Order
	LR076513	ACOUSTIC COVER - FUEL PUMP	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR030629	BOLT	LR030629 BOLT M8 X 20MM	-	2	Enquire
HB2	4469260	BOLT	4469260 BOLT M8 X 35MM / To: DH999999	-	4	Enquire
HB3	LR057591	BOLT	LR057591 BOLT M8 x 40 + M8 x 16 / From: EH000001	-	4	Enquire
HS1	LR025598	BOLT	LR025598 BOLT M6 X 20MM	-	2	Enquire
9A397	LR025600	SHIELD - FUEL PUMP	LR025600 SHIELD - FUEL PUMP To: CH999999	-	1	Enquire
9A397	LR040992	SHIELD - FUEL PUMP	LR040992 SHIELD - FUEL PUMP From: DH000001 / To: EH859637	-	1	Enquire
9A397	LR056565	SHIELD - FUEL PUMP	LR056565 SHIELD - FUEL PUMP From: EH859638	-	1	Enquire
9B375	LR035936	COVER - FUEL PUMP	LR035936 COVER - FUEL PUMP For Vehicles With Engine Serial Number Later Than 071111153004 - DD/MM/YY/Hrs/Min/Sec	-	1	Enquire
9C374	LR025597	ACOUSTIC COVER - FUEL PUMP	LR025597 ACOUSTIC COVER - FUEL PUMP To: DH999999	-	1	Enquire
9C374	LR060307	ACOUSTIC COVER - FUEL PUMP	LR060307 ACOUSTIC COVER - FUEL PUMP From: EH000001 / To: EH856720	-	1	Enquire
9C374	LR076513	ACOUSTIC COVER - FUEL PUMP	LR076513 ACOUSTIC COVER - FUEL PUMP From: EH856721	-	1	Enquire
6500	LR011208	TAPPET - FUEL PUMP	LR011208 TAPPET - FUEL PUMP For Fuel Pump / To: CH999999	-	1	Enquire
6500	LR038311	TAPPET	LR038311 TAPPET For Fuel Pump / From: DH000001	-	1	Enquire
6643	LR107899	SEAL - FUEL INJECTION PUMP	LR107899 SEAL - FUEL INJECTION PUMP For Fuel Pump	-	1	Enquire
9350	LR025599	PUMP - FUEL	LR025599 PUMP - FUEL	-	1	Enquire
11180	LR034323	SEAL - FUEL PUMP SUPPORT HOUSING	LR034323 SEAL - FUEL PUMP SUPPORT HOUSING For Vehicles With Engine Serial Number Later Than 071111153004 - DD/MM/YY/Hrs/Min/Sec, Fuel Pump Support Housing To Cylinder Head, Seal - Fuel Pump Support Housing	-	1	Enquire
