Fuel Injectors And Pipes (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Fuel Injectors And Pipes (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK))

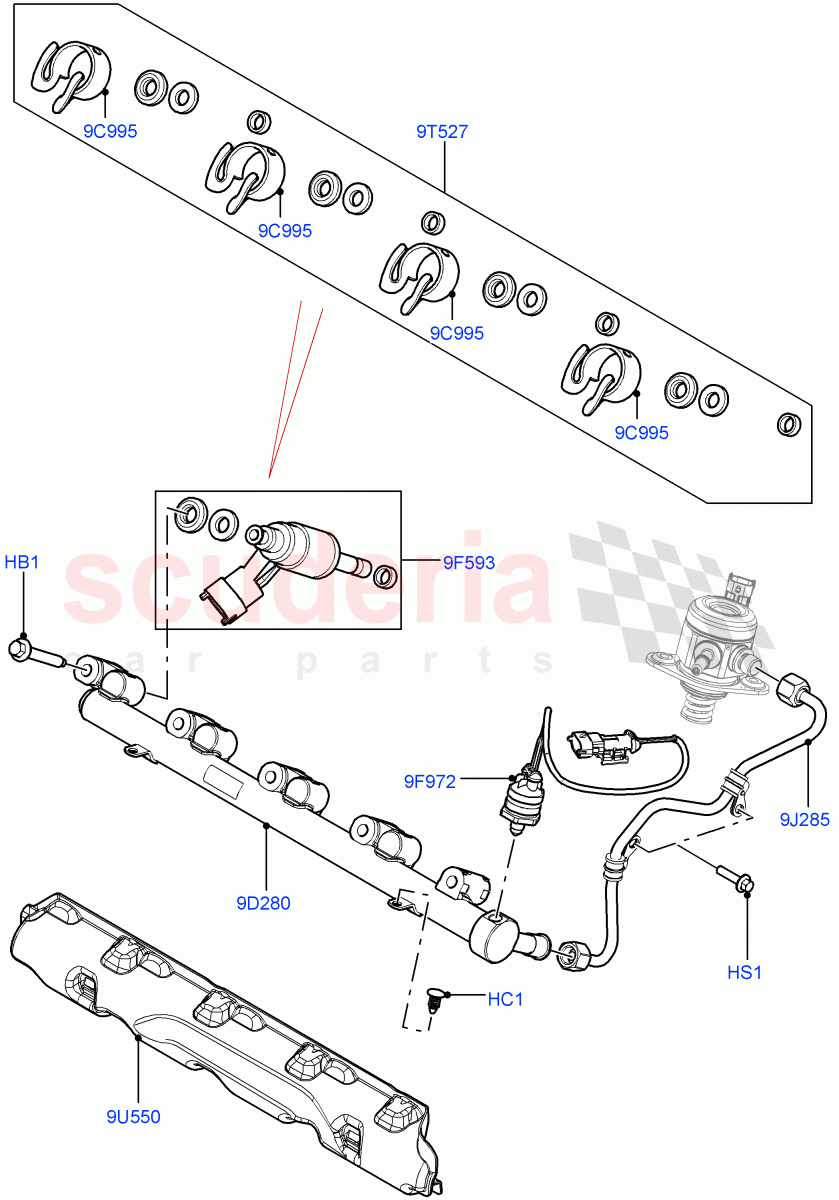

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR003777	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032857	PIN - FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4378449	SCREW	Enquire	To Order
	LR068809	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025821	CLIP - FUEL INJECTOR MOUNTING	Enquire	To Order
	LR010767	RETAINER - INJECTION VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025853	MANIFOLD - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024998	INJECTOR - FUEL	Enquire	To Order
	LR072564	INJECTOR - FUEL	Enquire	To Order
	LR082008	INJECTOR - FUEL	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR024969	SENSOR - FUEL INJECTOR PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025580	TUBE - FUEL FEED	Enquire	To Order
	LR101734	TUBE	Enquire	To Order
	LR101734	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025820	KIT - INJECTOR REFIT	Enquire	To Order
	LR033977	KIT - INJECTOR REFIT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025819	COVER - INSULATOR	Enquire	To Order
	LR033992	COVER - INSULATOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR003777	BOLT	LR003777 BOLT M8 x 50MM	-	5	Enquire
HC1	LR032857	PIN - FIXING	LR032857 PIN - FIXING To Fuel Rail	-	2	Enquire
HS1	4378449	SCREW	4378449 SCREW M6 x 25MM / To: FH999999	-	2	Enquire
HS1	LR068809	SCREW	LR068809 SCREW M6 x 25MM / From: GH000001	-	2	Enquire
9C995	LR025821	CLIP - FUEL INJECTOR MOUNTING	LR025821 CLIP - FUEL INJECTOR MOUNTING To: GH107238	-	4	Enquire
9C995	LR010767	RETAINER - INJECTION VALVE	LR010767 RETAINER - INJECTION VALVE From: GH107239	-	4	Enquire
9D280	LR025853	MANIFOLD - FUEL SUPPLY	LR025853 MANIFOLD - FUEL SUPPLY	-	1	Enquire
9F593	LR024998	INJECTOR - FUEL	LR024998 INJECTOR - FUEL New Part-Please Check For Reman Version / To: FH999999	-	4	Enquire
9F593	LR072564	INJECTOR - FUEL	LR072564 INJECTOR - FUEL From: GH000001 / To: GH107238	-	4	Enquire
9F593	LR082008	INJECTOR - FUEL	LR082008 INJECTOR - FUEL From: GH107239	-	4	Enquire
9F593	LR030859	INJECTOR - FUEL	LR030859 INJECTOR - FUEL For UK and ROW markets except Russia, China, Brazil, Remanufactured Part / To: FH999999	-	4	Enquire
9F972	LR024969	SENSOR - FUEL INJECTOR PRESSURE	LR024969 SENSOR - FUEL INJECTOR PRESSURE	-	1	Enquire
9J285	LR025580	TUBE - FUEL FEED	LR025580 TUBE - FUEL FEED Fuel Supply / To: CH602883	-	1	Enquire
9J285	LR101734	TUBE	LR101734 TUBE Fuel Supply / From: CH602884 / To: FH999999	-	1	Enquire
9J285	LR101734	TUBE	LR101734 TUBE Fuel Supply / From: GH000001	-	1	Enquire
9T527	LR025820	KIT - INJECTOR REFIT	LR025820 KIT - INJECTOR REFIT To: CH654085	-	1	Enquire
9T527	LR033977	KIT - INJECTOR REFIT	LR033977 KIT - INJECTOR REFIT From: CH654086	-	1	Enquire
9U550	LR025819	COVER - INSULATOR	LR025819 COVER - INSULATOR To: CH631089	-	1	Enquire
9U550	LR033992	COVER - INSULATOR	LR033992 COVER - INSULATOR From: CH631090	-	1	Enquire
