Name: Fuel Injectors And Pipes (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK)) ((V) FROMEH000001)
Rating: 4.2 (1 reviews)

Fuel Injectors And Pipes (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK)) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Fuel Injectors And Pipes (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK)) ((V) FROMEH000001)

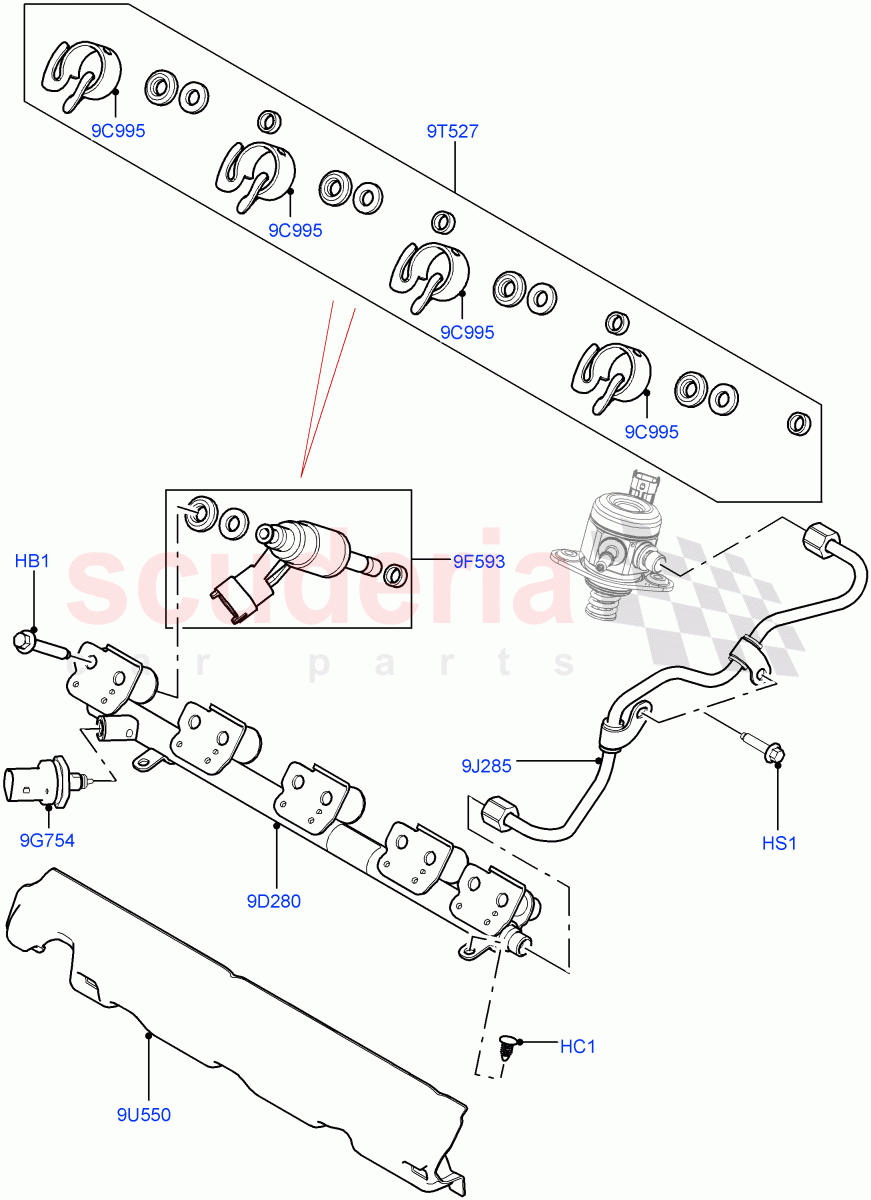

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR003777	BOLT	$1.99	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032857	PIN - FIXING	$4.46	To Order

Photo	Part No	Description	Price (each)	Stock
	4378449	SCREW	$2.11	IN STOCK
	LR068809	SCREW	$3.08	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025821	CLIP - FUEL INJECTOR MOUNTING	$5.85	To Order
	LR010767	RETAINER - INJECTION VALVE	$5.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR054874	MANIFOLD - FUEL SUPPLY	$406.82	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024998	INJECTOR - FUEL	$261.02	To Order
	LR072564	INJECTOR - FUEL	$336.41	To Order
	LR082008	INJECTOR - FUEL	$333.35	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR049648	SENSOR - FUEL PRESSURE/TEMPERATURE	$141.98	To Order
	LR065516	SENSOR - FUEL PRESSURE/TEMPERATURE	$153.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049649	TUBE - FUEL FEED	$93.57	To Order
	LR101733	TUBE - FUEL FEED	$116.68	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033977	KIT - INJECTOR REFIT	$150.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049654	COVER - INSULATOR	$43.72	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR003777	BOLT	LR003777 BOLT M8 x 50MM / From: EH000001	$1.99	5
HC1	LR032857	PIN - FIXING	LR032857 PIN - FIXING To Fuel Rail / From: EH000001	$4.46	2
HS1	4378449	SCREW IN STOCK	4378449 SCREW M6 x 25MM / From: EH000001 / To: FH999999 IN STOCK	$2.11	2
HS1	LR068809	SCREW	LR068809 SCREW M6 x 25MM / From: GH000001	$3.08	2
9C995	LR025821	CLIP - FUEL INJECTOR MOUNTING	LR025821 CLIP - FUEL INJECTOR MOUNTING From: EH000001 / To: FH999999	$5.85	4
9C995	LR010767	RETAINER - INJECTION VALVE	LR010767 RETAINER - INJECTION VALVE From: GH000001	$5.82	4
9D280	LR054874	MANIFOLD - FUEL SUPPLY	LR054874 MANIFOLD - FUEL SUPPLY From: EH000001	$406.82	1
9F593	LR024998	INJECTOR - FUEL	LR024998 INJECTOR - FUEL New Part-Please Check For Reman Version / From: EH000001 / To: FH999999	$261.02	4
9F593	LR072564	INJECTOR - FUEL	LR072564 INJECTOR - FUEL From: GH000001 / To: GH107238	$336.41	4
9F593	LR082008	INJECTOR - FUEL	LR082008 INJECTOR - FUEL From: GH107239	$333.35	4
9F593	LR030859	INJECTOR - FUEL	LR030859 INJECTOR - FUEL For UK and ROW markets except Russia, China, Brazil, Remanufactured Part / From: EH000001 / To: FH999999	$210.96	4
9G754	LR049648	SENSOR - FUEL PRESSURE/TEMPERATURE	LR049648 SENSOR - FUEL PRESSURE/TEMPERATURE From: EH000001 / To: EH856720	$141.98	1
9G754	LR065516	SENSOR - FUEL PRESSURE/TEMPERATURE	LR065516 SENSOR - FUEL PRESSURE/TEMPERATURE From: EH856721	$153.79	1
9J285	LR049649	TUBE - FUEL FEED	LR049649 TUBE - FUEL FEED Fuel Supply / From: EH000001 / To: HH236665	$93.57	1
9J285	LR101733	TUBE - FUEL FEED	LR101733 TUBE - FUEL FEED Fuel Supply / From: HH236666	$116.68	1
9T527	LR033977	KIT - INJECTOR REFIT	LR033977 KIT - INJECTOR REFIT From: EH000001	$150.21	1
9U550	LR049654	COVER - INSULATOR	LR049654 COVER - INSULATOR To Fuel Rail / From: EH000001	$43.72	1
