Fuel Injection Pump-Engine Mounted (2.0L 16V Tivct T/C 240Ps Petrol, Changsu (China)) ((V)...

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Find Your Part

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Fuel Injection Pump-Engine Mounted (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR030629 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR057591 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR067230 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR038311 TAPPET Enquire To Order
Photo Part No Description Price (each) Stock
LR025599 PUMP - FUEL Enquire To Order
Photo Part No Description Price (each) Stock
LR034323 SEAL - FUEL PUMP SUPPORT HOUSING Enquire To Order
Photo Part No Description Price (each) Stock
LR056565 SHIELD - FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR035936 COVER - FUEL PUMP Enquire To Order
Photo Part No Description Price (each) Stock
LR060307 ACOUSTIC COVER - FUEL PUMP Enquire To Order
View All

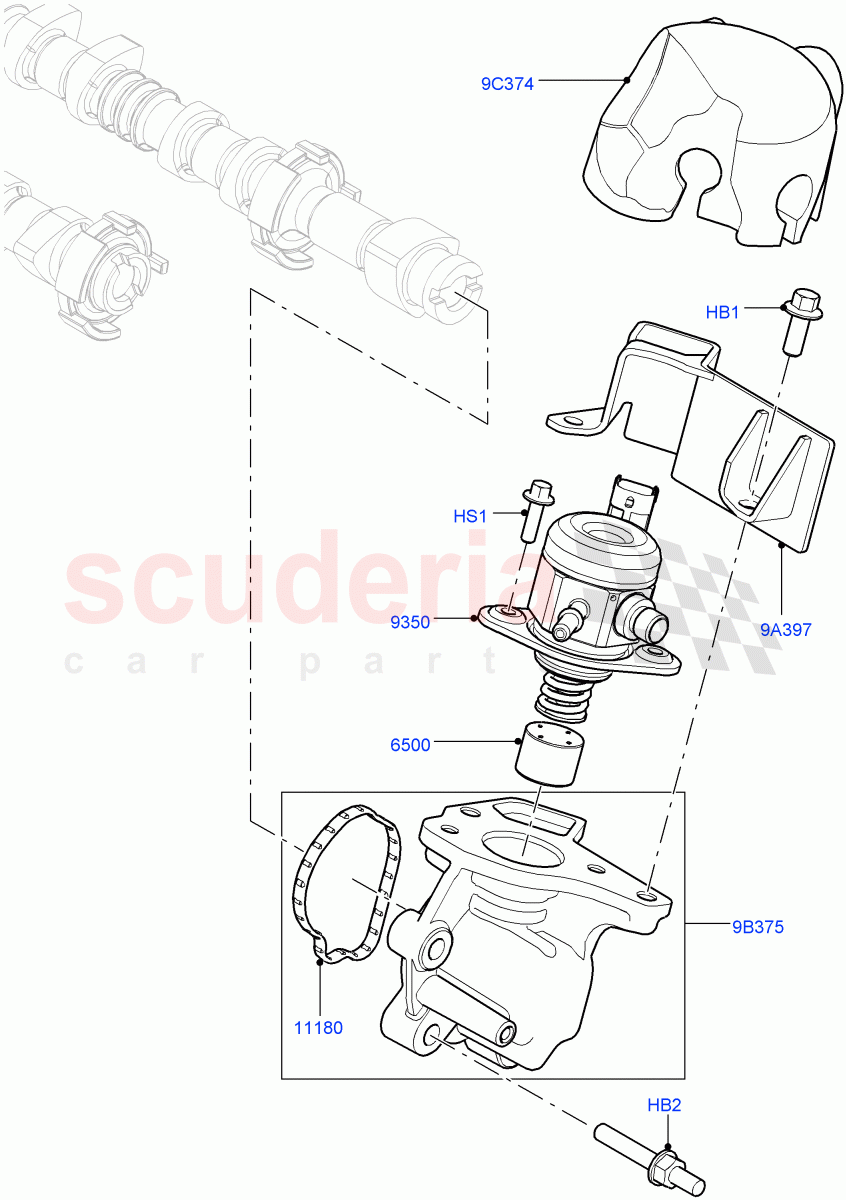

Fuel Injection Pump-Engine Mounted (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
HB1 LR030629
BOLT
M8 X 20MM / From: EG000001 		- 2 Enquire
HB2 LR057591
BOLT
M8 x 40 + M8 x 16 / From: EG000001 		- 4 Enquire
HS1 LR067230
BOLT
M6 x 22MM / From: EG000001 		- 2 Enquire
9A397 LR056565
SHIELD - FUEL PUMP
From: EG000001 		- 1 Enquire
9B375 LR035936
COVER - FUEL PUMP
From: EG000001 		- 1 Enquire
9C374 LR060307
ACOUSTIC COVER - FUEL PUMP
From: EG000001 		- 1 Enquire
6500 LR038311
TAPPET
For Fuel Pump / From: EG000001 		- 1 Enquire
9350 LR025599
PUMP - FUEL
From: EG000001 		- 1 Enquire
11180 LR034323
SEAL - FUEL PUMP SUPPORT HOUSING
Fuel Pump Support Housing To Cylinder Head, Seal - Fuel Pump Support Housing / From: EG000001 		- 1 Enquire
