Name: Inlet Manifold (2.0L 16V TIVCT T/C 240PS Petrol, Changsu (China)) ((V) FROMEG000001)
Rating: 5.0 (1 reviews)

View All

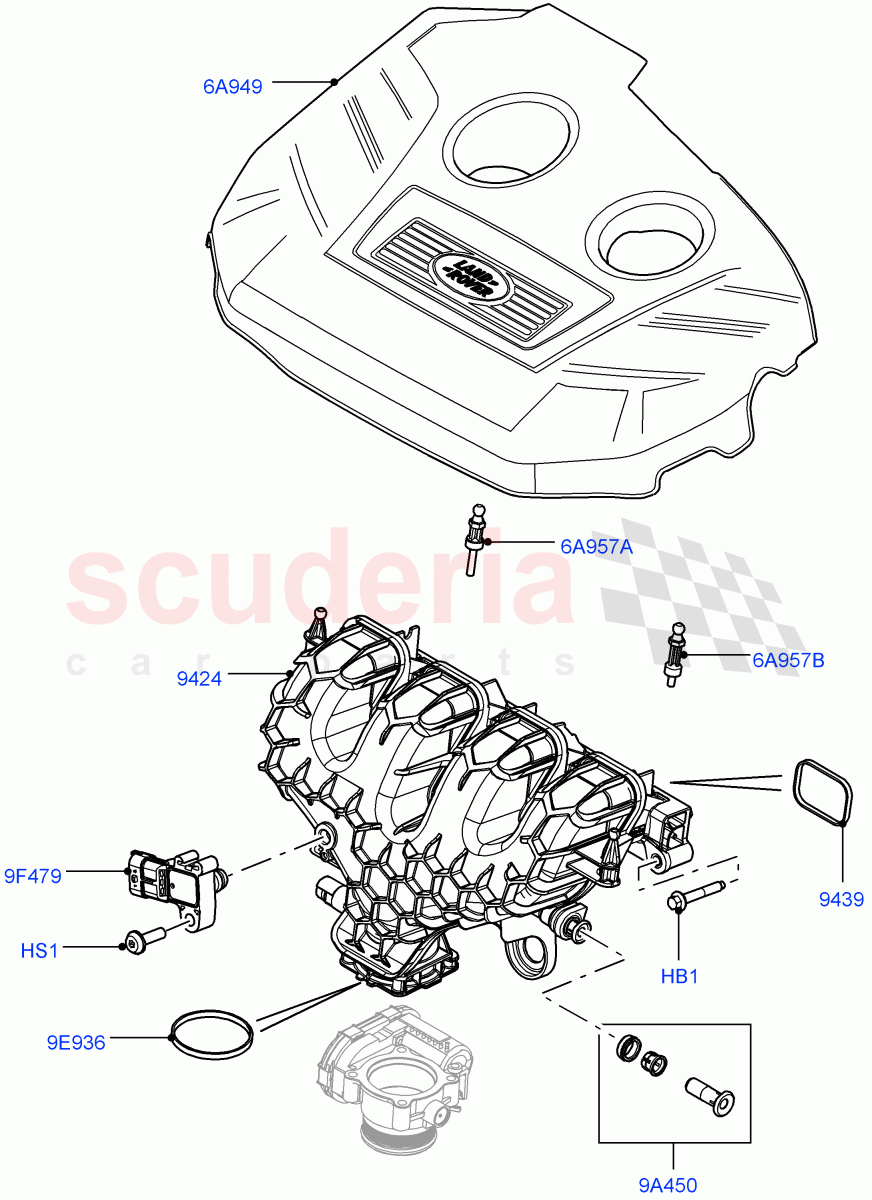

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4567977	BOLT	$3.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022159	SCREW	$3.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR055363	MANIFOLD - INLET	$776.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057234	GASKET - INTAKE MANIFOLD	$10.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR039520	COVER - ENGINE TOP	$139.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052965	KIT - INTAKE PLUG	$9.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024989	GASKET - THROTTLE	$16.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR075167	SENSOR - MANIFOLD ABSOLUTE PRESSURE	$133.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025918	STUD - ENGINE COVER	$6.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025916	STUD - ENGINE COVER	$6.69	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4567977	BOLT	4567977 BOLT M8 X 50, Manifold To Cylinder Head / From: EG000001	$3.74	5
HS1	LR022159	SCREW	LR022159 SCREW M6 x 25MM, MAP Sensor / From: EG000001	$3.03	1
6A949	LR039520	COVER - ENGINE TOP	LR039520 COVER - ENGINE TOP Engine, Land Rover Logo, Top / From: EG000001	$139.19	1
6A957A	LR025918	STUD - ENGINE COVER	LR025918 STUD - ENGINE COVER RH, Upper Engine Cover Support / From: EG000001	$6.51	1
6A957B	LR025916	STUD - ENGINE COVER	LR025916 STUD - ENGINE COVER LH, Upper Engine Cover Support / From: EG000001	$6.69	1
9A450	LR052965	KIT - INTAKE PLUG	LR052965 KIT - INTAKE PLUG From: EG000001	$9.02	1
9E936	LR024989	GASKET - THROTTLE	LR024989 GASKET - THROTTLE Throttle Body To Intake / From: EG000001	$16.46	1
9F479	LR075167	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR075167 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: EG000001	$133.93	1
9424	LR055363	MANIFOLD - INLET	LR055363 MANIFOLD - INLET From: EG000001	$776.19	1
9439	LR057234	GASKET - INTAKE MANIFOLD IN STOCK	LR057234 GASKET - INTAKE MANIFOLD Manifold To Cylinder Head / From: EG000001 IN STOCK	$10.55	4

Inlet Manifold (2.0L 16V Tivct T/C 240Ps Petrol, Changsu (China)) ((V) Fromeg000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]
