Name: Cylinder Head (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001)
Rating: 4.0 (1 reviews)

Cylinder Head (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Cylinder Head (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001)

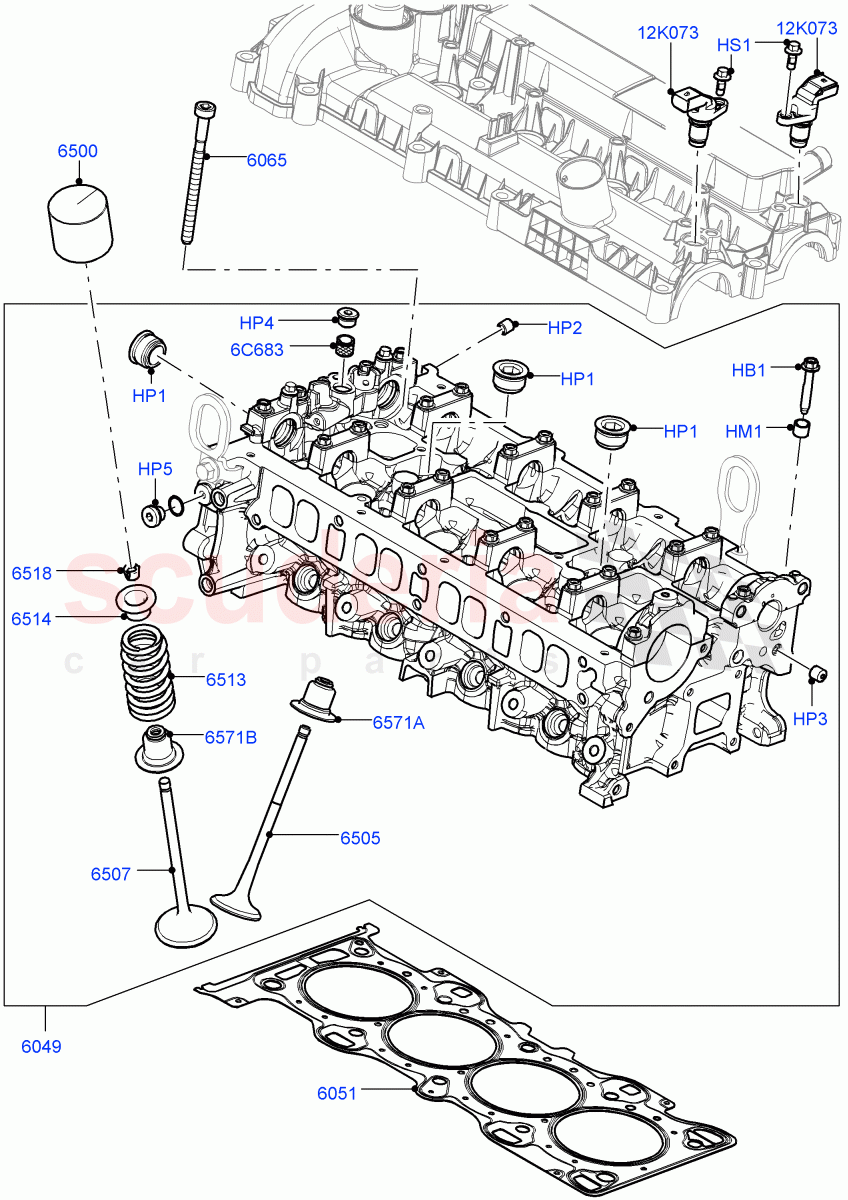

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR025391	BOLT	$7.16	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025383	BUSH - REDUCING	$1.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025389	PLUG - WATER JACKET	$8.55	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003600	RIVET - BLIND	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000498	PLUG - BLANKING	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025655	PLUG - THREADED	$2.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR068823	PLUG - CYLINDER HEAD	$8.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004349	BOLT	$3.97	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028243	CYLINDER HEAD	$3,297.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024975	GASKET - CYLINDER HEAD	$82.15	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025253	BOLT - HEX.HEAD	$8.04	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025265	TAPPET - VALVE	$10.40	To Order
	LR025266	TAPPET - VALVE	$16.91	To Order
	LR025267	TAPPET - VALVE	$17.06	To Order

...and 32 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR030370	VALVE - EXHAUST	$30.34	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025301	VALVE - INLET	$94.71	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031531	SPRING - VALVE	$6.77	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025012	RETAINER - VALVE SPRING	$1.67	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008878	COLLET - VALVE SPRING RETAINER	$1.30	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR025006	SEAL - VALVE STEM	$6.39	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025018	SEAL - VALVE STEM	$5.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025304	FILTER OIL - CAMSHAFT SPROCKET	$15.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057343	SENSOR - CAMSHAFT POSITION	$174.16	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	LR025391	BOLT	LR025391 BOLT M7 X 39MM / From: GT000001	$7.16	24
HM1	LR025383	BUSH - REDUCING	LR025383 BUSH - REDUCING Bush 7.4 X 9.05 X 7.75 / From: GT000001	$1.05	4
HP1	LR025389	PLUG - WATER JACKET	LR025389 PLUG - WATER JACKET M27 x 1.5MM / From: GT000001	$8.55	3
HP2	LR003600	RIVET - BLIND	LR003600 RIVET - BLIND Blanking,	$1.19	1
HP3	LR000498	PLUG - BLANKING	LR000498 PLUG - BLANKING Blanking,	$1.63	1
HP4	LR025655	PLUG - THREADED	LR025655 PLUG - THREADED VCT Filter / From: GT000001	$2.70	1
HP5	LR068823	PLUG - CYLINDER HEAD	LR068823 PLUG - CYLINDER HEAD M12 X 1.5MM / From: GT000001	$8.36	1
HS1	LR004349	BOLT	LR004349 BOLT M6 X 16MM / From: GT000001	$3.97	2
6C683	LR025304	FILTER OIL - CAMSHAFT SPROCKET	LR025304 FILTER OIL - CAMSHAFT SPROCKET VCT Filter / From: GT000001	$15.56	1
12K073	LR057343	SENSOR - CAMSHAFT POSITION	LR057343 SENSOR - CAMSHAFT POSITION From: GT000001	$174.16	2
6049	LR028243	CYLINDER HEAD	LR028243 CYLINDER HEAD From: GT000001	$3,297.03	1
6051	LR024975	GASKET - CYLINDER HEAD	LR024975 GASKET - CYLINDER HEAD From: GT000001	$82.15	1
6065	LR025253	BOLT - HEX.HEAD	LR025253 BOLT - HEX.HEAD From: GT000001	$8.04	10
6500	LR025265	TAPPET - VALVE	LR025265 TAPPET - VALVE 3MM / From: GT000001	$10.40	-
6500	LR025266	TAPPET - VALVE	LR025266 TAPPET - VALVE 3.025MM / From: GT000001	$16.91	-
6500	LR025267	TAPPET - VALVE	LR025267 TAPPET - VALVE 3.050MM / From: GT000001	$17.06	-
6500	LR025268	TAPPET - VALVE	LR025268 TAPPET - VALVE 3.075MM / From: GT000001	$9.66	-
6500	LR025269	TAPPET - VALVE	LR025269 TAPPET - VALVE 3.100MM / From: GT000001	$17.06	-
6500	LR025270	TAPPET - VALVE	LR025270 TAPPET - VALVE 3.122MM / From: GT000001	$17.06	-
6500	LR025271	TAPPET - VALVE	LR025271 TAPPET - VALVE 3.142MM / From: GT000001	$17.06	-
6500	LR025272	TAPPET - VALVE	LR025272 TAPPET - VALVE 3.162MM / From: GT000001	$16.69	-
6500	LR025273	TAPPET - VALVE	LR025273 TAPPET - VALVE 3.182MM / From: GT000001	$15.91	-
6500	LR025274	TAPPET - VALVE	LR025274 TAPPET - VALVE 3.202MM / From: GT000001	$16.24	-
6500	LR025275	TAPPET - VALVE	LR025275 TAPPET - VALVE 3.222MM / From: GT000001	$16.10	-
6500	LR025276	TAPPET - VALVE	LR025276 TAPPET - VALVE 3.242MM / From: GT000001	$15.53	-
6500	LR025277	TAPPET - VALVE	LR025277 TAPPET - VALVE 3.262MM / From: GT000001	$15.53	-
6500	LR025278	TAPPET - VALVE	LR025278 TAPPET - VALVE 3.282MM / From: GT000001	$17.06	-
6500	LR025279	TAPPET - VALVE	LR025279 TAPPET - VALVE 3.302MM / From: GT000001	$17.06	-
6500	LR025280	TAPPET - VALVE	LR025280 TAPPET - VALVE 3.322MM / From: GT000001	$16.24	-
6500	LR025281	TAPPET - VALVE	LR025281 TAPPET - VALVE 3.342MM / From: GT000001	$17.06	-
6500	LR025282	TAPPET - VALVE	LR025282 TAPPET - VALVE 3.362MM / From: GT000001	$16.30	-
6500	LR025283	TAPPET - VALVE	LR025283 TAPPET - VALVE 3.382MM / From: GT000001	$17.06	-
6500	LR025284	TAPPET - VALVE	LR025284 TAPPET - VALVE 3.402MM / From: GT000001	$17.06	-
6500	LR025285	TAPPET - VALVE	LR025285 TAPPET - VALVE 3.422MM / From: GT000001	$16.24	-
6500	LR025286	TAPPET - VALVE	LR025286 TAPPET - VALVE 3.442MM / From: GT000001	$14.17	-
6500	LR025287	TAPPET - VALVE	LR025287 TAPPET - VALVE 3.462MM / From: GT000001	$15.53	-
6500	LR025288	TAPPET - VALVE	LR025288 TAPPET - VALVE 3.482MM / From: GT000001	$14.44	-
6500	LR025289	TAPPET - VALVE	LR025289 TAPPET - VALVE 3.502MM / From: GT000001	$16.24	-
6500	LR025290	TAPPET - VALVE	LR025290 TAPPET - VALVE 3.522MM / From: GT000001	$15.48	-
6500	LR025291	TAPPET - VALVE	LR025291 TAPPET - VALVE 3.542MM / From: GT000001	$17.06	-
6500	LR025292	TAPPET - VALVE	LR025292 TAPPET - VALVE 3.562MM / From: GT000001	$16.24	-
6500	LR025293	TAPPET - VALVE	LR025293 TAPPET - VALVE 3.582MM / From: GT000001	$17.06	-
6500	LR025294	TAPPET - VALVE	LR025294 TAPPET - VALVE 3.602MM / From: GT000001	$17.06	-
6500	LR025295	TAPPET - VALVE	LR025295 TAPPET - VALVE 3.625MM / From: GT000001	$17.06	-
6500	LR025296	TAPPET - VALVE	LR025296 TAPPET - VALVE 3.65MM / From: GT000001	$17.06	-
6500	LR025297	TAPPET - VALVE	LR025297 TAPPET - VALVE 3.675MM / From: GT000001	$17.06	-
6500	LR025298	TAPPET - VALVE	LR025298 TAPPET - VALVE 3.70MM / From: GT000001	$16.91	-
6500	LR025299	TAPPET - VALVE	LR025299 TAPPET - VALVE 3.725MM / From: GT000001	$17.06	-
6505	LR030370	VALVE - EXHAUST	LR030370 VALVE - EXHAUST From: GT000001	$30.34	8
6507	LR025301	VALVE - INLET	LR025301 VALVE - INLET From: GT000001	$94.71	8
6513	LR031531	SPRING - VALVE	LR031531 SPRING - VALVE From: GT000001	$6.77	16
6514	LR025012	RETAINER - VALVE SPRING	LR025012 RETAINER - VALVE SPRING From: GT000001	$1.67	16
6518	LR008878	COLLET - VALVE SPRING RETAINER IN STOCK	LR008878 COLLET - VALVE SPRING RETAINER From: GT000001 IN STOCK	$1.30	32
6571A	LR025006	SEAL - VALVE STEM	LR025006 SEAL - VALVE STEM Exhaust / From: GT000001	$6.39	8
6571B	LR025018	SEAL - VALVE STEM	LR025018 SEAL - VALVE STEM Intake / From: GT000001	$5.05	8

Cylinder Head (2.0L 16V Tivct T/C 240Ps Petrol, Itatiaia (Brazil)) ((V) Fromgt000001)

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Cylinder Head (2.0L 16V TIVCT T/C 240PS Petrol, Itatiaia (Brazil)) ((V) FROMGT000001)
