Cylinder Head (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS Petrol) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

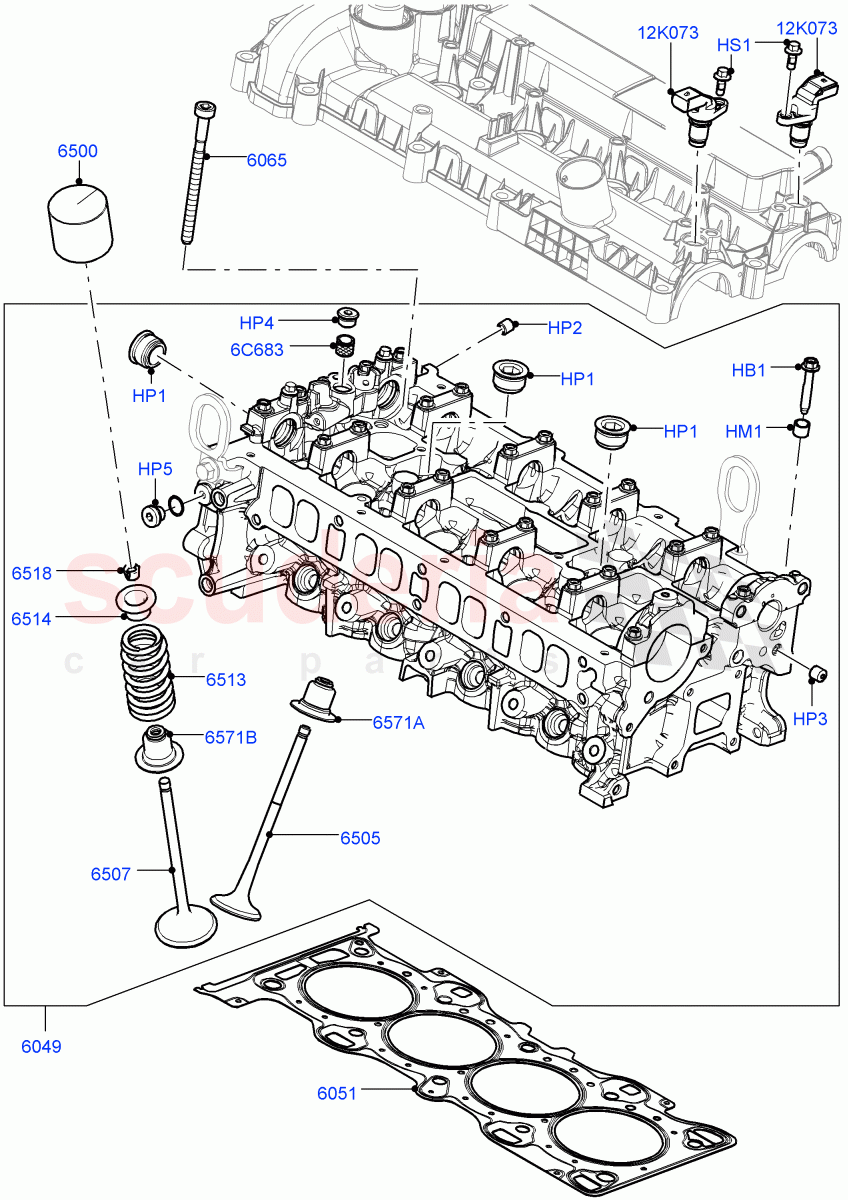

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Cylinder Head (2.0L 16V TIVCT T/C Gen2 Petrol, Halewood (UK), 2.0L 16V TIVCT T/C 240PS Petrol)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR025391	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025383	BUSH - REDUCING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025389	PLUG - WATER JACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003600	RIVET - BLIND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000498	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025655	PLUG - THREADED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025394	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004349	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR028243	CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024975	GASKET - CYLINDER HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025253	BOLT - HEX.HEAD	Enquire	To Order
	LR097980	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025265	TAPPET - VALVE	Enquire	To Order
	LR025266	TAPPET - VALVE	Enquire	To Order
	LR025267	TAPPET - VALVE	Enquire	To Order

...and 32 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR030370	VALVE - EXHAUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025301	VALVE - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031531	SPRING - VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025012	RETAINER - VALVE SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR008878	COLLET - VALVE SPRING RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025006	SEAL - VALVE STEM	Enquire	To Order
	LR116445	SEAL - VALVE STEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025018	SEAL - VALVE STEM	Enquire	To Order
	LR116446	SEAL - VALVE STEM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025304	FILTER OIL - CAMSHAFT SPROCKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR084884	SENSOR - CAMSHAFT POSITION	Enquire	To Order
	LR057343	SENSOR - CAMSHAFT POSITION	Enquire	To Order
	LR079620	SENSOR - CAMSHAFT POSITION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR025391	BOLT	LR025391 BOLT M7 X 39MM	-	24	Enquire
HM1	LR025383	BUSH - REDUCING	LR025383 BUSH - REDUCING Bush 7.4 X 9.05 X 7.75	-	4	Enquire
HP1	LR025389	PLUG - WATER JACKET	LR025389 PLUG - WATER JACKET M27 x 1.5MM	-	3	Enquire
HP2	LR003600	RIVET - BLIND	LR003600 RIVET - BLIND Blanking,	-	1	Enquire
HP3	LR000498	PLUG - BLANKING	LR000498 PLUG - BLANKING Blanking,	-	1	Enquire
HP4	LR025655	PLUG - THREADED	LR025655 PLUG - THREADED VCT Filter	-	1	Enquire
HP5	LR025394	PLUG - BLANKING	LR025394 PLUG - BLANKING Blanking, M12 X 1.5MM	-	1	Enquire
HS1	LR004349	BOLT	LR004349 BOLT M6 X 16MM	-	2	Enquire
6C683	LR025304	FILTER OIL - CAMSHAFT SPROCKET	LR025304 FILTER OIL - CAMSHAFT SPROCKET VCT Filter	-	1	Enquire
12K073	LR084884	SENSOR - CAMSHAFT POSITION	LR084884 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / To: DH999999	-	2	Enquire
12K073	LR057343	SENSOR - CAMSHAFT POSITION	LR057343 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / From: EH000001 / To: EH889278	-	2	Enquire
12K073	LR079620	SENSOR - CAMSHAFT POSITION	LR079620 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / From: EH889279 / To: FH984286	-	2	Enquire
12K073	LR084884	SENSOR - CAMSHAFT POSITION	LR084884 SENSOR - CAMSHAFT POSITION Camshaft Position Sensor / From: FH984287	-	2	Enquire
6049	LR028243	CYLINDER HEAD	LR028243 CYLINDER HEAD For Vehicles With Engine Serial Up To 071111153004 -DD/MM/YY/Hrs/Min/Sec- Order New Fuel Pump Housing LR033985	-	1	Enquire
6051	LR024975	GASKET - CYLINDER HEAD	LR024975 GASKET - CYLINDER HEAD	-	1	Enquire
6065	LR025253	BOLT - HEX.HEAD	LR025253 BOLT - HEX.HEAD To: CH999999	-	10	Enquire
6065	LR097980	BOLT - HEX.HEAD	LR097980 BOLT - HEX.HEAD From: DH000001	-	10	Enquire
6500	LR025265	TAPPET - VALVE	LR025265 TAPPET - VALVE 3MM	-	-	Enquire
6500	LR025266	TAPPET - VALVE	LR025266 TAPPET - VALVE 3.025MM	-	-	Enquire
6500	LR025267	TAPPET - VALVE	LR025267 TAPPET - VALVE 3.050MM	-	-	Enquire
6500	LR025268	TAPPET - VALVE	LR025268 TAPPET - VALVE 3.075MM	-	-	Enquire
6500	LR025269	TAPPET - VALVE	LR025269 TAPPET - VALVE 3.100MM	-	-	Enquire
6500	LR025270	TAPPET - VALVE	LR025270 TAPPET - VALVE 3.122MM	-	-	Enquire
6500	LR025271	TAPPET - VALVE	LR025271 TAPPET - VALVE 3.142MM	-	-	Enquire
6500	LR025272	TAPPET - VALVE	LR025272 TAPPET - VALVE 3.162MM	-	-	Enquire
6500	LR025273	TAPPET - VALVE	LR025273 TAPPET - VALVE 3.182MM	-	-	Enquire
6500	LR025274	TAPPET - VALVE	LR025274 TAPPET - VALVE 3.202MM	-	-	Enquire
6500	LR025275	TAPPET - VALVE	LR025275 TAPPET - VALVE 3.222MM	-	-	Enquire
6500	LR025276	TAPPET - VALVE	LR025276 TAPPET - VALVE 3.242MM	-	-	Enquire
6500	LR025277	TAPPET - VALVE	LR025277 TAPPET - VALVE 3.262MM	-	-	Enquire
6500	LR025278	TAPPET - VALVE	LR025278 TAPPET - VALVE 3.282MM	-	-	Enquire
6500	LR025279	TAPPET - VALVE	LR025279 TAPPET - VALVE 3.302MM	-	-	Enquire
6500	LR025280	TAPPET - VALVE	LR025280 TAPPET - VALVE 3.322MM	-	-	Enquire
6500	LR025281	TAPPET - VALVE	LR025281 TAPPET - VALVE 3.342MM	-	-	Enquire
6500	LR025282	TAPPET - VALVE	LR025282 TAPPET - VALVE 3.362MM	-	-	Enquire
6500	LR025283	TAPPET - VALVE	LR025283 TAPPET - VALVE 3.382MM	-	-	Enquire
6500	LR025284	TAPPET - VALVE	LR025284 TAPPET - VALVE 3.402MM	-	-	Enquire
6500	LR025285	TAPPET - VALVE	LR025285 TAPPET - VALVE 3.422MM	-	-	Enquire
6500	LR025286	TAPPET - VALVE	LR025286 TAPPET - VALVE 3.442MM	-	-	Enquire
6500	LR025287	TAPPET - VALVE	LR025287 TAPPET - VALVE 3.462MM	-	-	Enquire
6500	LR025288	TAPPET - VALVE	LR025288 TAPPET - VALVE 3.482MM	-	-	Enquire
6500	LR025289	TAPPET - VALVE	LR025289 TAPPET - VALVE 3.502MM	-	-	Enquire
6500	LR025290	TAPPET - VALVE	LR025290 TAPPET - VALVE 3.522MM	-	-	Enquire
6500	LR025291	TAPPET - VALVE	LR025291 TAPPET - VALVE 3.542MM	-	-	Enquire
6500	LR025292	TAPPET - VALVE	LR025292 TAPPET - VALVE 3.562MM	-	-	Enquire
6500	LR025293	TAPPET - VALVE	LR025293 TAPPET - VALVE 3.582MM	-	-	Enquire
6500	LR025294	TAPPET - VALVE	LR025294 TAPPET - VALVE 3.602MM	-	-	Enquire
6500	LR025295	TAPPET - VALVE	LR025295 TAPPET - VALVE 3.625MM	-	-	Enquire
6500	LR025296	TAPPET - VALVE	LR025296 TAPPET - VALVE 3.65MM	-	-	Enquire
6500	LR025297	TAPPET - VALVE	LR025297 TAPPET - VALVE 3.675MM	-	-	Enquire
6500	LR025298	TAPPET - VALVE	LR025298 TAPPET - VALVE 3.70MM	-	-	Enquire
6500	LR025299	TAPPET - VALVE	LR025299 TAPPET - VALVE 3.725MM	-	-	Enquire
6505	LR030370	VALVE - EXHAUST	LR030370 VALVE - EXHAUST	-	8	Enquire
6507	LR025301	VALVE - INLET	LR025301 VALVE - INLET	-	8	Enquire
6513	LR031531	SPRING - VALVE	LR031531 SPRING - VALVE	-	16	Enquire
6514	LR025012	RETAINER - VALVE SPRING	LR025012 RETAINER - VALVE SPRING	-	16	Enquire
6518	LR008878	COLLET - VALVE SPRING RETAINER	LR008878 COLLET - VALVE SPRING RETAINER	-	32	Enquire
6571A	LR025006	SEAL - VALVE STEM	LR025006 SEAL - VALVE STEM Exhaust / To: JH303984	-	8	Enquire
6571A	LR116445	SEAL - VALVE STEM	LR116445 SEAL - VALVE STEM Exhaust / From: JH303985	-	8	Enquire
6571B	LR025018	SEAL - VALVE STEM	LR025018 SEAL - VALVE STEM Intake / To: JH303984	-	8	Enquire
6571B	LR116446	SEAL - VALVE STEM	LR116446 SEAL - VALVE STEM Intake / From: JH303985	-	8	Enquire
