Inlet Manifold (2.0L 16V TIVCT T/C Gen2 Petrol) ((V) FROMEH000001) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Inlet Manifold (2.0L 16V TIVCT T/C Gen2 Petrol) ((V) FROMEH000001)

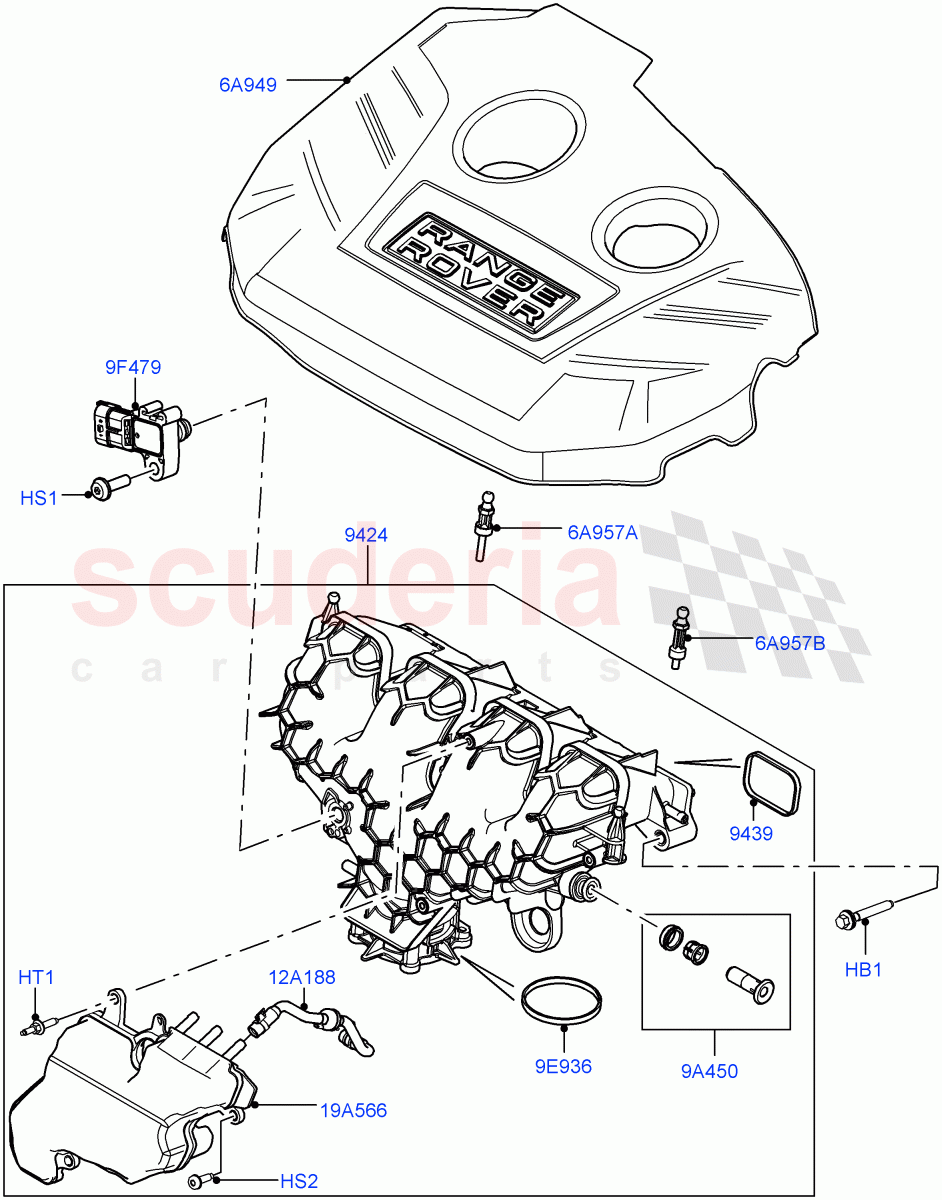

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR048504	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022159	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049871	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049870	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049640	MANIFOLD - INLET	Enquire	To Order
	LR077856	MANIFOLD - INLET	Enquire	To Order
	LR083482	MANIFOLD - INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057234	GASKET - INTAKE MANIFOLD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR039602	COVER - ENGINE TOP	Enquire	To Order
	LR039520	COVER - ENGINE TOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052965	KIT - INTAKE PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR040241	GASKET - THROTTLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR038762	SENSOR - MANIFOLD ABSOLUTE PRESSURE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR050520	HOSE - VACUUM CONNECTING	Enquire	To Order
	LR049643	HOSE - VACUUM CONNECTING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049651	RESERVOIR - VACUUM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025918	STUD - ENGINE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025916	STUD - ENGINE COVER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
HB1	LR048504	BOLT	LR048504 BOLT M8 x 55MM, Manifold To Cylinder Head / From: EH000001	-	5	Enquire
HS1	LR022159	SCREW	LR022159 SCREW M6 x 25MM, MAP Sensor / From: EH000001	-	1	Enquire
HS2	LR049871	SCREW	LR049871 SCREW M6 X 20MM / From: EH000001	-	2	Enquire
HT1	LR049870	STUD	LR049870 STUD M5 X 12MM, M6 X 20MM, Reservoir / From: EH000001	-	1	Enquire
6A949	LR039602	COVER - ENGINE TOP	LR039602 COVER - ENGINE TOP Engine, Range Rover Logo, Top / From: EH000001 / To: EH999999	-	1	Enquire
6A949	LR039520	COVER - ENGINE TOP	LR039520 COVER - ENGINE TOP Engine, Land Rover Logo, Top / From: FH000001	-	1	Enquire
6A957A	LR025918	STUD - ENGINE COVER	LR025918 STUD - ENGINE COVER RH, Upper Engine Cover Support / From: EH000001	-	1	Enquire
6A957B	LR025916	STUD - ENGINE COVER	LR025916 STUD - ENGINE COVER LH, Upper Engine Cover Support / From: EH000001	-	1	Enquire
9A450	LR052965	KIT - INTAKE PLUG	LR052965 KIT - INTAKE PLUG From: EH000001	-	1	Enquire
9E936	LR040241	GASKET - THROTTLE	LR040241 GASKET - THROTTLE Throttle Body To Intake / From: EH000001	-	1	Enquire
9F479	LR038762	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR038762 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: EH000001	-	1	Enquire
12A188	LR050520	HOSE - VACUUM CONNECTING	LR050520 HOSE - VACUUM CONNECTING Vacuum Reservoir Connection / From: EH000001 / To: EH100001	-	1	Enquire
12A188	LR049643	HOSE - VACUUM CONNECTING	LR049643 HOSE - VACUUM CONNECTING Vacuum Reservoir Connection / From: EH100002	-	1	Enquire
19A566	LR049651	RESERVOIR - VACUUM	LR049651 RESERVOIR - VACUUM From: EH000001	-	1	Enquire
9424	LR049640	MANIFOLD - INLET	LR049640 MANIFOLD - INLET From: EH000001 / To: EH856720	-	1	Enquire
9424	LR077856	MANIFOLD - INLET	LR077856 MANIFOLD - INLET From: EH856721 / To: GH090049	-	1	Enquire
9424	LR083482	MANIFOLD - INLET	LR083482 MANIFOLD - INLET From: GH090050	-	1	Enquire
9439	LR057234	GASKET - INTAKE MANIFOLD	LR057234 GASKET - INTAKE MANIFOLD Manifold To Cylinder Head / From: EH000001	-	4	Enquire
