Name: Inlet Manifold (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK))
Rating: 4.6 (1 reviews)

Inlet Manifold (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK)) of Land Rover Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI]

View All

Land Rover Range Rover Evoque (2012-2018) [2.0 Turbo Petrol GTDI] - Inlet Manifold (2.0L 16V TIVCT T/C 240PS Petrol, Halewood (UK))

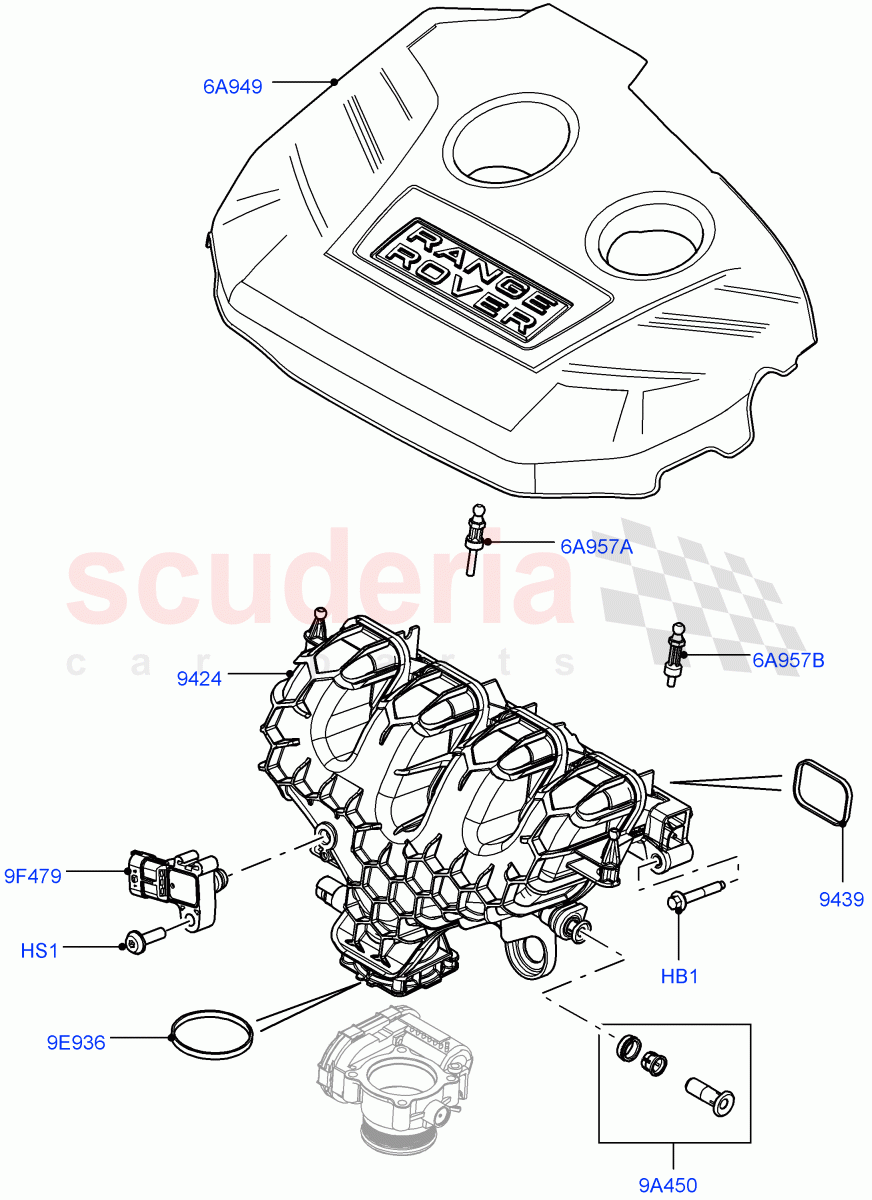

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	4567977	BOLT	$3.74	To Order
	LR048504	BOLT	$3.59	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022159	SCREW	$3.03	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025405	MANIFOLD - INLET	$601.01	To Order
	LR055363	MANIFOLD - INLET	$776.19	To Order
	LR088577	INLET MANIFOLD WITH INTERCOOLER	$797.07	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057234	GASKET - INTAKE MANIFOLD	$10.55	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	LR039602	COVER - ENGINE TOP	$139.19	To Order
	LR039602	COVER - ENGINE TOP	$139.19	To Order
	LR039520	COVER - ENGINE TOP	$139.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR052965	KIT - INTAKE PLUG	$9.02	To Order

Photo	Part No	Description	Price (each)	Stock
	LR024989	GASKET - THROTTLE	$16.46	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022157	SENSOR - MANIFOLD ABSOLUTE PRESSURE	$68.15	To Order
	LR038762	SENSOR - MANIFOLD ABSOLUTE PRESSURE	$63.48	To Order
	LR075167	SENSOR - MANIFOLD ABSOLUTE PRESSURE	$133.93	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025918	STUD - ENGINE COVER	$6.51	To Order

Photo	Part No	Description	Price (each)	Stock
	LR025916	STUD - ENGINE COVER	$6.69	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
HB1	4567977	BOLT	4567977 BOLT M8 X 50, Manifold To Cylinder Head / To: DH771326	$3.74	5
HB1	LR048504	BOLT	LR048504 BOLT M8 x 55MM, Manifold To Cylinder Head / From: DH771327	$3.59	5
HS1	LR022159	SCREW	LR022159 SCREW M6 x 25MM, MAP Sensor	$3.03	1
6A949	LR039602	COVER - ENGINE TOP	LR039602 COVER - ENGINE TOP Engine, Range Rover Logo, Top / To: CH999999	$139.19	1
6A949	LR039602	COVER - ENGINE TOP	LR039602 COVER - ENGINE TOP Engine, Range Rover Logo, Top / From: DH000001 / To: EH999999	$139.19	1
6A949	LR039520	COVER - ENGINE TOP	LR039520 COVER - ENGINE TOP Engine, Land Rover Logo, Top / From: FH000001	$139.19	1
6A957A	LR025918	STUD - ENGINE COVER	LR025918 STUD - ENGINE COVER RH, Upper Engine Cover Support	$6.51	1
6A957B	LR025916	STUD - ENGINE COVER	LR025916 STUD - ENGINE COVER LH, Upper Engine Cover Support	$6.69	1
9A450	LR052965	KIT - INTAKE PLUG	LR052965 KIT - INTAKE PLUG	$9.02	1
9E936	LR024989	GASKET - THROTTLE	LR024989 GASKET - THROTTLE Throttle Body To Intake	$16.46	1
9F479	LR022157	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR022157 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / To: CH702769	$68.15	1
9F479	LR038762	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR038762 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: CH702770 / To: EH856696	$63.48	1
9F479	LR075167	SENSOR - MANIFOLD ABSOLUTE PRESSURE	LR075167 SENSOR - MANIFOLD ABSOLUTE PRESSURE Sensor - Manifold Absolute Pressure (MAP) / From: EH856697	$133.93	1
9424	LR025405	MANIFOLD - INLET	LR025405 MANIFOLD - INLET To: FH999999	$601.01	1
9424	LR055363	MANIFOLD - INLET	LR055363 MANIFOLD - INLET From: GH000001 / To: GH093993	$776.19	1
9424	LR088577	INLET MANIFOLD WITH INTERCOOLER	LR088577 INLET MANIFOLD WITH INTERCOOLER From: GH093994	$797.07	1
9439	LR057234	GASKET - INTAKE MANIFOLD IN STOCK	LR057234 GASKET - INTAKE MANIFOLD Manifold To Cylinder Head IN STOCK	$10.55	4
